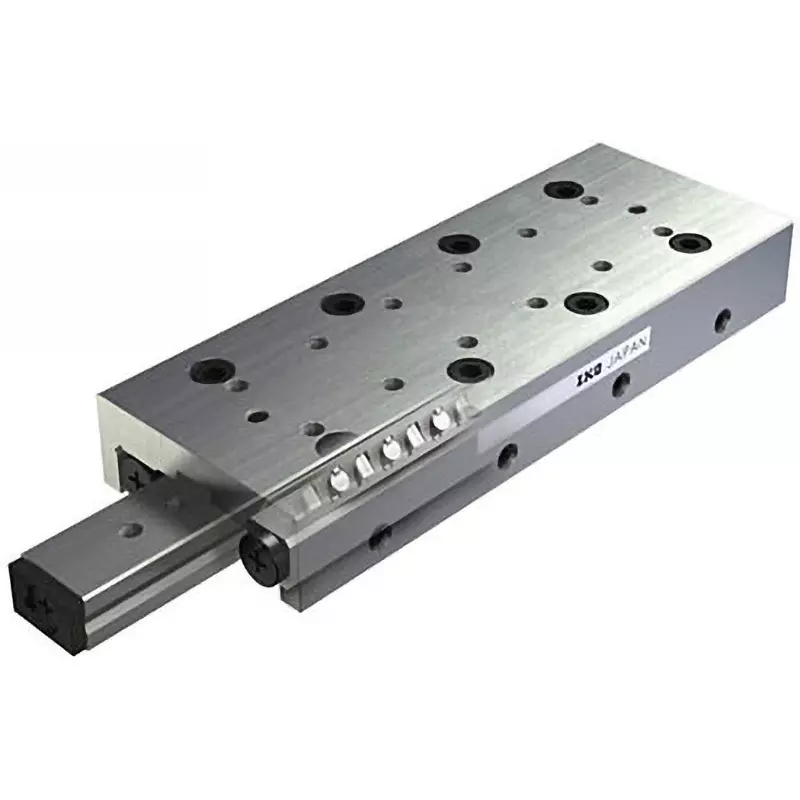

| Model No | CRWU80-325R |
| Type of Product | Cross Roller Way |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Nippon Thompson Co., Ltd. |
Model No |
CRWU80-325R |
Type of Product |
Cross Roller Way |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
Cross roller way |
Monotaro ID |
75736841 |
Import Country |
Direct Import from Japan |

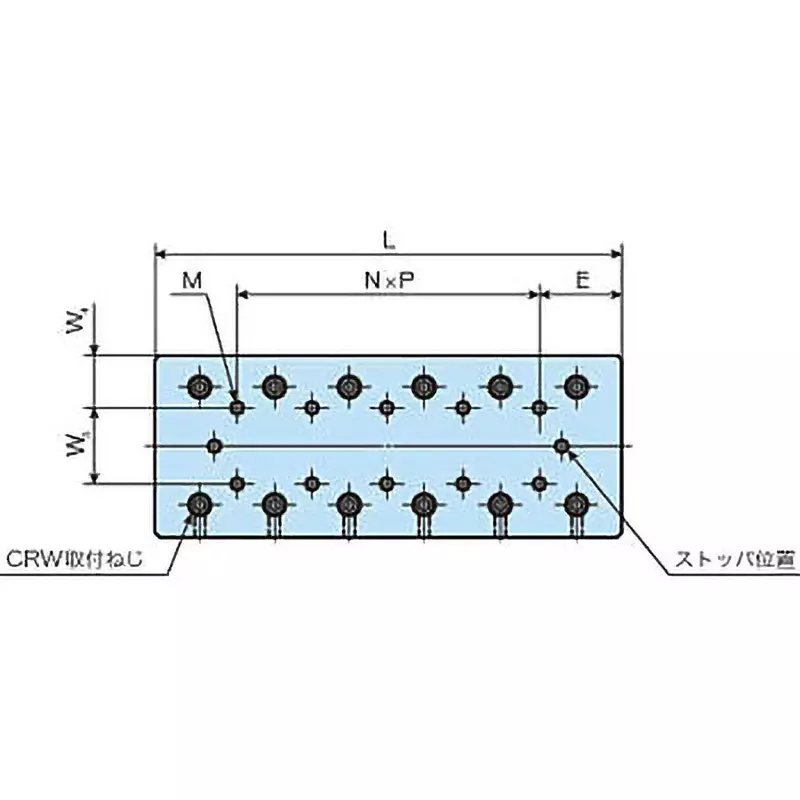

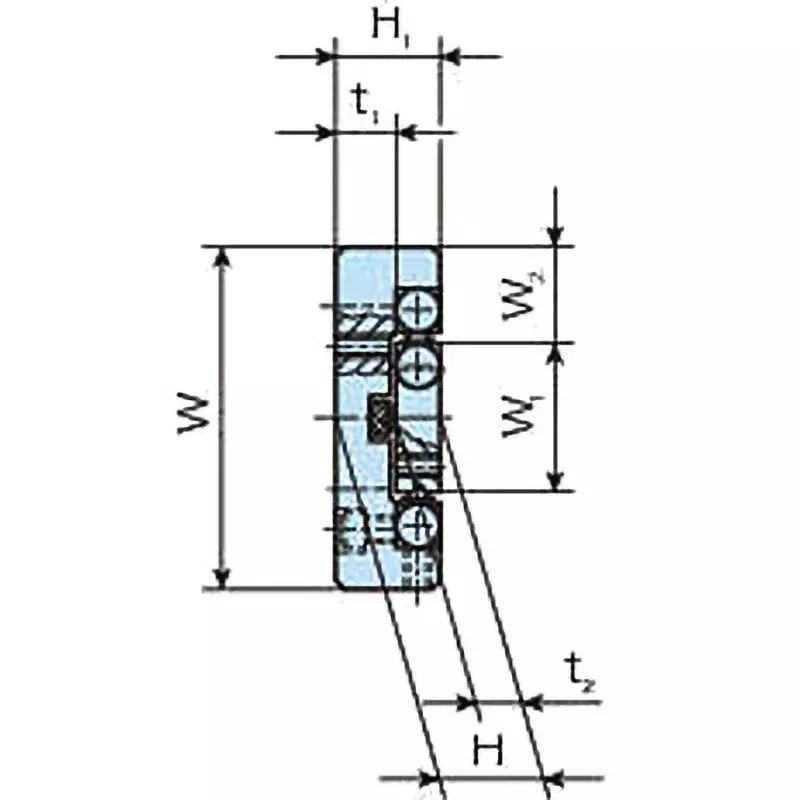

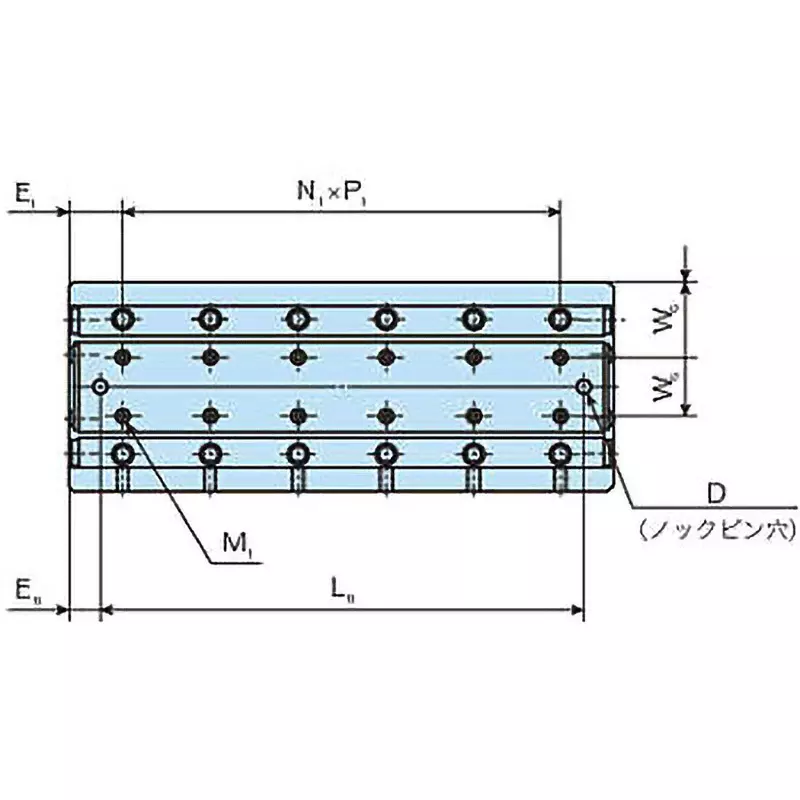

Specifications |
Static moment rating / 705 |
Dimension L (mm) |
325 |
Mass (Kg) |
4.5999999999999996 |
Maximum Strokes (mm) |
215 |
Dimensions H (mm) |
24 (Dimension difference ± 0.1) |
Dimensions D (mm) |
5 (Dimension difference 0 to +0.020) |
Dimensions E (mm) |
42.5 |
Dimension W |
80 mm (Dimension difference ± 0.1) |
Dimension W2 (mm) |
21 |
Dimension H1 |
24 |
Dimension W3 (mm) |
40 |
Basic Dynamic Load Rating (N) |
18700 |
Basic Static Load Rating (N) |
35300 |
Dimensions M (mm) |
M5 |
Dimension W1 (mm) |
38 |
Dimension E1 |
22.5 mm |
Allowable Loads |
11800 N |
Dimension M1 (mm) |
M5 |
