| Model No | CRWU40-65R |
| Type of Product | Cross Roller Way |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Nippon Thompson Co., Ltd. |
Model No |
CRWU40-65R |
Type of Product |
Cross Roller Way |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
Cross roller way |
Monotaro ID |
75737146 |
Import Country |
Direct Import from Japan |

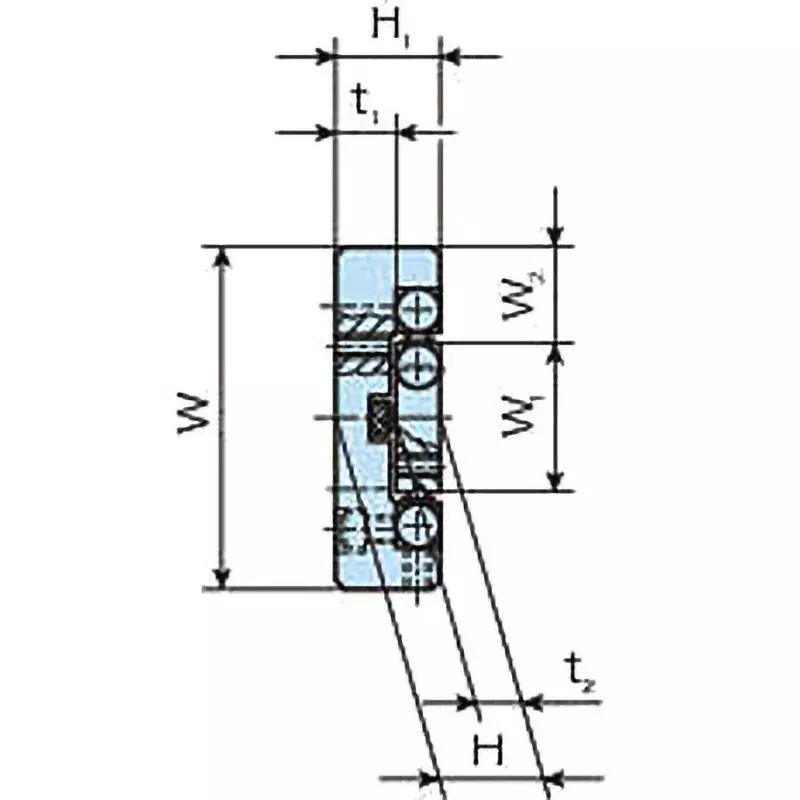

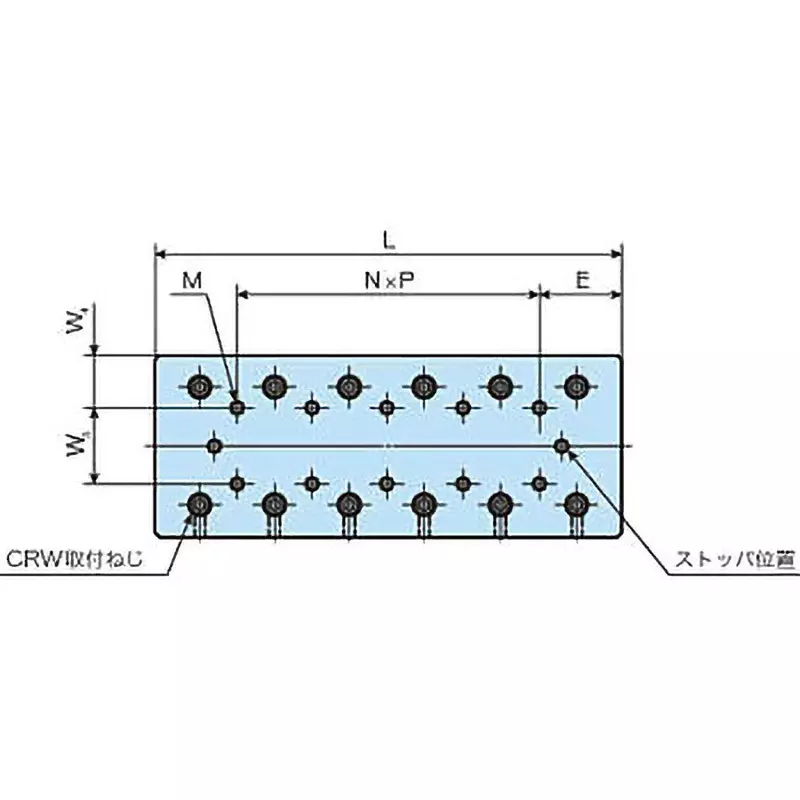

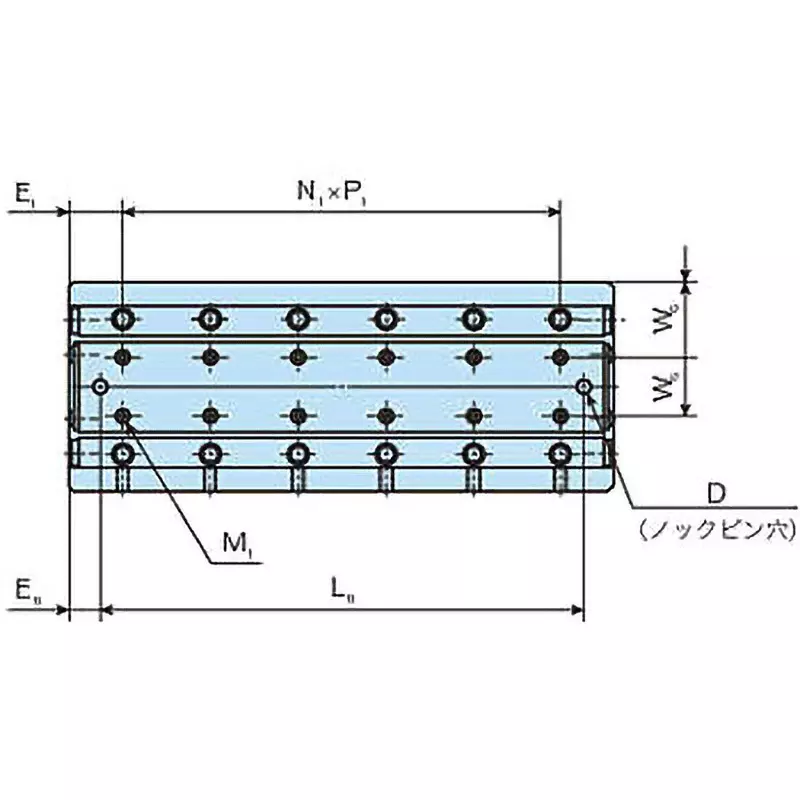

Specifications |
Static moment rating / 26.5 |
Dimension L (mm) |
65 |
Mass (Kg) |
0.26 |
Maximum Strokes (mm) |
40 |
Dimensions H (mm) |
15 (Dimension difference ± 0.1) |
Dimensions E (mm) |
17.5 |
Dimension W |
40 mm (Dimension difference ± 0.1) |
Dimension W2 (mm) |
13.45 |
Dimension H1 |
15 |
Dimension W3 (mm) |
15 |
Basic Dynamic Load Rating (N) |
2710 |
Basic Static Load Rating (N) |
3660 |
Dimensions M (mm) |
M3 |
Dimension W1 (mm) |
13.1 |
Dimension E1 |
17.5 mm |
Allowable Loads |
1220 N |
Dimension M1 (mm) |
M3 |
Dimension t1 (mm) |
7 |
