| Model No | STSI410-10-60M1 |

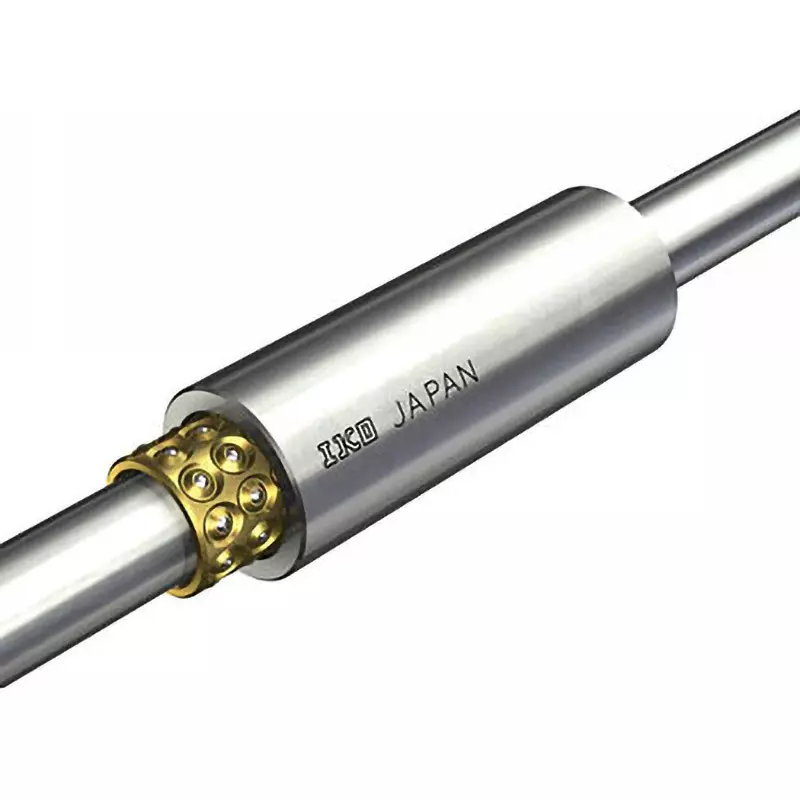

| Type of Product | Miniature Stroke STSI4 |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Nippon Thompson Co., Ltd. |
Model No |
STSI410-10-60M1 |
Type of Product |
Miniature Stroke STSI4 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
Set product |
Monotaro ID |
75746815 |
Import Country |
Direct Import from Japan |
Specifications |
With shaft |

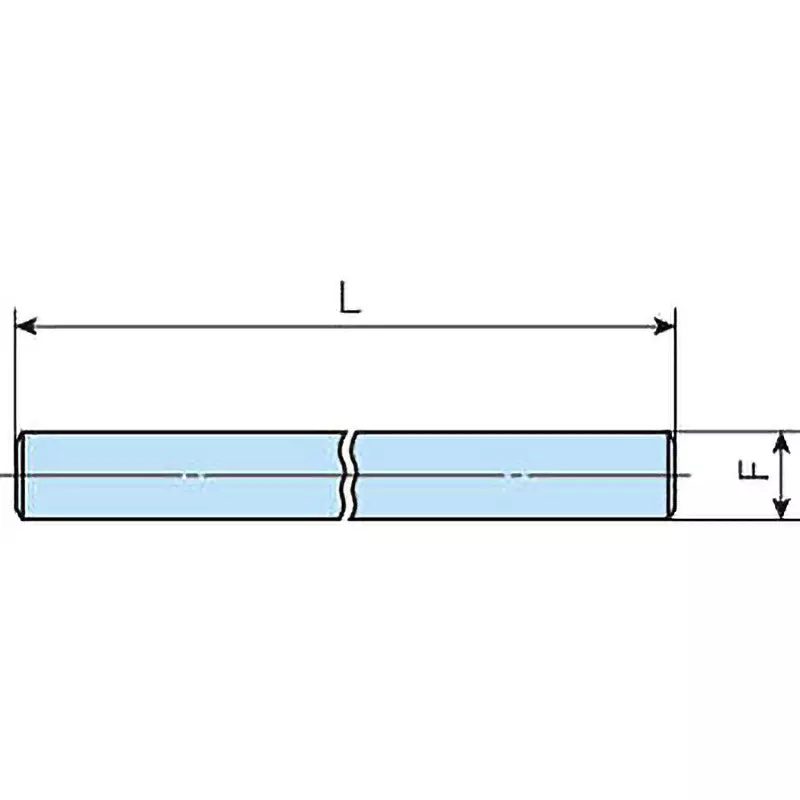

Dimension L (mm) |
60 |
Dimensions F (mm) |
4 |

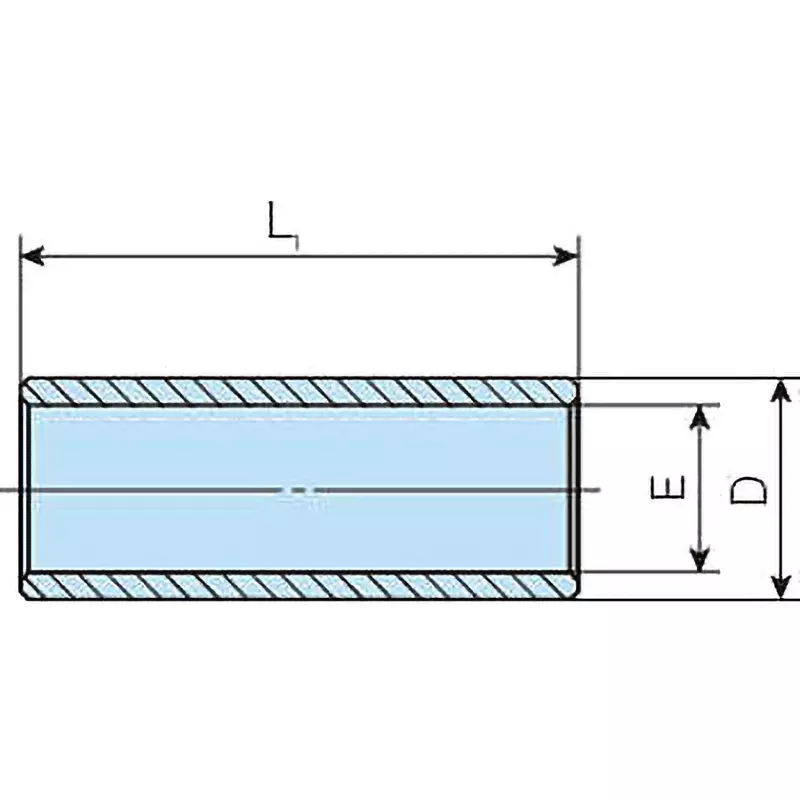

Dimensions D (mm) |
8 |
Dimensions E (mm) |
6 |
Basic Static Load Rating (N) |
59.5 |
Mass (g) |
8.5 |

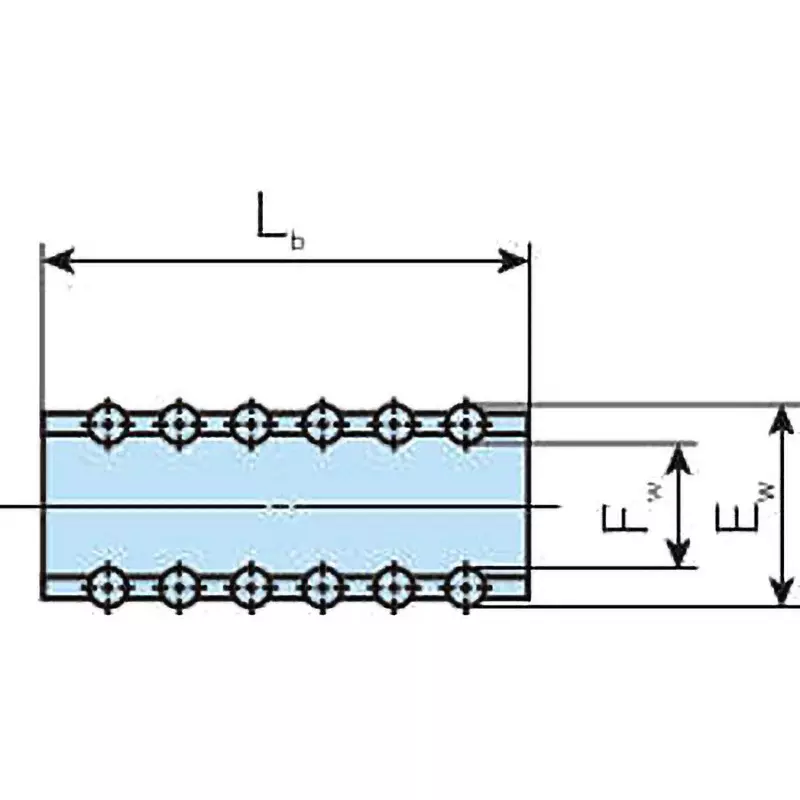

Dimension Fw (mm) |
4 |
Dimension LB (mm) |
10 |
Dimension Ew (mm) |
6 |
Outer Cylinder Outer Diameter (Φmm) |
8 |
Outer Cylinder Length (mm) |
10 |
Shaft Diameter F (Φmm) |
4 |
Shaft Length |
60 mm |
