Ships within 25 days
View
View
View
View
| Model No | STSI530-10-80M3 |

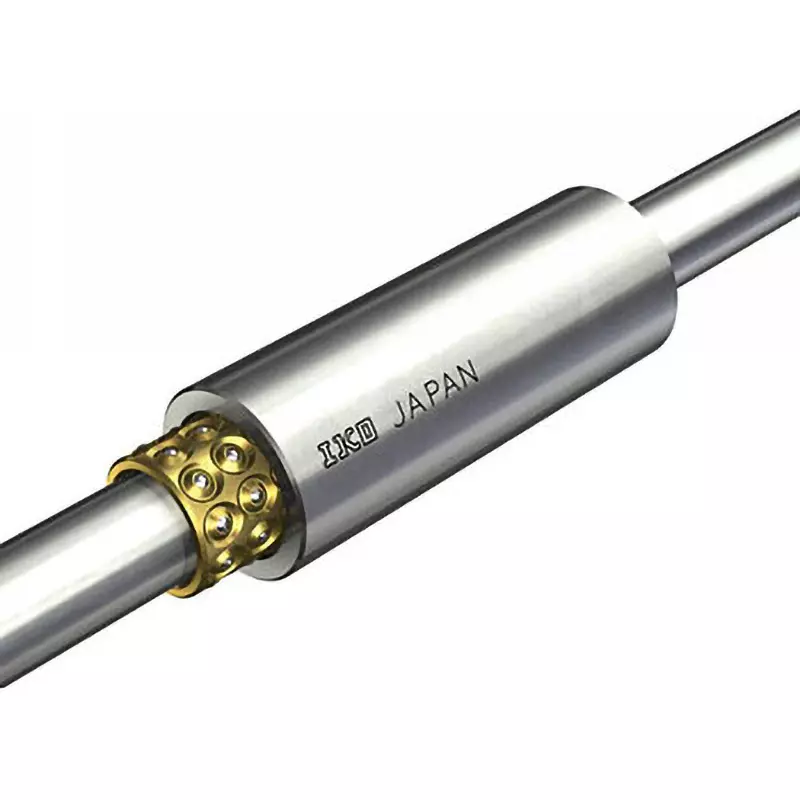

| Type of Product | Miniature Stroke STSI5 |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Nippon Thompson Co., Ltd. |
Model No |
STSI530-10-80M3 |
Type of Product |
Miniature Stroke STSI5 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
Set product |
Monotaro ID |
75746973 |
Import Country |
Direct Import from Japan |
Specifications |
With shaft |
Dimension L (mm) |
80 |
Dimensions F (mm) |
5 |
Dimensions D (mm) |
10 |
Dimensions E (mm) |
7 |
Basic Static Load Rating (N) |
81 |
Mass (g) |
22.7 |

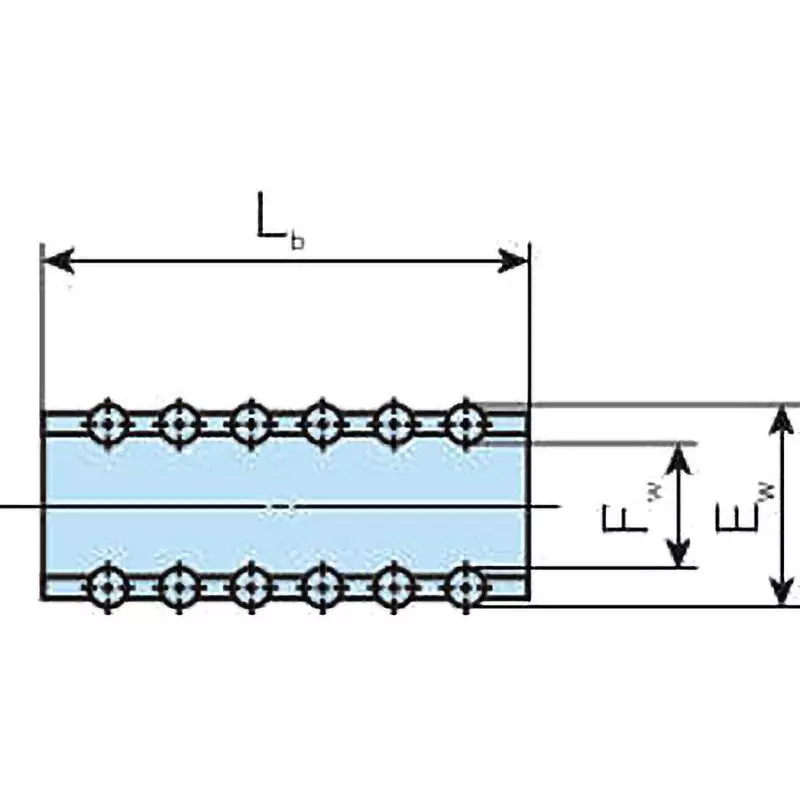

Dimension Fw (mm) |
5 |
Dimension LB (mm) |
10 |
Dimension Ew (mm) |
7 |

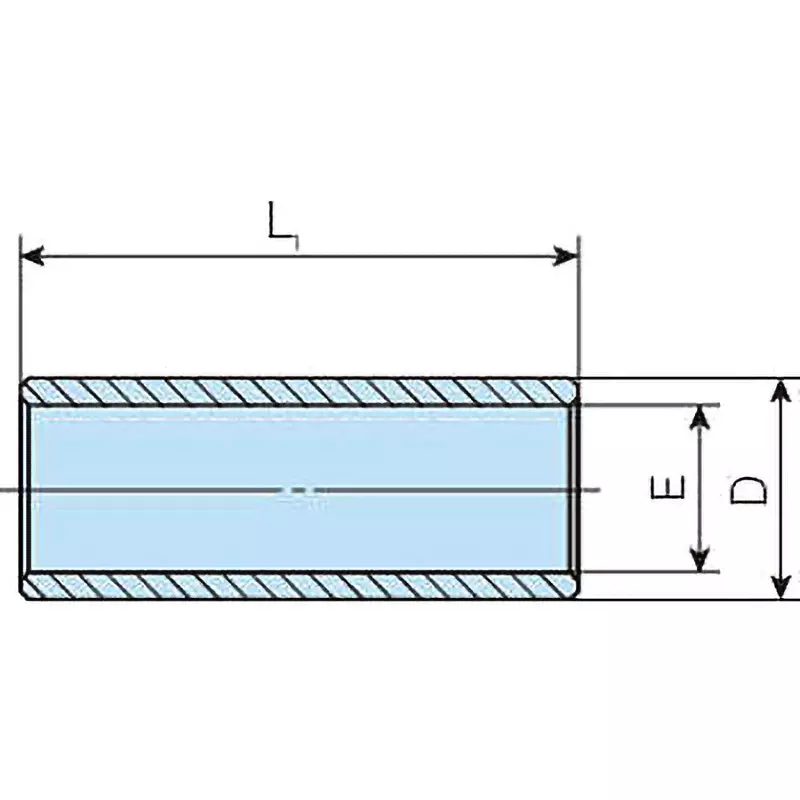

Outer Cylinder Outer Diameter (Φmm) |
10 |
Outer Cylinder Length (mm) |
30 |

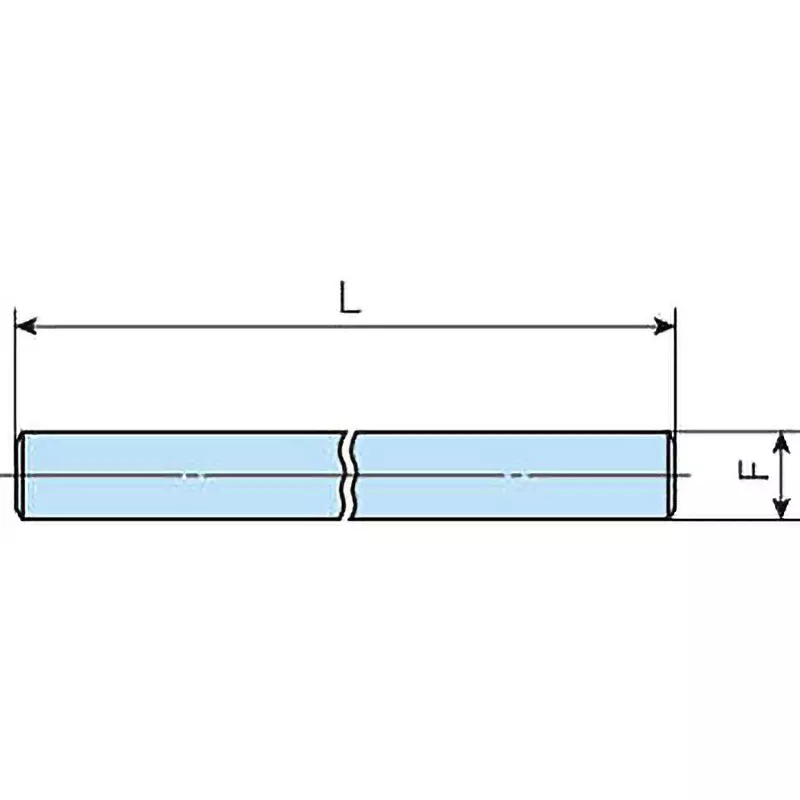

Shaft Diameter F (Φmm) |
5 |
Shaft Length |
80 mm |
