Ships within 25 days
View
View
View
View

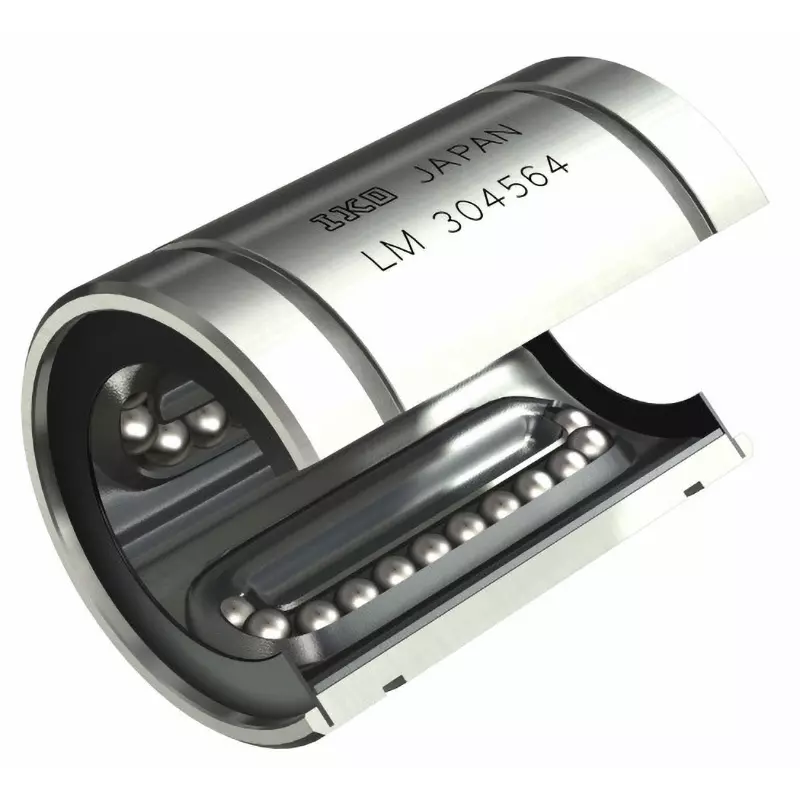

| Model No | LM132332NFOP |
| Type of Product | Linear Bushing LM-OP (Open Type) |
| Material | Stainless steel |
| Seal | Without seal |
Model No |
LM132332NFOP |
Type of Product |
Linear Bushing LM-OP (Open Type) |
Material |
Stainless steel |
Seal |
Without seal |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
LM |
Monotaro ID |
47168326 |
Import Country |
Direct Import from Japan |

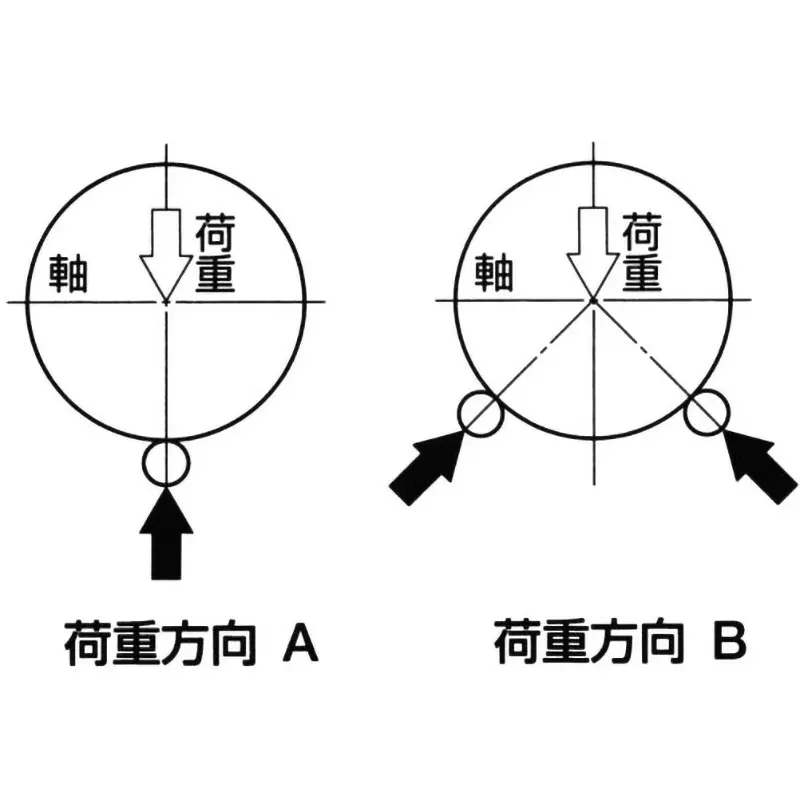

Basic static load rating Co (N) |
[Load direction A] 506, [Load direction B] 716 |
Basic dynamic load rating C (N) |
[Load direction A] 266, [Load direction B] 266 |

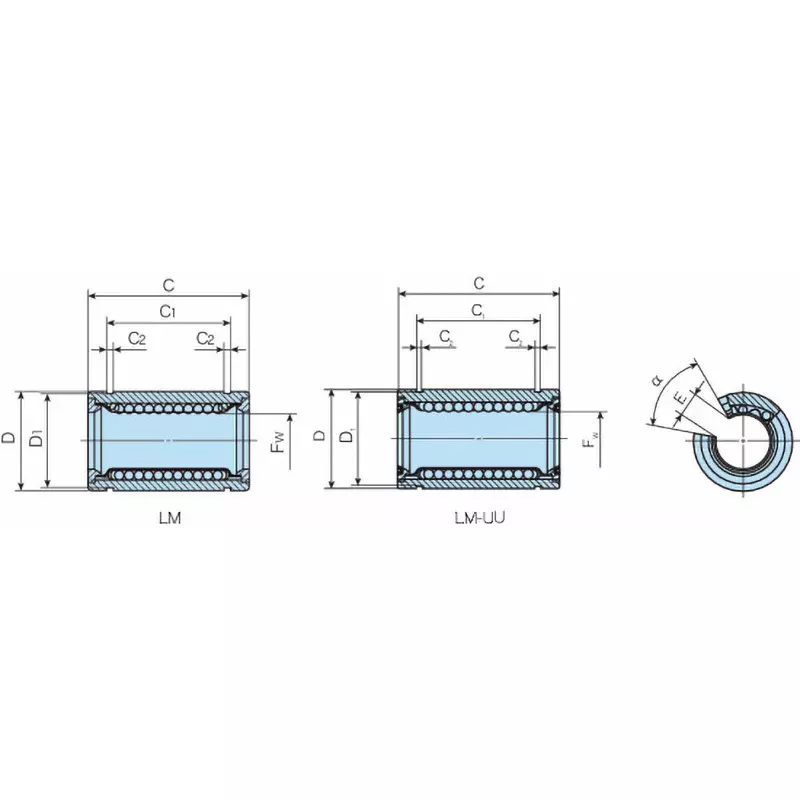

Dimensions D (mm) |
23 |
Dimensions C (mm) |
32 |
Dimensions E (mm) |
9 |
Dimension D1 (mm) |
22 |
Shape |
Open type |
Maximum Eccentricity (μm) |
12 |
Dimensional Tolerance (μm) |
(Fw) 0/-9, (D) 0/-13, (C) 0/-200, (C1) 0/-200 |
Row |
3 |
Dimension Fw (mm) |
13 |
Dimension C2 (mm) |
1.3 |
Material (Cage) |
Made of synthetic resin |
Angle α (°) |
80 |
Reference mass (g) |
34 |
Dimension C1 (mm) |
23 |
