| Model No | LM355270OP |
| Type of Product | Linear Bushing LM-OP (Open Type) |
| Material | Made of carbon steel |
| Seal | Without seal |
Model No |
LM355270OP |
Type of Product |
Linear Bushing LM-OP (Open Type) |
Material |
Made of carbon steel |
Seal |
Without seal |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
LM |
Monotaro ID |
47168782 |
Import Country |
Direct Import from Japan |

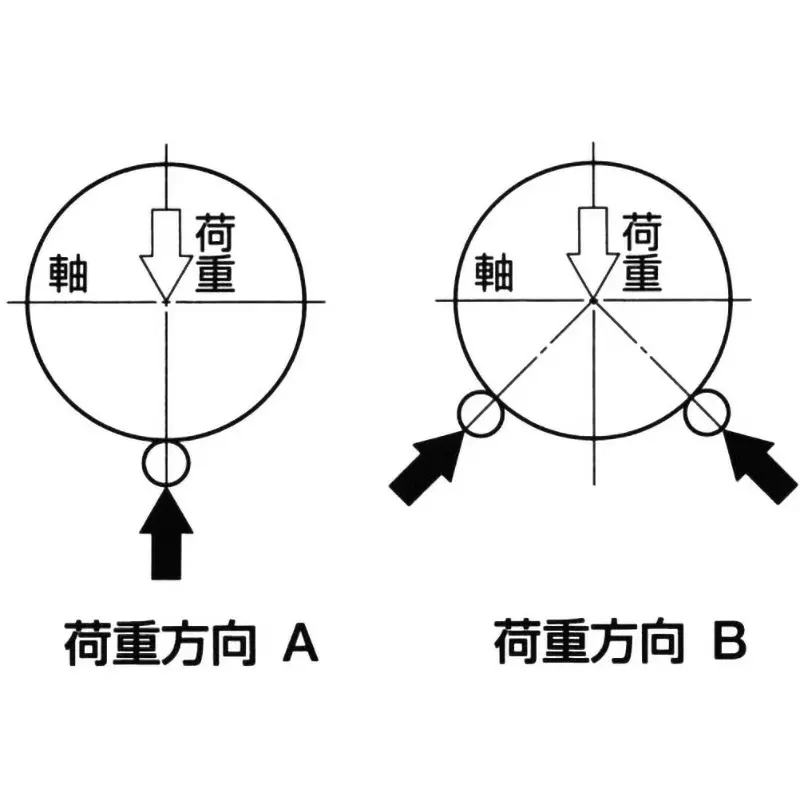

Basic static load rating Co (N) |
[Load direction A] 8150, [Load direction B] 3940 |
Basic dynamic load rating C (N) |
[Load direction A] 1610, [Load direction B] 1610 |

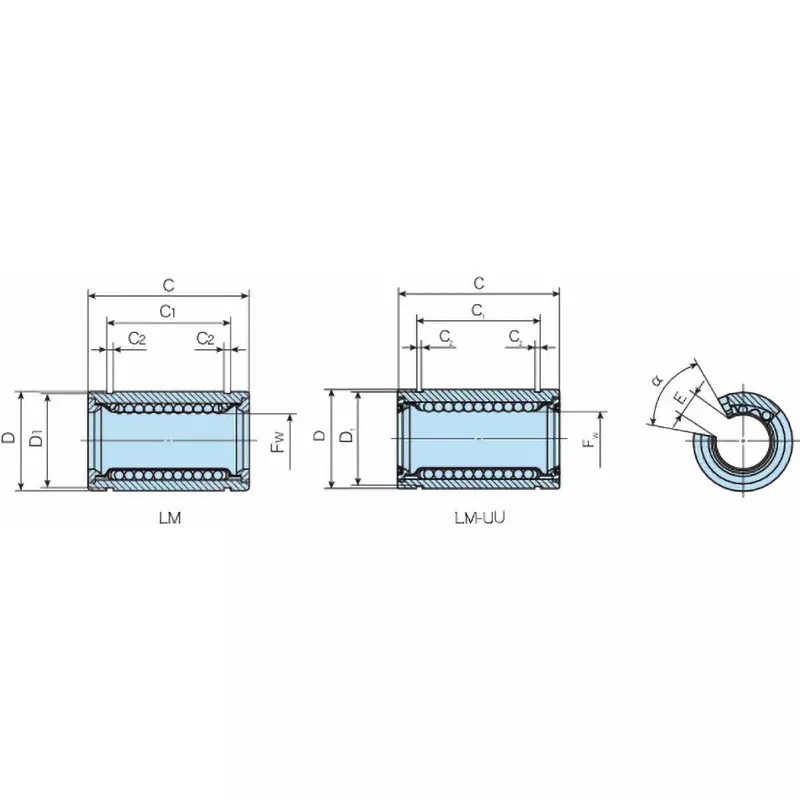

Dimensions D (mm) |
52 |
Dimensions C (mm) |
70 |
Dimensions E (mm) |
17 |
Dimension D1 (mm) |
49 |
Shape |
Open type |
Maximum Eccentricity (μm) |
20 |
Dimensional Tolerance (μm) |
(Fw) 0/-12, (D) 0/-19, (C) 0/-300, (C1) 0/-300 |
Row |
5 |
Dimension Fw (mm) |
35 |
Dimension C2 (mm) |
2.1 |
Material (Cage) |
Made of carbon steel |
Angle α (°) |
50 |
Reference mass (g) |
355 |
Dimension C1 (mm) |
49.5 |
