Ships within 25 days
View
View
View
View
| Model No | CRWUG60-105 |

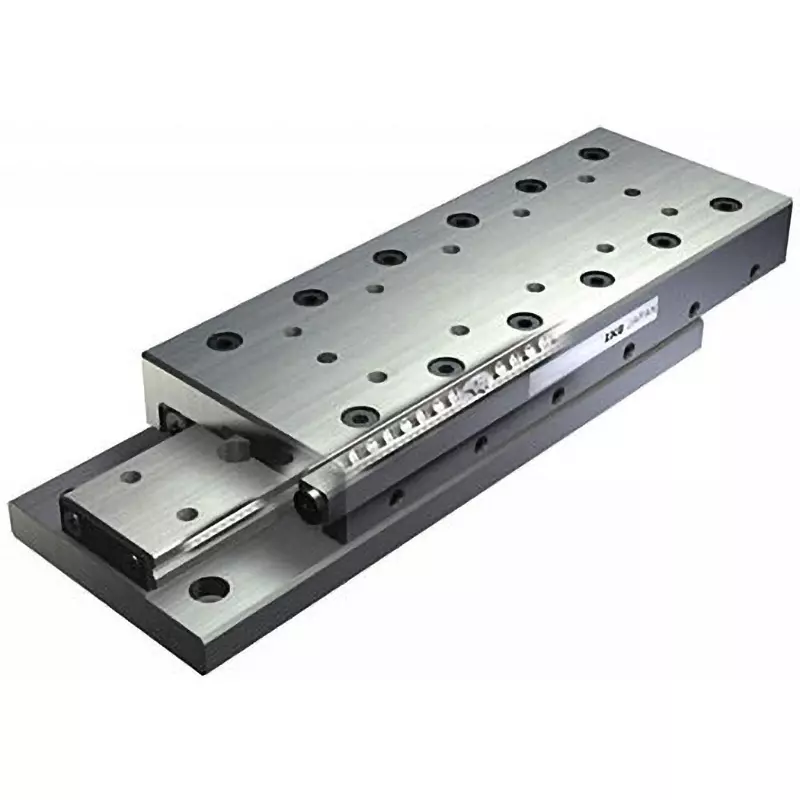

| Type of Product | Cross Roller Way |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Nippon Thompson Co., Ltd. |
Model No |
CRWUG60-105 |
Type of Product |
Cross Roller Way |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
Cross roller way |
Monotaro ID |
75736744 |
Import Country |
Direct Import from Japan |
Specifications |
Static moment rating / 70.7 |

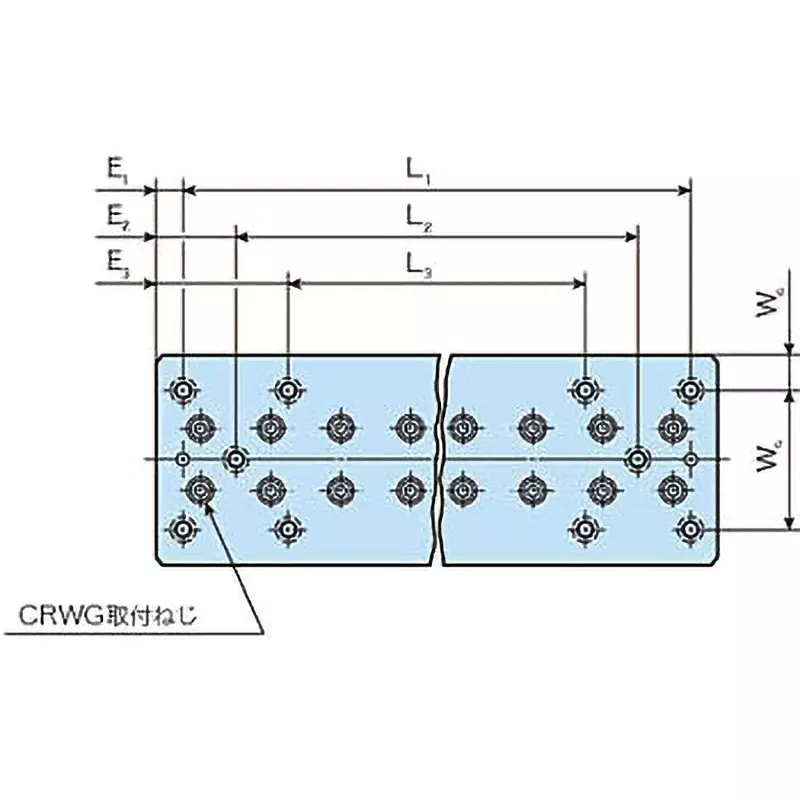

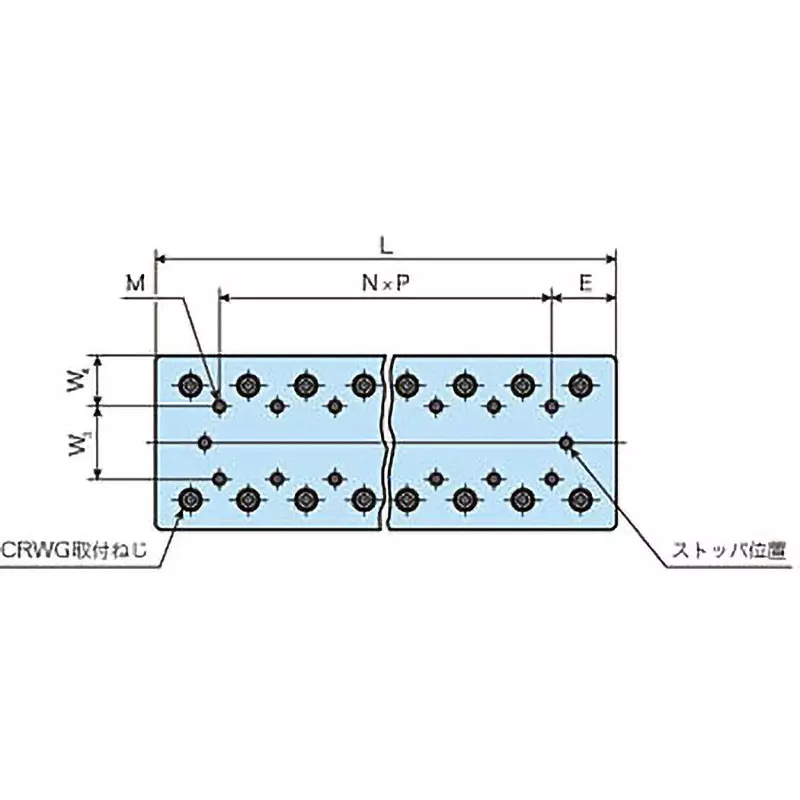

Dimension L (mm) |
105 |
Dimension L1 |
85 mm |
Mass (Kg) |
1.28 |
Maximum Strokes (mm) |
60 |

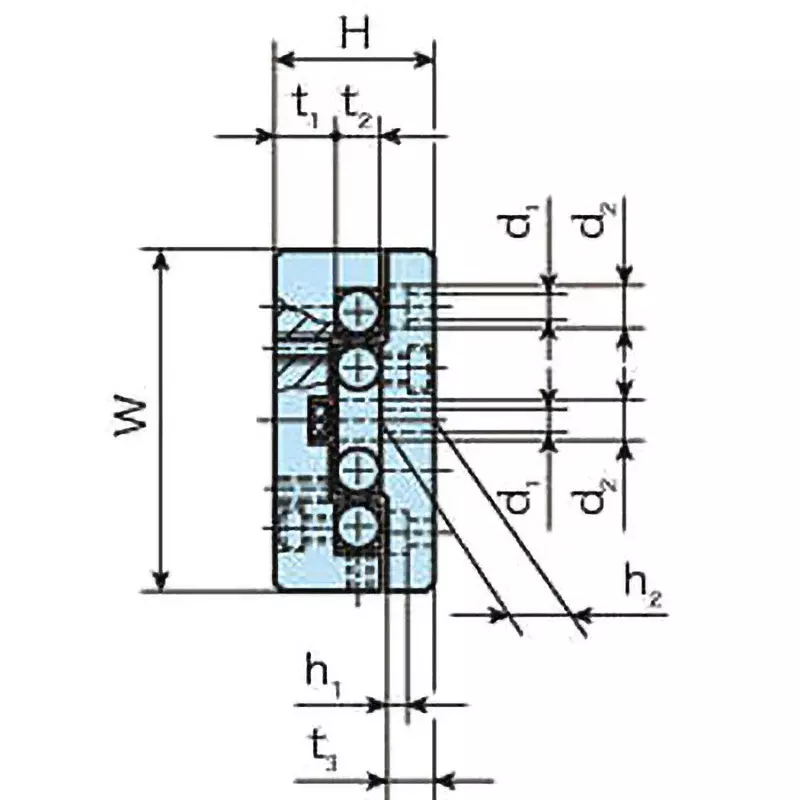

Dimensions H (mm) |
28 (Dimension difference ± 0.1) |
Dimensions E (mm) |
27.5 |
Dimension W |
60 mm (size difference ± 0.1) |
Dimension D2 (mm) |
7.5 |
Dimension D1 (mm) |
4.5 |
Dimension H1 |
4.5 |
Dimension W3 (mm) |
25 |
Basic Dynamic Load Rating (N) |
4700 |
Basic Static Load Rating (N) |
7310 |
Dimensions M (mm) |
M4 |
Dimension E1 |
10 mm |
Dimension H2 |
9.5 |
Allowable Loads |
2440 N |
