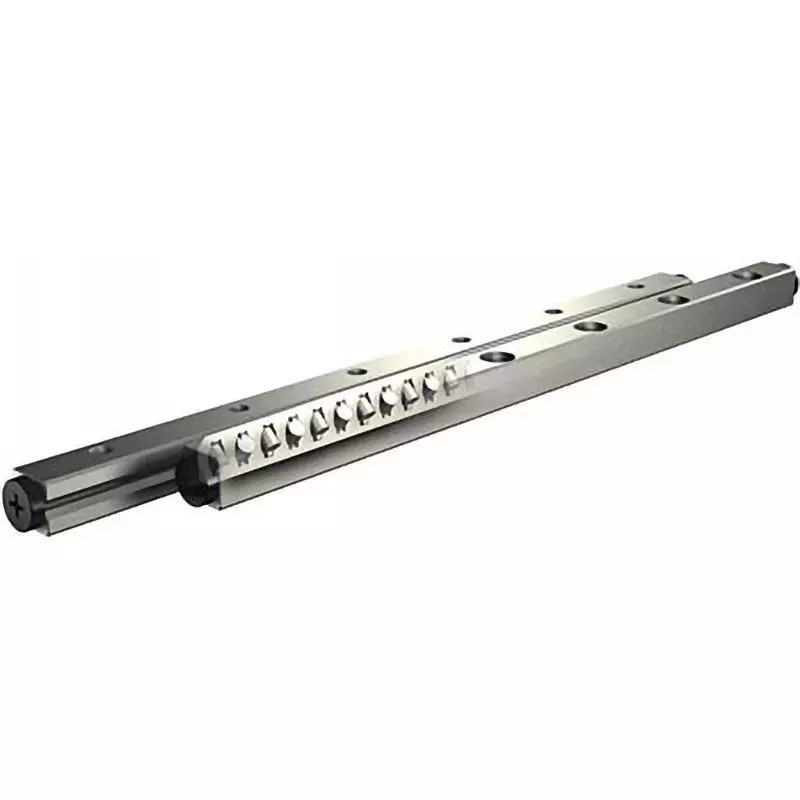

| Model No | CRW6-300 |
| Type of Product | Cross Roller Way |
| Material | Carbon steel |
| Country of Origin | Japan |
Model No |
CRW6-300 |
Type of Product |
Cross Roller Way |
Material |
Carbon steel |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
Cross roller way |
Monotaro ID |
75738433 |
Import Country |
Direct Import from Japan |

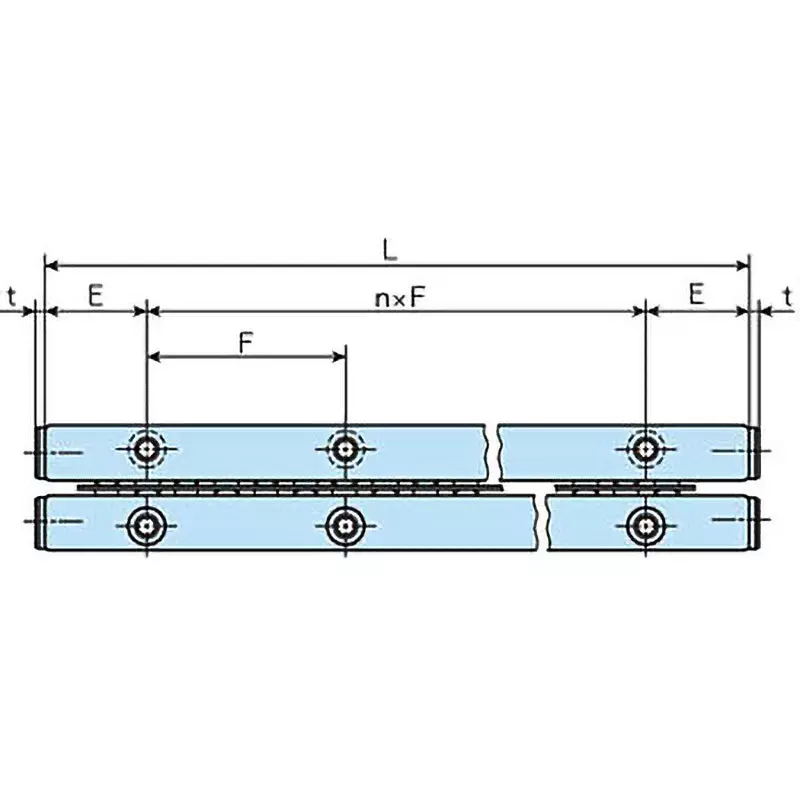

Dimension L (mm) |
400 |
Dimension T |
3 mm |
Accuracy |
Standard |
Dimensions H (mm) |
15 |
Dimensions A (mm) |
31 |
Mass (kg/m) |
Rail way / 1.57 |
Dimensions E (mm) |
25 |
Dimension W |
14 mm |

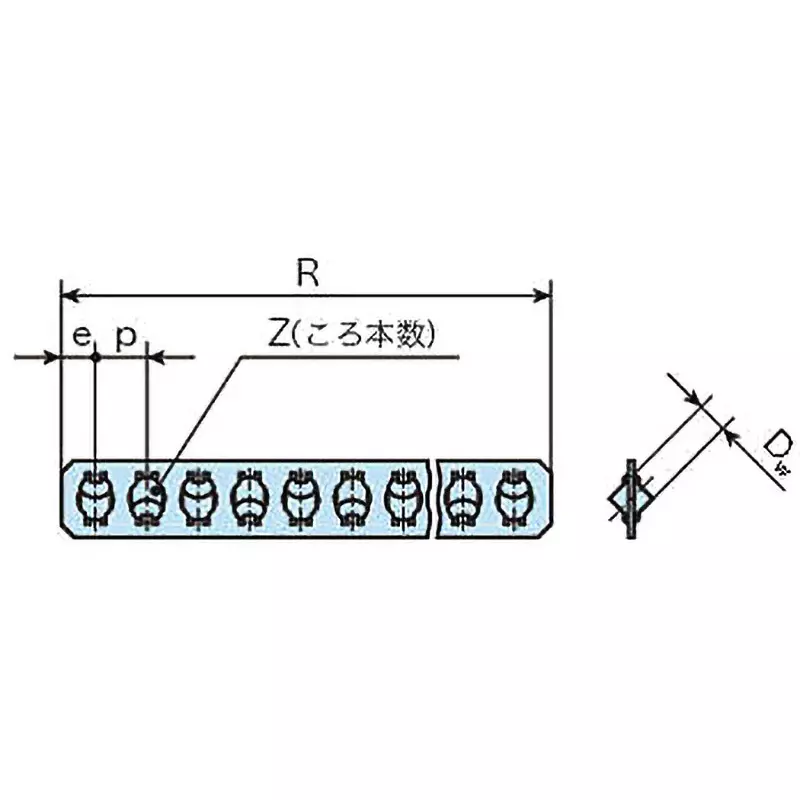

Dimension R |
246 mm |
Dimension D2 (mm) |
9.5 |
Dimension D1 (mm) |
5.3 |
Dimension Z (mm) |
27 |
Mass (g) |
Cylindrical roller with cage (1 set) /20.3 |
Dimensions M (mm) |
M6 |
Dimensions g (mm) |
6 |
