Ships within 25 days
View
View
View
View

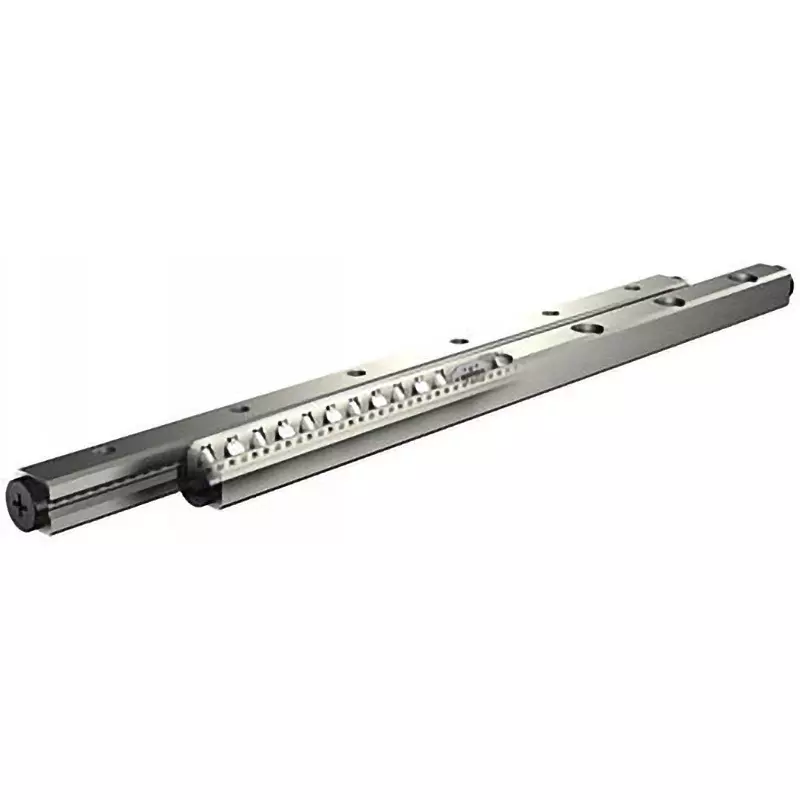

| Model No | CRWG3-150 |
| Type of Product | Cross Roller Way |
| Material | Carbon steel |
| Country of Origin | Japan |
Model No |
CRWG3-150 |
Type of Product |
Cross Roller Way |
Material |
Carbon steel |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
Cross roller way |
Monotaro ID |
75738074 |
Import Country |
Direct Import from Japan |

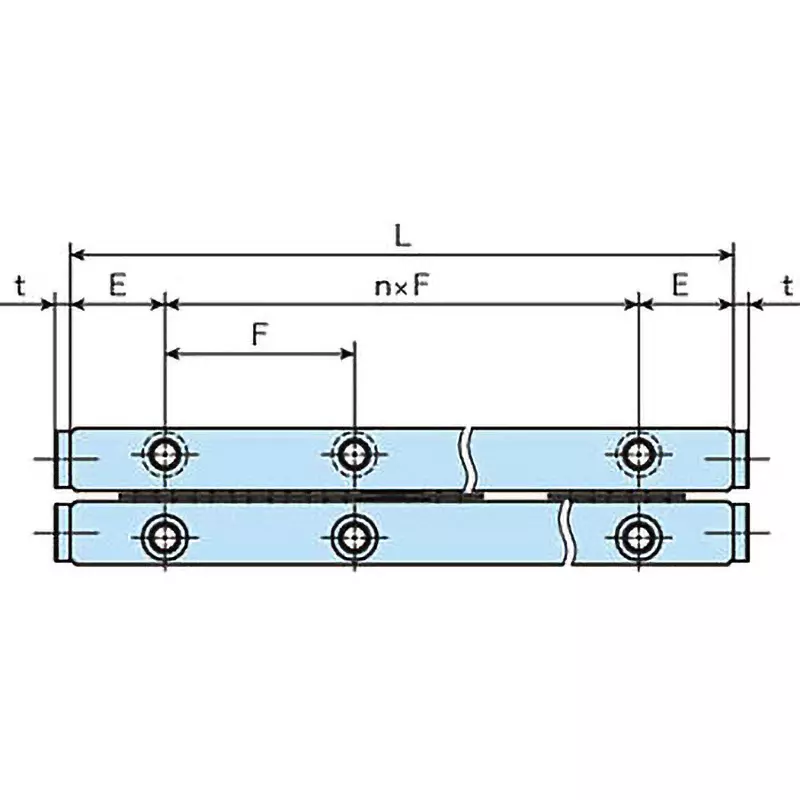

Dimension L (mm) |
150 |
Dimension T |
2 mm |
Accuracy |
Standard |

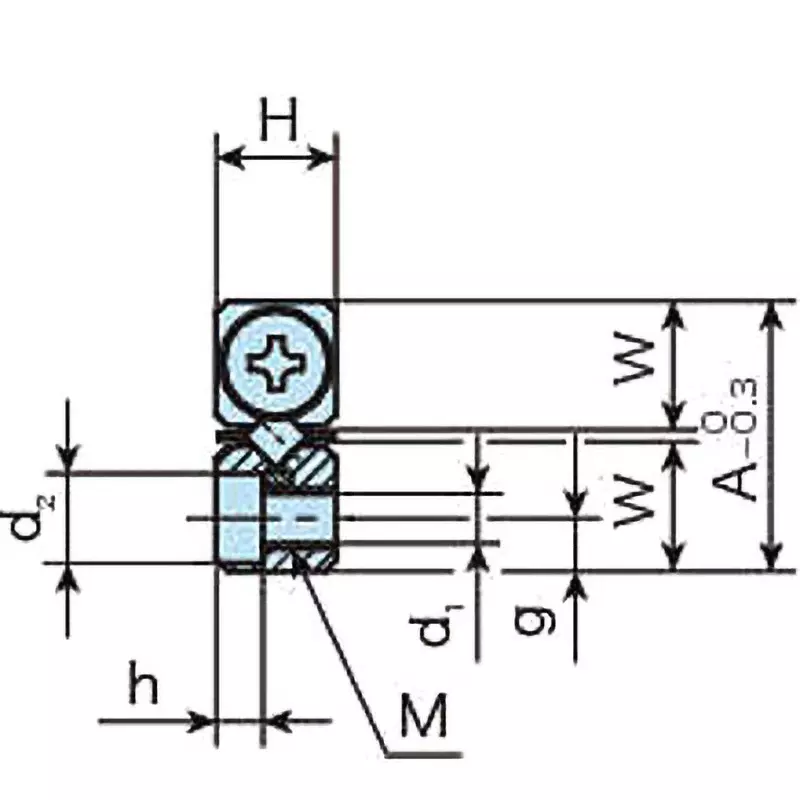

Dimensions H (mm) |
8 |
Dimensions A (mm) |
18 |
Dimensions E (mm) |
12.5 |
Dimension W |
8.3 mm |

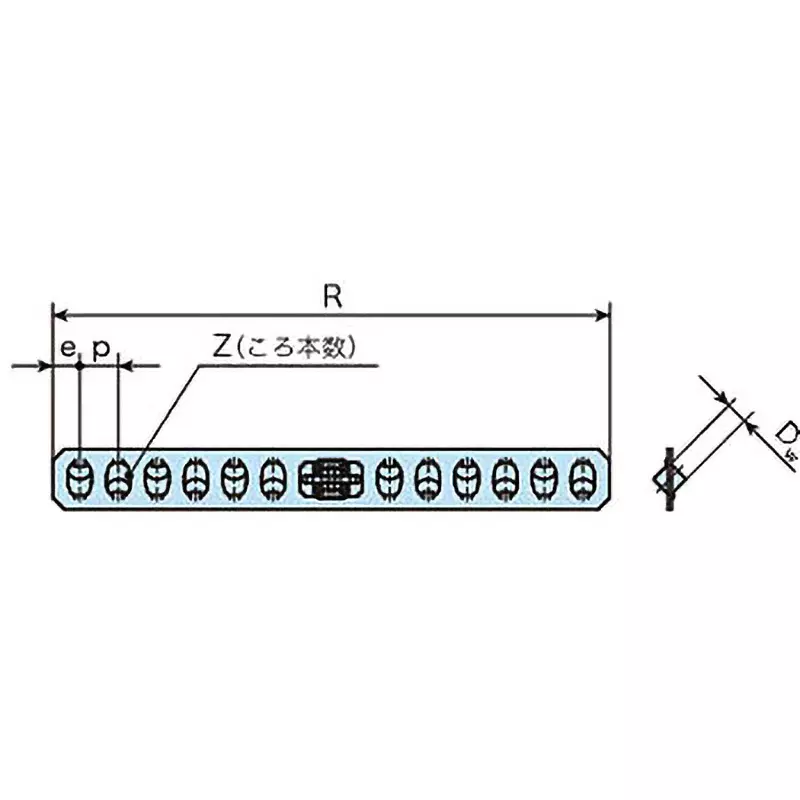

Dimension R |
122 mm |
Dimension D2 (mm) |
6 |
Dimension D1 (mm) |
3.3 |
Dimension Z (mm) |
22 |
Mass (g) |
Raceway (1 pc) /64.9, Cylindrical roller with cage (1 set) /5.75 |
Dimensions M (mm) |
M4 |
Dimensions g (mm) |
3.5 |
Dimensions P (mm) |
5 |
