| Model No | LM203242NUUOP |

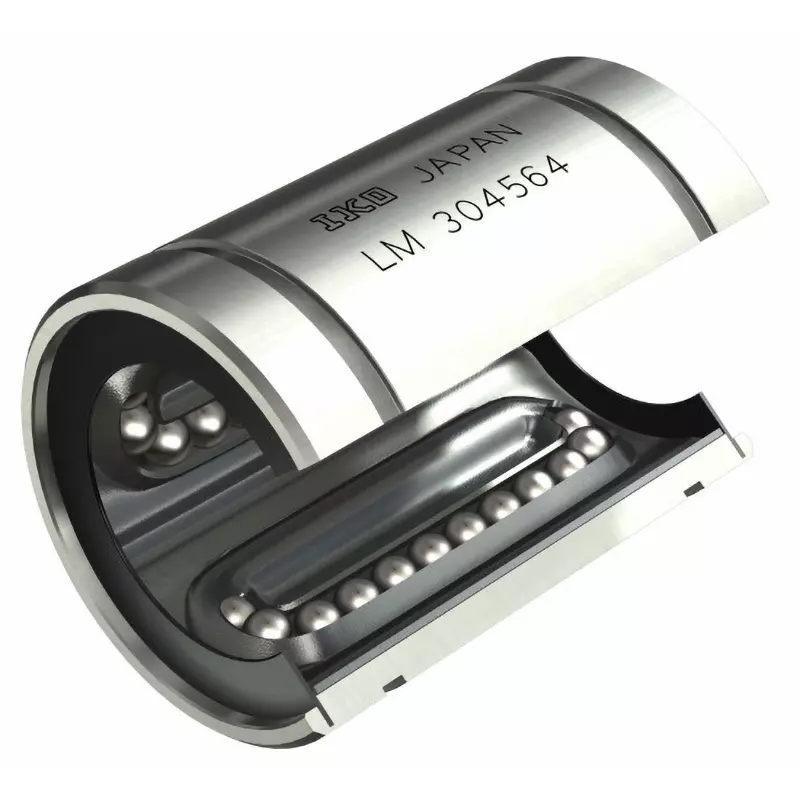

| Type of Product | Linear Bushing LM-OP (Open Type) |
| Material | Made of carbon steel |
| Seal | Sealed type |
Model No |
LM203242NUUOP |
Type of Product |
Linear Bushing LM-OP (Open Type) |
Material |
Made of carbon steel |
Seal |
Sealed type |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
LM |
Monotaro ID |
47168536 |
Import Country |
Direct Import from Japan |

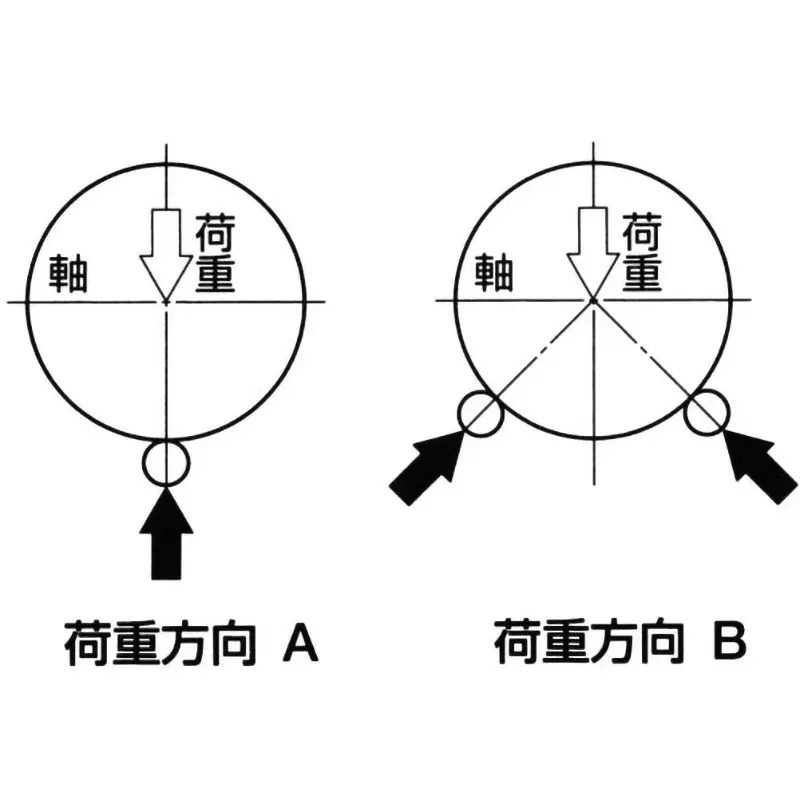

Basic static load rating Co (N) |
[Load direction A] 7130, [Load direction B] 1470 |
Basic dynamic load rating C (N) |
[Load direction A] 562, [Load direction B] 562 |

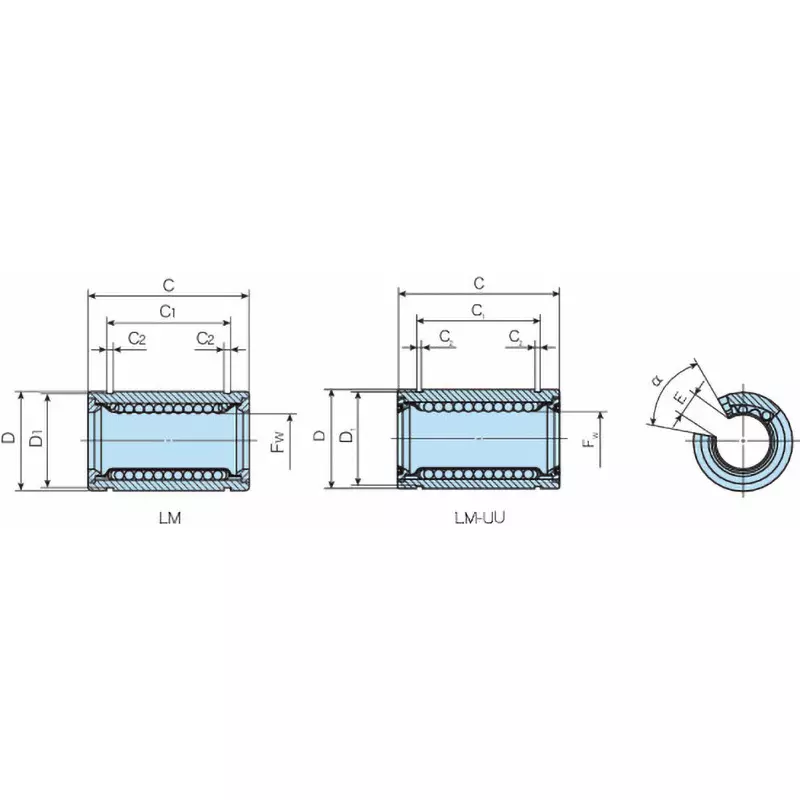

Dimensions D (mm) |
32 |
Dimensions C (mm) |
42 |
Dimensions E (mm) |
11 |
Dimension D1 (mm) |
30.5 |
Shape |
Open type |
Maximum Eccentricity (μm) |
15 |
Dimensional Tolerance (μm) |
(Fw) 0/-10, (D) 0/-16, (C) 0/-200, (C1) 0/-200 |
Row |
4 |
Dimension Fw (mm) |
20 |
Dimension C2 (mm) |
1.6 |
Material (Cage) |
Made of synthetic resin |
Angle α (°) |
60 |
Reference mass (g) |
69 |
Dimension C1 (mm) |
30.5 |
