| Model No | LM406080FOP |

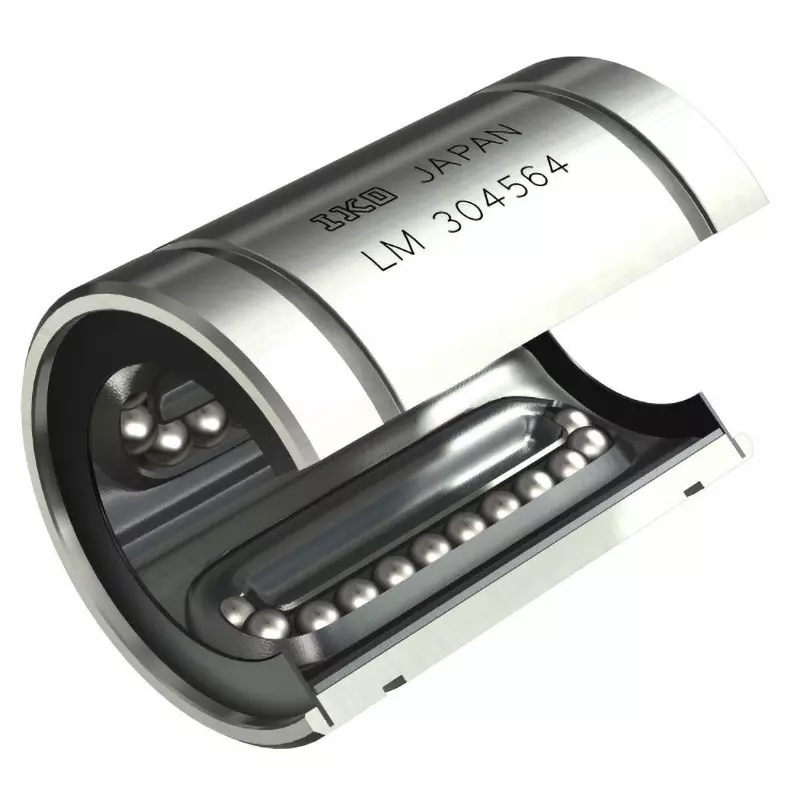

| Type of Product | Linear Bushing LM-OP (Open Type) |
| Material | Stainless steel |
| Seal | Without seal |
Model No |
LM406080FOP |
Type of Product |
Linear Bushing LM-OP (Open Type) |
Material |
Stainless steel |
Seal |
Without seal |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
LM |
Monotaro ID |
47168807 |
Import Country |
Direct Import from Japan |
Basic static load rating Co (N) |
[Load direction A] 503, [Load direction B] 4640 |
Basic dynamic load rating C (N) |
[Load direction A] 2030, [Load direction B] 2030 |

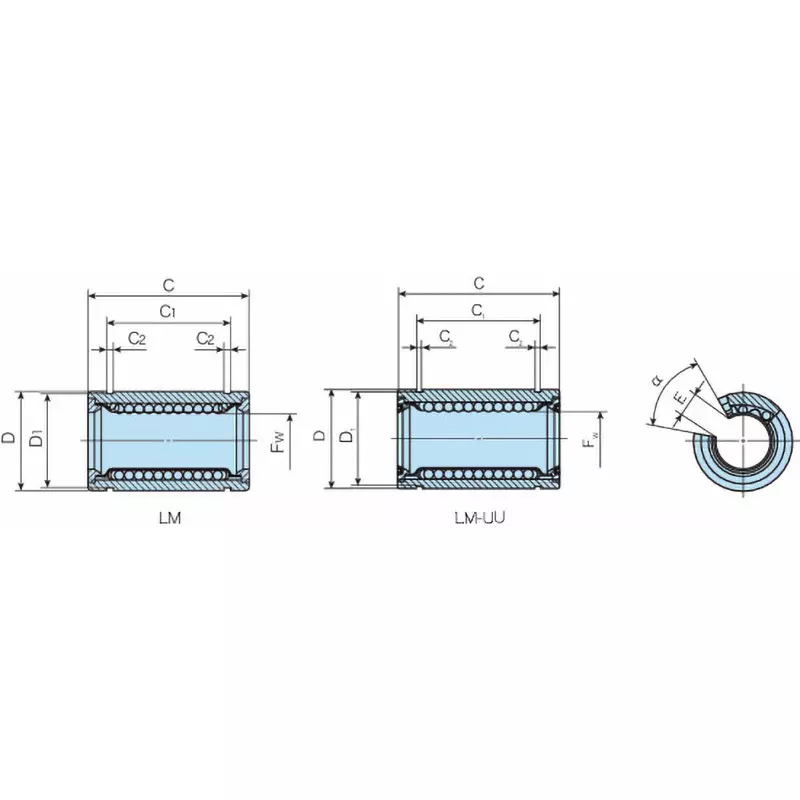

Dimensions D (mm) |
60 |
Dimensions C (mm) |
80 |
Dimensions E (mm) |
20 |
Dimension D1 (mm) |
57 |
Shape |
Open type |
Maximum Eccentricity (μm) |
20 |
Dimensional Tolerance (μm) |
(Fw) 0/-12, (D) 0/-19, (C) 0/-300, (C1) 0/-300 |
Row |
5 |
Dimension Fw (mm) |
40 |
Dimension C2 (mm) |
2.1 |
Material (Cage) |
Stainless steel |
Angle α (°) |
50 |
Reference mass (g) |
546 |
Dimension C1 (mm) |
60.5 |
