| Model No | CRWM2-30 |

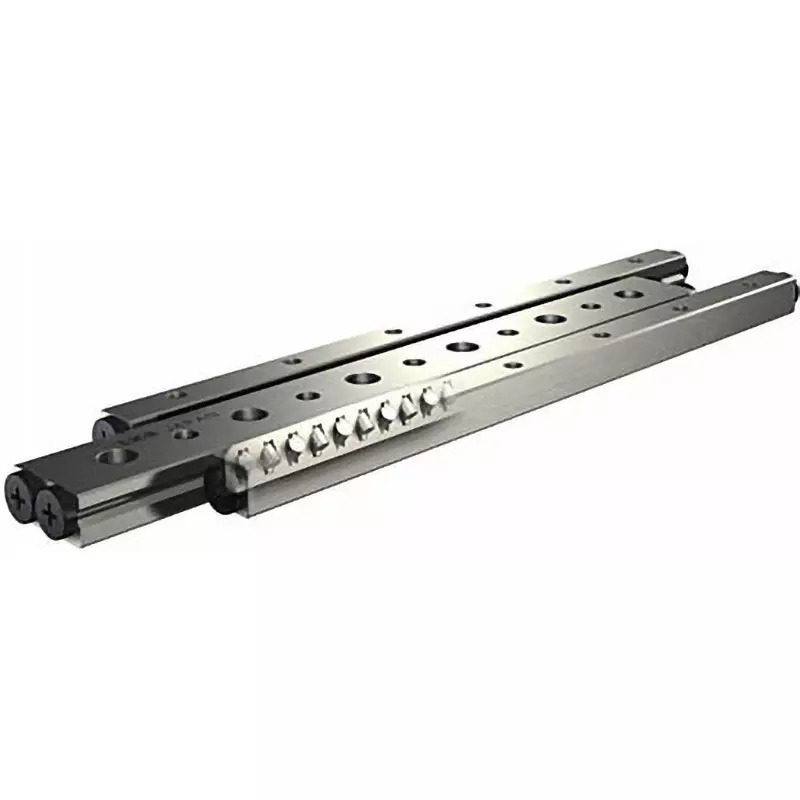

| Type of Product | Cross Roller Way |
| Material | Carbon steel |
| Country of Origin | Japan |
Model No |
CRWM2-30 |
Type of Product |
Cross Roller Way |
Material |
Carbon steel |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
Cross roller way |
Monotaro ID |
75737742 |
Import Country |
Direct Import from Japan |

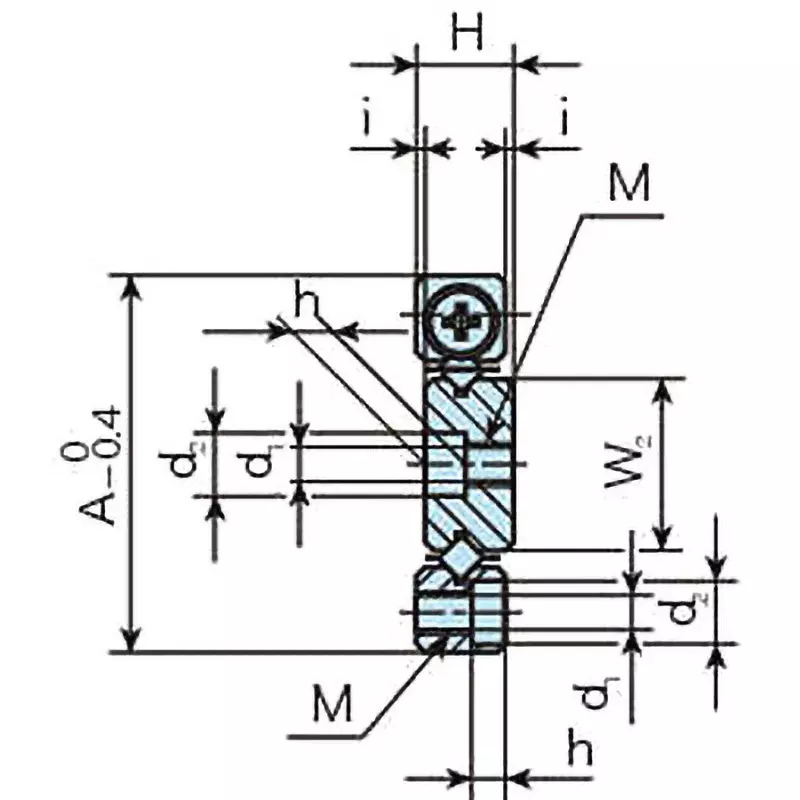

Dimension L (mm) |
30 |
Dimension T |
1.5 mm |
Accuracy |
Standard |
Dimensions H (mm) |
6.5 |
Dimensions D (mm) |
3 (Dimension difference 0 to +0.010) |
Dimensions A (mm) |
24 |
Mass (kg/m) |
Rail way / 0.99 |
Dimensions E (mm) |
2.8 |

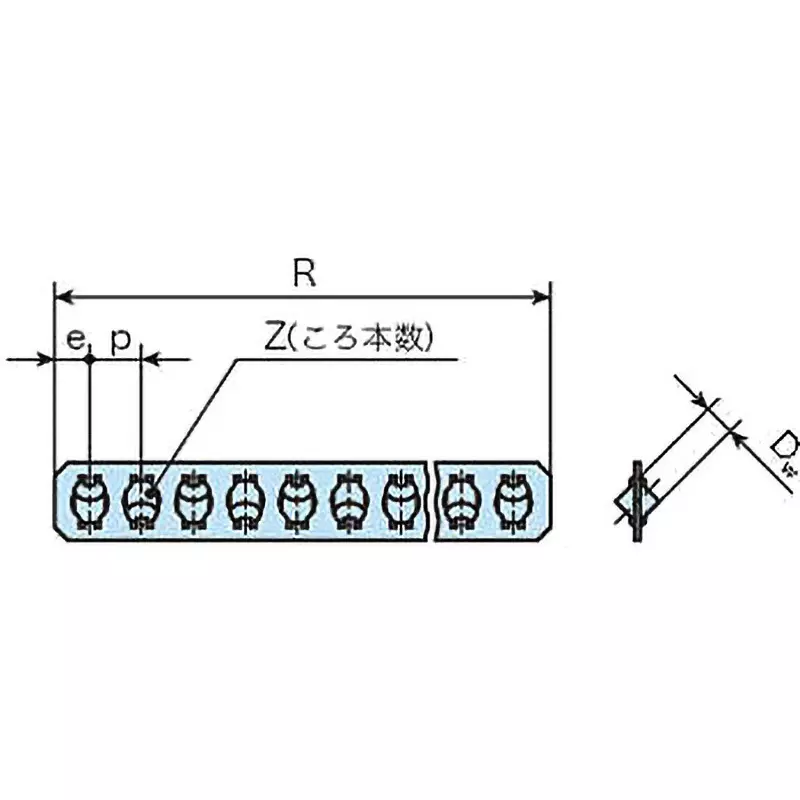

Dimension R |
29.6 mm |
Dimension D2 (mm) |
4.4000000000000004 |
Dimension D1 (mm) |
2.5499999999999998 |
Dimension Z (mm) |
7 |
Mass (g) |
Cylindrical roller with cage (1 set) /0.98 |
Dimensions M (mm) |
M3 |
Dimension E1 |
7.5 mm |
Dimension E2 |
15 mm |
