| Model No | CRW9-700 |
| Type of Product | Cross Roller Way |
| Material | Carbon steel |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
CRW9-700 |
Type of Product |
Cross Roller Way |
Material |
Carbon steel |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
Cross roller way |
Monotaro ID |
75738214 |
Import Country |
Direct Import from Japan |

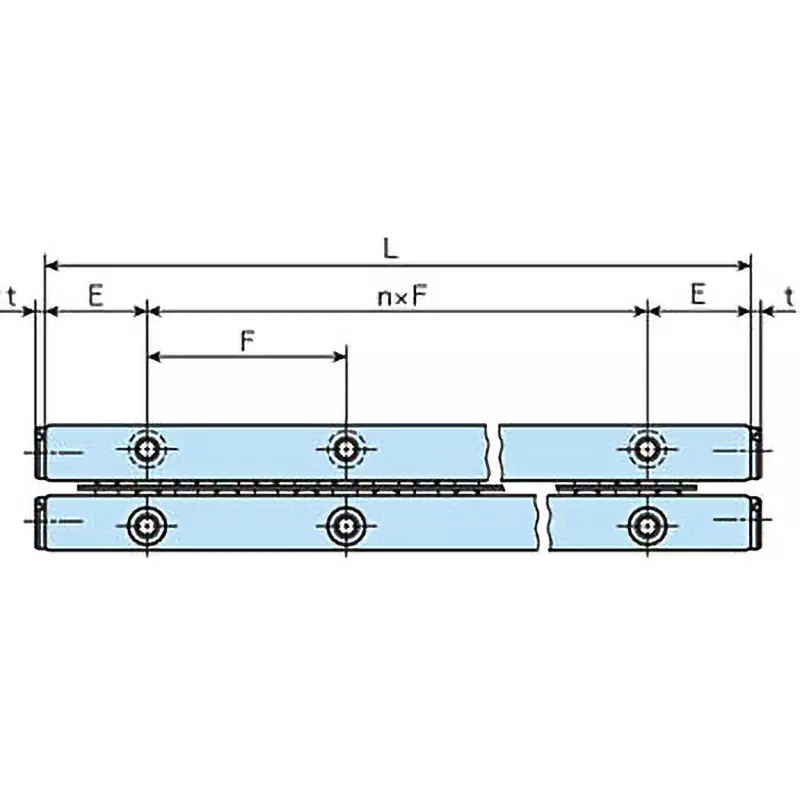

Dimension L (mm) |
700 |
Dimension T |
3 mm |
Accuracy |
Standard |

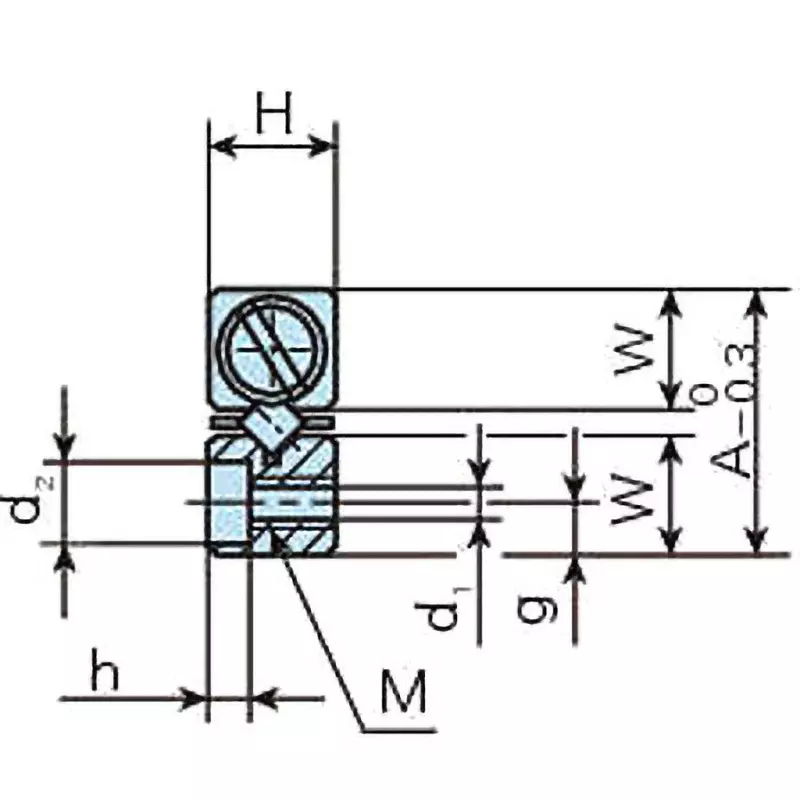

Dimensions H (mm) |
22 |
Dimensions A (mm) |
44 |
Mass (kg/m) |
Rail / 3.3 |
Dimensions E (mm) |
50 |
Dimension W |
20.2 mm |

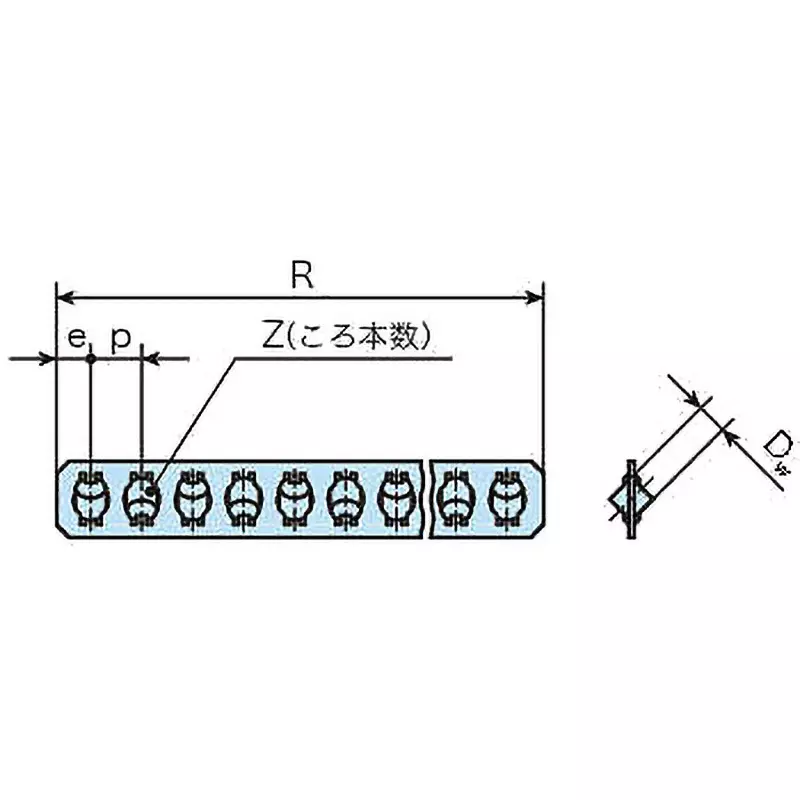

Dimension R |
565 mm |
Dimension D2 (mm) |
10.5 |
Dimension D1 (mm) |
6.8 |
Dimension Z (mm) |
40 |
Mass (g) |
Cylindrical roller with cage (1 set) /64.8 |
Dimensions M (mm) |
M8 |
Dimensions g (mm) |
9 |
