| Model No | CRW12-1000 |
| Type of Product | Cross Roller Way |
| Material | Carbon steel |
| Country of Origin | Japan |
Model No |
CRW12-1000 |
Type of Product |
Cross Roller Way |
Material |
Carbon steel |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
Cross roller way |
Monotaro ID |
75739404 |
Import Country |
Direct Import from Japan |

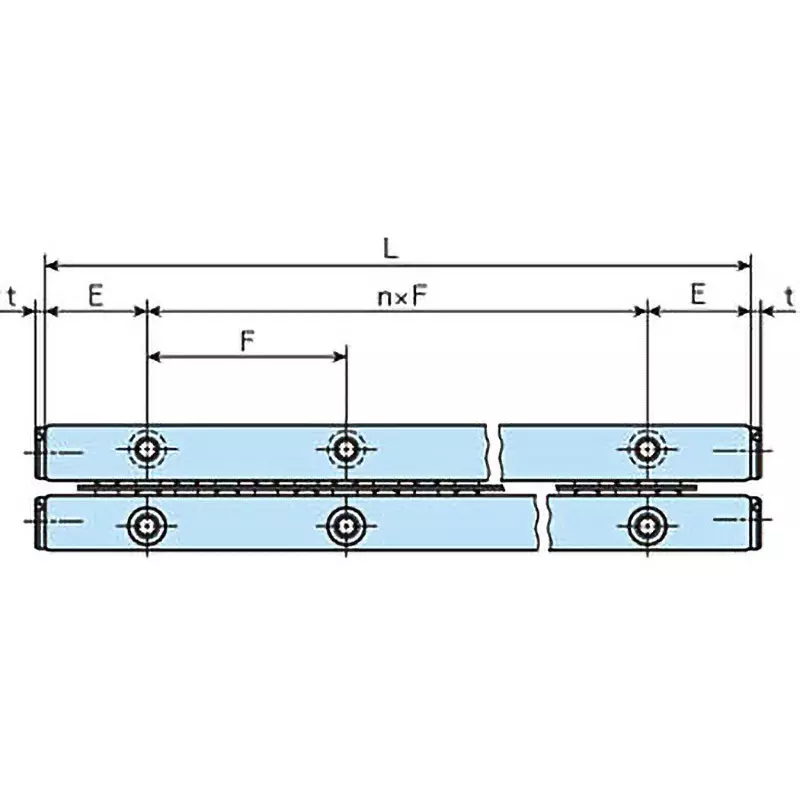

Dimension L (mm) |
1000 |
Dimension T |
3 mm |
Accuracy |
Standard |

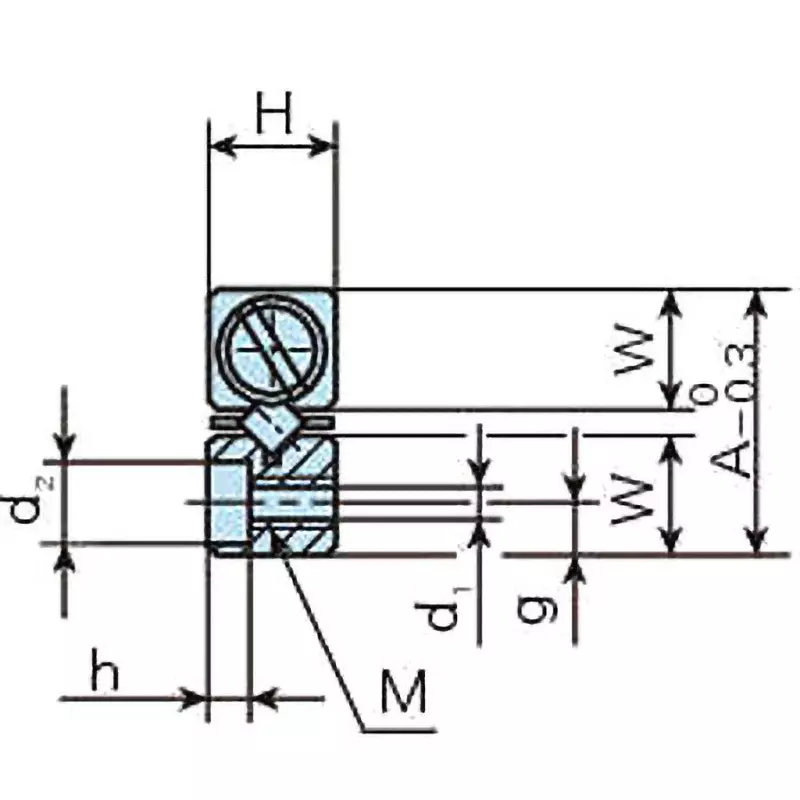

Dimensions H (mm) |
28 |
Dimensions A (mm) |
58 |
Mass (kg/m) |
Rail way / 5.57 |
Dimensions E (mm) |
50 |
Dimension W |
26.9 mm |

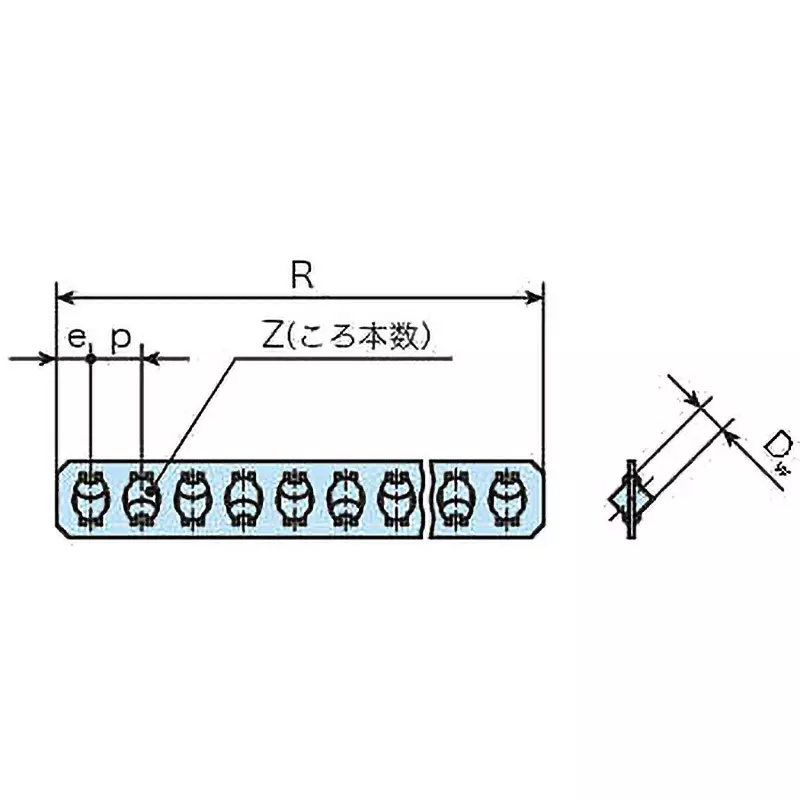

Dimension R |
816 mm |
Dimension D2 (mm) |
13.5 |
Dimension D1 (mm) |
8.5 |
Dimension Z (mm) |
45 |
Mass (g) |
Cylindrical roller with cage (1 set) / 146 |
Dimensions M (mm) |
M10 |
Dimensions g (mm) |
12 |
