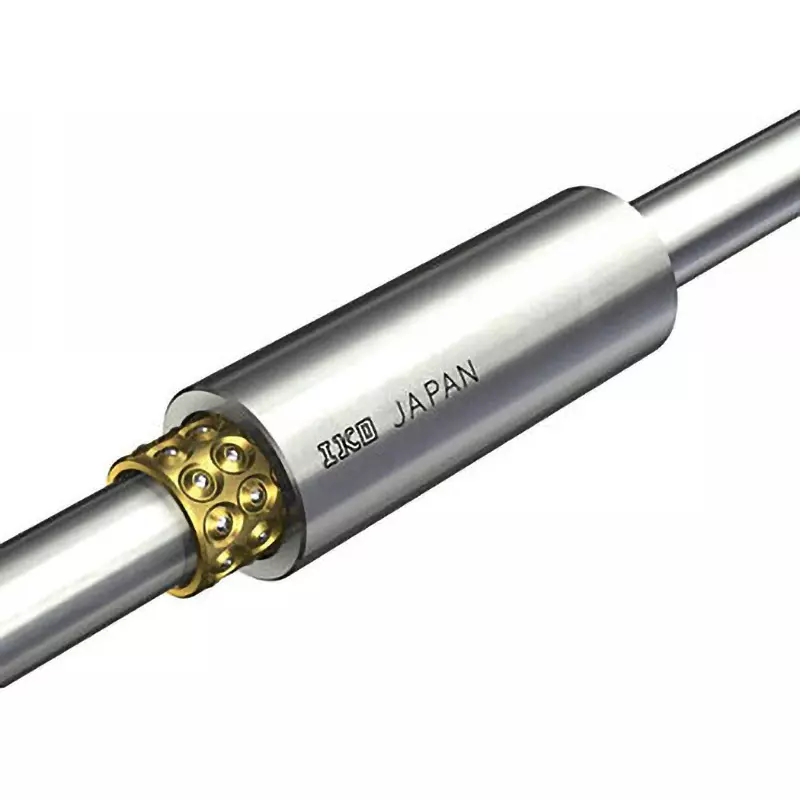

| Model No | STSI840-10-80M3 |
| Type of Product | Miniature Stroke STSI8 |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Nippon Thompson Co., Ltd. |
Model No |
STSI840-10-80M3 |
Type of Product |
Miniature Stroke STSI8 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
Set product |
Monotaro ID |
75748145 |
Import Country |
Direct Import from Japan |
Specifications |
With shaft |
Dimension L (mm) |
80 |
Dimensions F (mm) |
8 |
Dimensions D (mm) |
13 |
Dimensions E (mm) |
10 |
Basic Static Load Rating (N) |
105 |
Mass (g) |
50.1 |

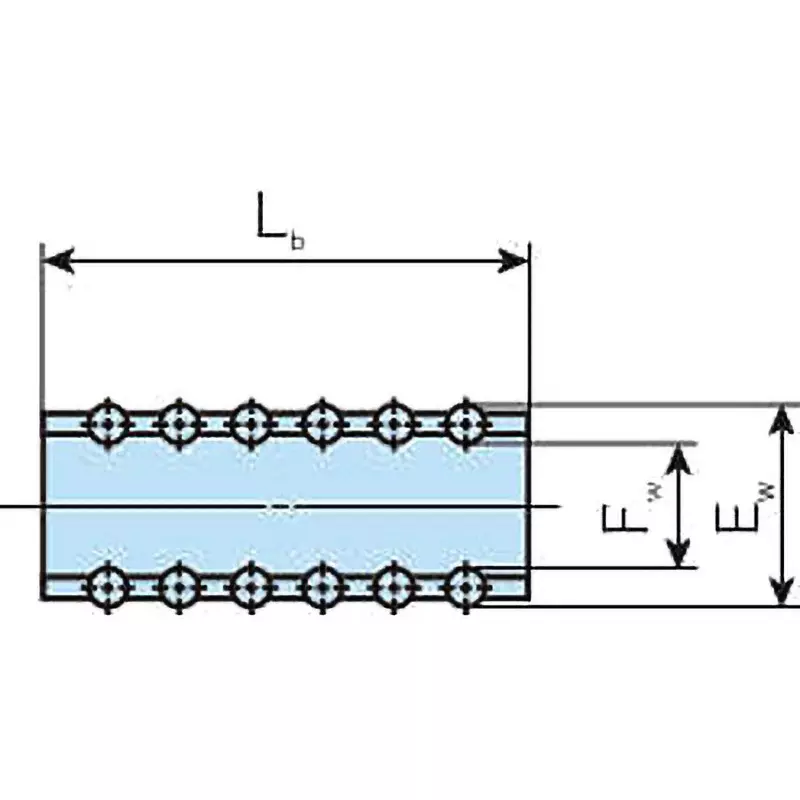

Dimension Fw (mm) |
8 |
Dimension LB (mm) |
10 |
Dimension Ew (mm) |
10 |

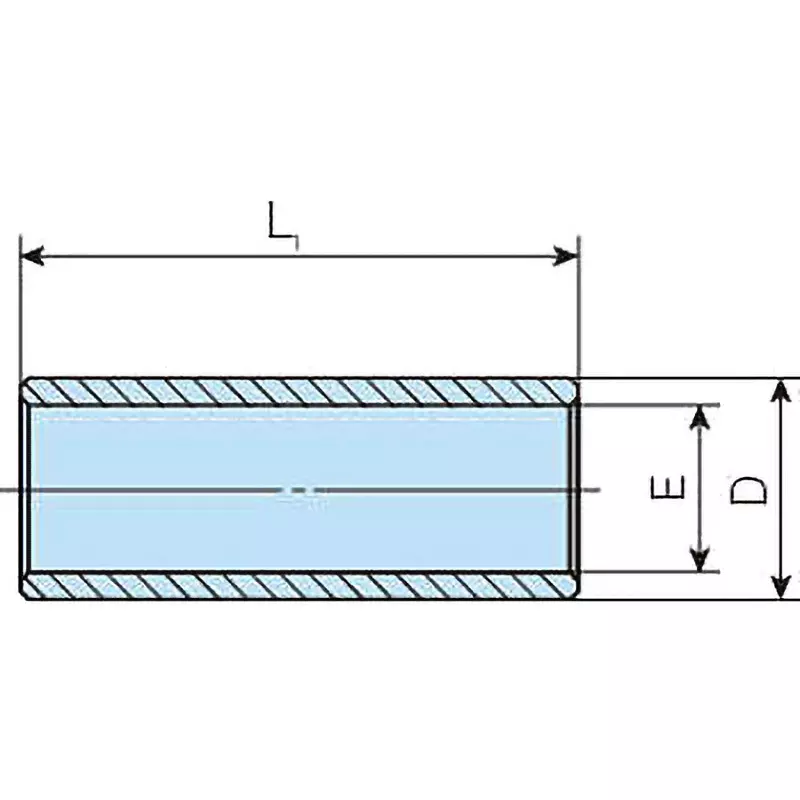

Outer Cylinder Outer Diameter (Φmm) |
13 |
Outer Cylinder Length (mm) |
40 |

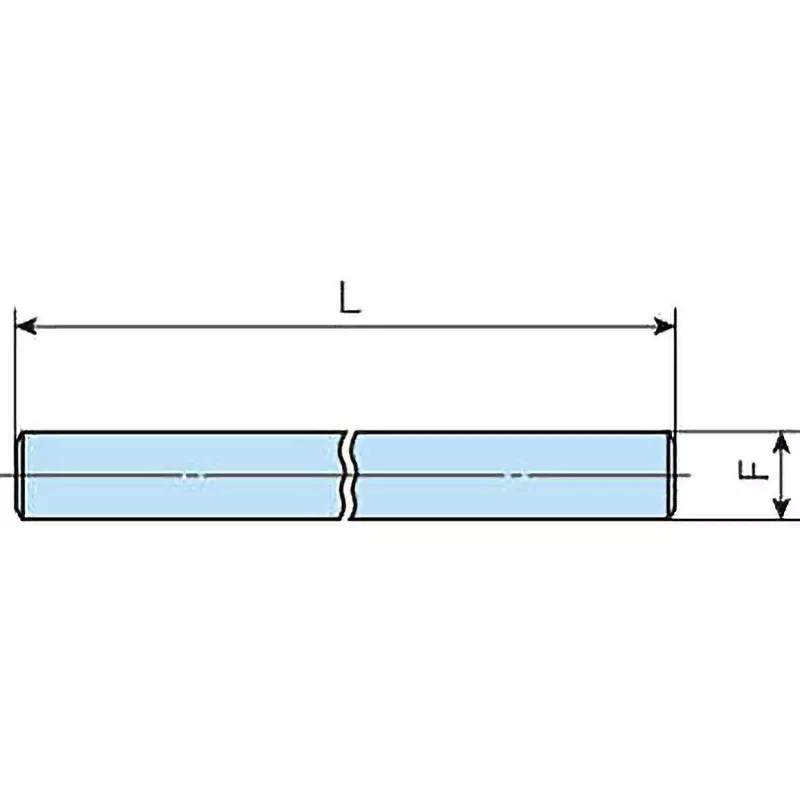

Shaft Diameter F (Φmm) |
8 |
Shaft Length |
80 mm |
