Ships within 25 days
View
View
View
View
| Model No | RNFTL4040A3S |
| Type of Product | RNFTL Type Rolled Ball Screw for Transfer Equipment (Single Flange Nut) |
| Seal | With seal |
| Country of Origin | Japan |
Model No |
RNFTL4040A3S |
Type of Product |
RNFTL Type Rolled Ball Screw for Transfer Equipment (Single Flange Nut) |
Seal |
With seal |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Type |
Large lead |
Monotaro ID |
38402795 |
Import Country |
Direct Import from Japan |

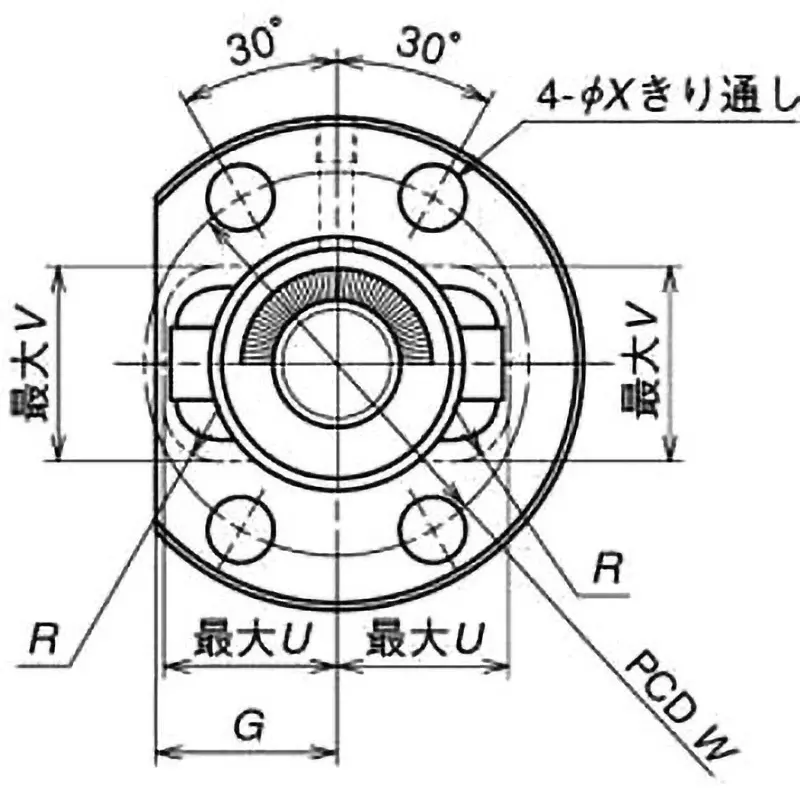

Dimension T |
9 mm |
Lead |
40 mm |
Ball diameter (mm) |
6.35 |
Dimensions D (mm) |
70 |
Dimensions A (mm) |
120 |
Dimensions B (mm) |
18 |
Dimension X (mm) |
14 |
Dimension W |
95 mm |
Dimension R |
15 mm |
Shaft diameter d1 (Φmm) |
40 |
Pitch Circle Diameter |
41.75 mm |
Root Diameter |
35 mm |
Dimension Q (mm) |
M6x1 |
Dimension V (mm) |
49 |
Clearance |
(Axial maximum) 0.20 mm |
Mass (g) |
2.69 |
Dimension U (mm) |
46 |
Dimensions g (mm) |
46 |
