Ships within 25 days
View
View
View
View
| Model No | RNFTL2010A2.5S |

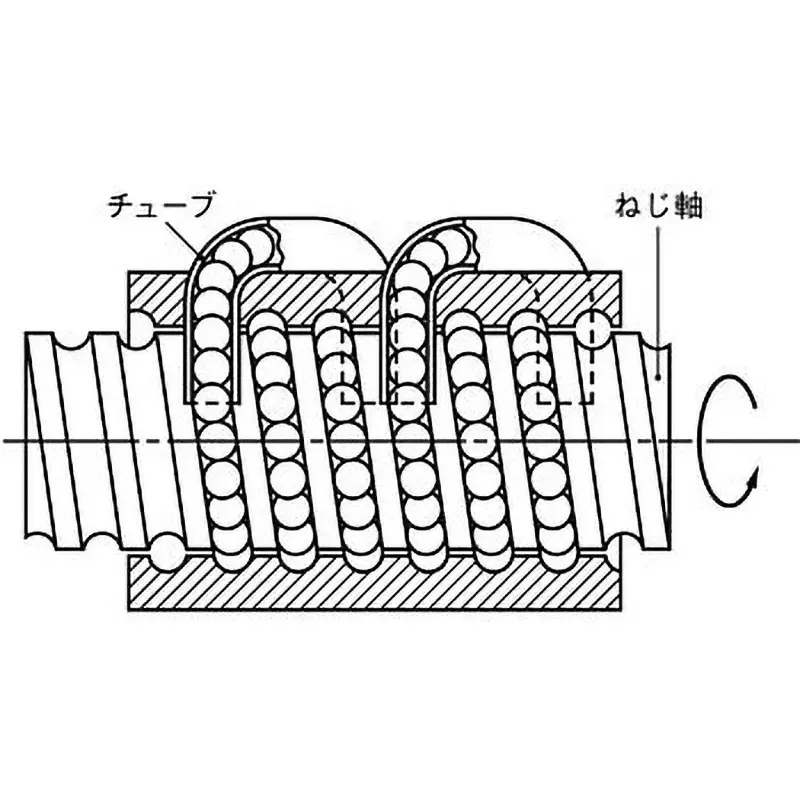

| Type of Product | RNFTL Type Rolled Ball Screw for Transfer Equipment (Single Flange Nut) |
| Seal | With seal |
| Country of Origin | Japan |
Model No |
RNFTL2010A2.5S |
Type of Product |
RNFTL Type Rolled Ball Screw for Transfer Equipment (Single Flange Nut) |
Seal |
With seal |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Type |
Small / medium lead |
Monotaro ID |
38402445 |
Import Country |
Direct Import from Japan |

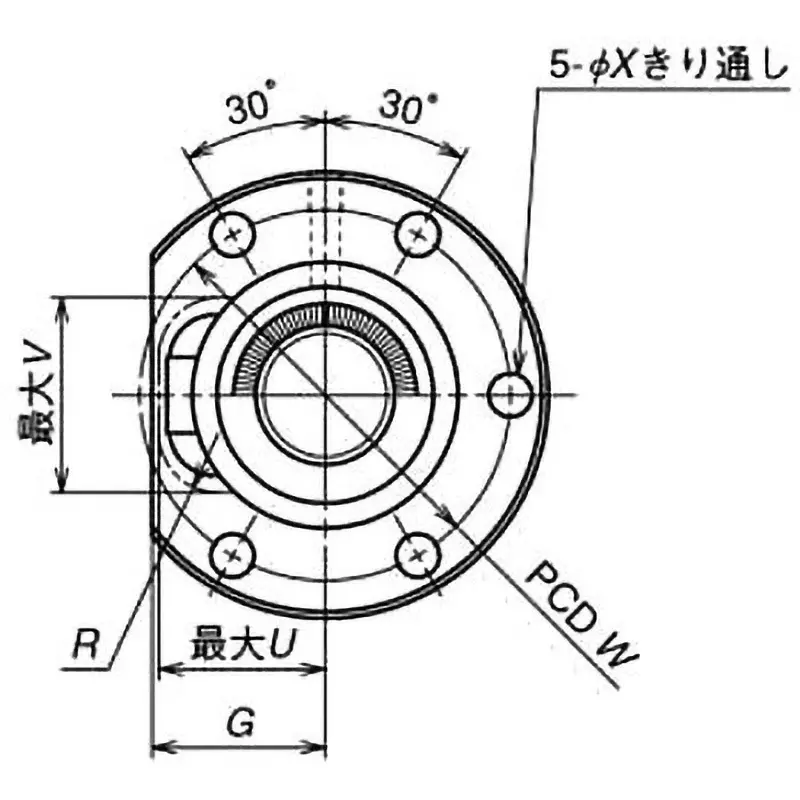

Dimension T |
6 mm |
Lead |
10 mm |
Ball diameter (mm) |
4.7619999999999996 |
Dimensions D (mm) |
40 |
Dimensions A (mm) |
67 |
Dimensions B (mm) |
12 |
Dimension X (mm) |
6.6 |
Dimension W |
53 mm |
Dimension R |
12 mm |
Shaft diameter d1 (Φmm) |
20 |
Pitch Circle Diameter |
21.25 mm |
Root Diameter |
16.2 mm |
Dimension Q (mm) |
M6x1 |
Dimension V (mm) |
29 |
Clearance |
(Maximum in axial direction) 0.15 mm |
Mass (g) |
0.55000000000000004 |
Dimension U (mm) |
30 |
Dimensions g (mm) |
30 |
