| Model No | HSS5012N1D2900 |

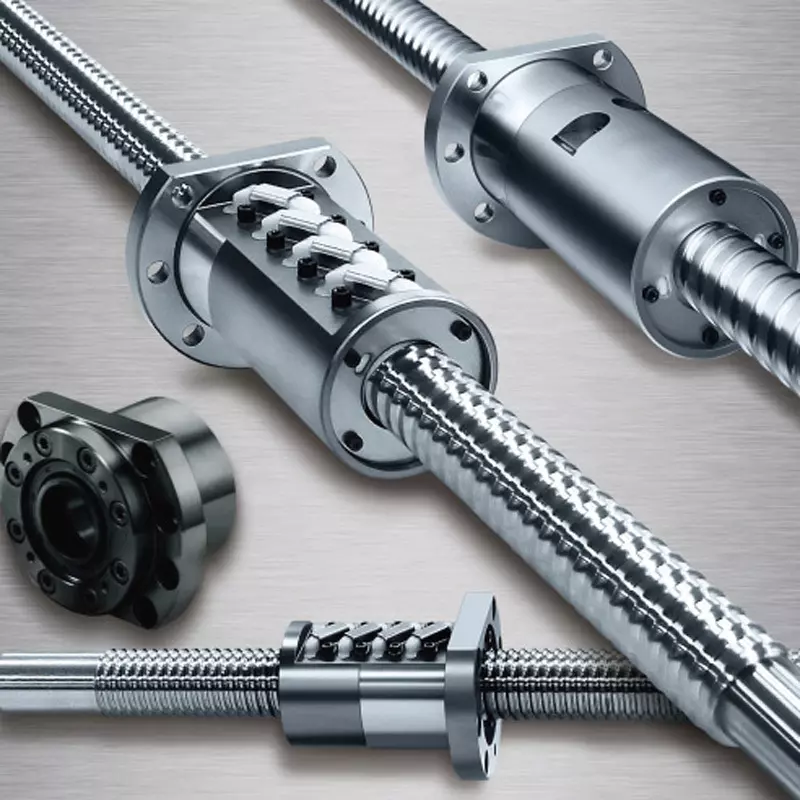

| Type of Product | Standard Ball Screw (Unfinished Shaft End) High Speed Ss Series HSS |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | NSK Ltd. |
Model No |
HSS5012N1D2900 |
Type of Product |
Standard Ball Screw (Unfinished Shaft End) High Speed Ss Series HSS |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Monotaro ID |
12458157 |
Import Country |
Direct Import from Japan |
Lead |
12 mm |
Ball diameter (mm) |
(Dw) 7.938 |
Outer Diameter D (Φmm) |
[Axis] 50 |
Pitch Circle Diameter |
Ball pitch (dm): 51.5 mm |
Effective Turns Number (circuit) |
2.5x2 |
Root Diameter |
[Screw shaft dr] 43.2 mm |
Torque Value (Ncm) |
[Dynamic friction] 136.5 |
Preload (n) |
3880 |
Diameter (Φmm) |
[Screw shaft] 50 |
Basic load rating Coa (N) |
[Static rating] 218000 |
Basic load rating Ca (N) |
[Dynamic rating] 91500 |
