Ships within 25 days
View
View
View
View
| Model No | HSS3205N1D0950 |

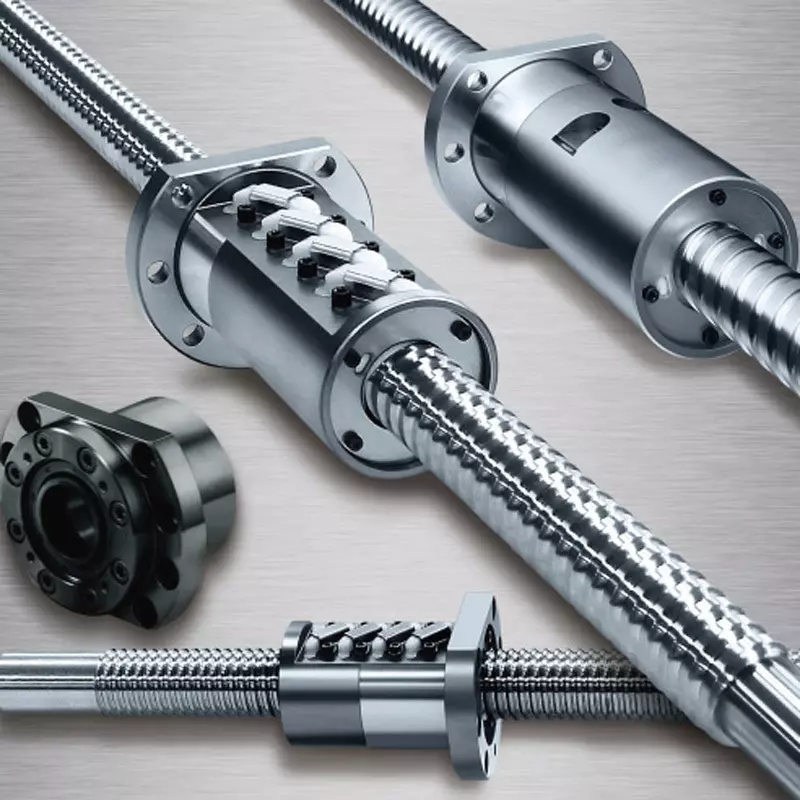

| Type of Product | Standard Ball Screw (Unfinished Shaft End) High Speed Ss Series HSS |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | NSK Ltd. |
Model No |
HSS3205N1D0950 |
Type of Product |
Standard Ball Screw (Unfinished Shaft End) High Speed Ss Series HSS |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Monotaro ID |
12459390 |
Import Country |
Direct Import from Japan |
Specifications |
[Diameter] 32 [Valley diameter (dr)] 29.2 |
Lead |
5 mm |
Ball diameter (mm) |
(Dw) 3.175 |
Outer Diameter D (Φmm) |
[Axis] 32 |
Pitch Circle Diameter |
Ball pitch (dm): 32.5 mm |
Effective Turns Number (circuit) |
2.5x2 |
Torque Value (Ncm) |
[Dynamic friction] 17 |
Preload (n) |
920 |
Basic load rating Coa (N) |
[Static rating] 56000 |
Basic load rating Ca (N) |
[Dynamic rating] 21800 |
