Ships within 25 days
View
View
View
View

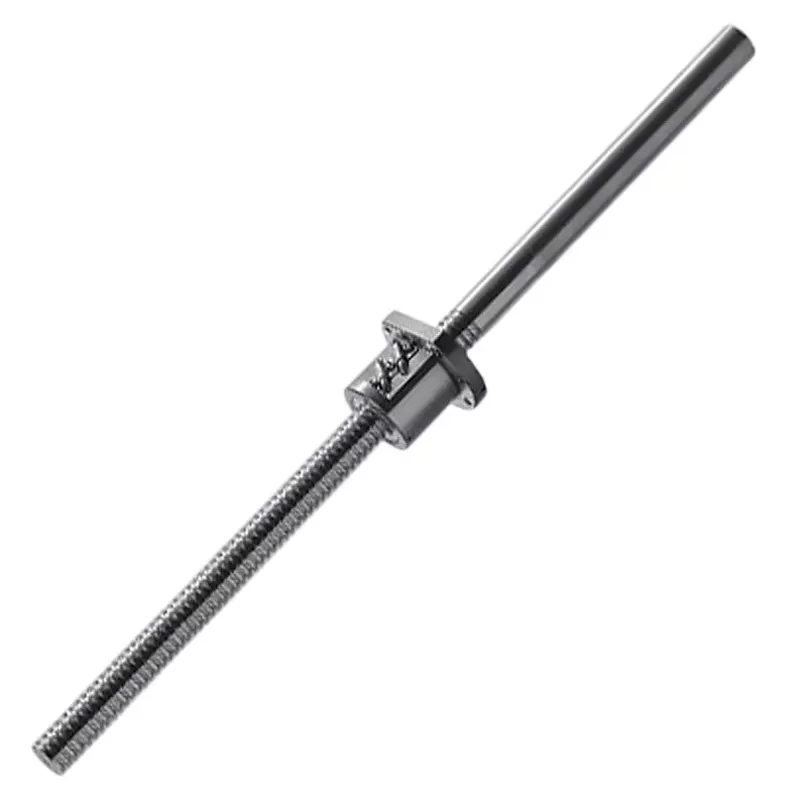

| Model No | W1202FS-1-C3T5 |
| Type of Product | Standard Ball Screw (Unfinished Shaft End) Ball Screw for Small Equipment FS |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | NSK Ltd. |
Model No |
W1202FS-1-C3T5 |
Type of Product |
Standard Ball Screw (Unfinished Shaft End) Ball Screw for Small Equipment FS |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Monotaro ID |
12459785 |
Import Country |
Direct Import from Japan |
Specifications |
[Diameter] 12 [Valley diameter (dr)] 9.8 |
Stroke |
[Maximum Lt-Ln] 210 |
Lead |
5 mm |
Ball diameter (mm) |
(Dw) 2.381 |
Pitch Circle Diameter |
Ball pitch (dm): 12.3 mm |
Effective Turns Number (circuit) |
2.5x1 |
Axial Direction |
[Gap] Maximum 0.005 |
Basic load rating Coa (N) |
[Static rating] 6260 |
Basic load rating Ca (N) |
[Dynamic rating] 4390 |
Outer Diameter d1 (Φmm) |
[Axis] 12 |
