| Model No | HSS4010N1D1450 |

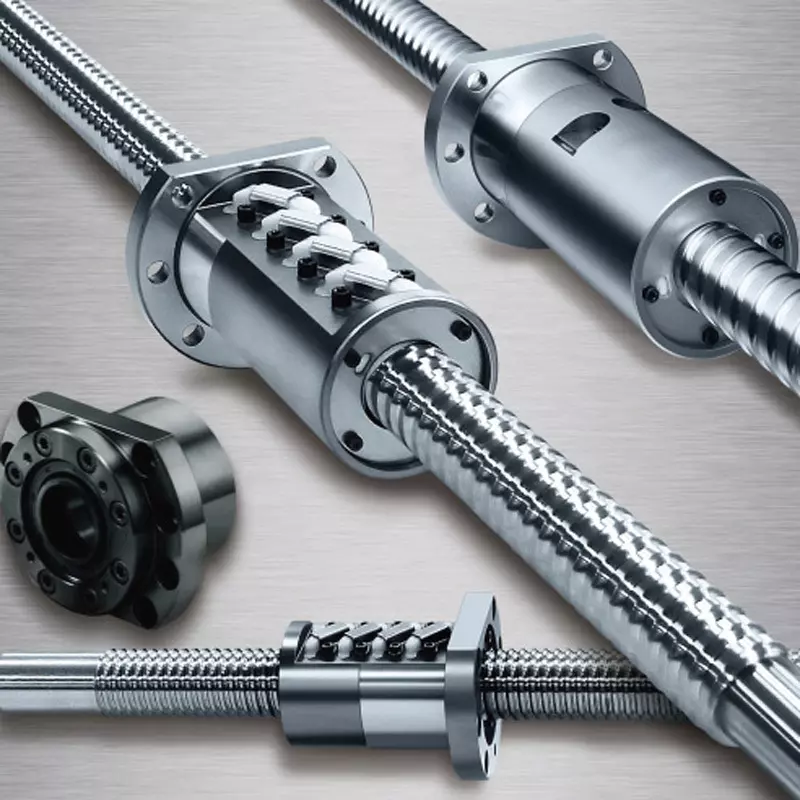

| Type of Product | Standard Ball Screw (Unfinished Shaft End) High Speed Ss Series HSS |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | NSK Ltd. |
Model No |
HSS4010N1D1450 |
Type of Product |
Standard Ball Screw (Unfinished Shaft End) High Speed Ss Series HSS |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Monotaro ID |
12462305 |
Import Country |
Direct Import from Japan |
Specifications |
[Diameter] 40 |
Lead |
10 mm |
Ball diameter (mm) |
(Dw) 6.35 |
Outer Diameter D (Φmm) |
[Axis] 40 |
Pitch Circle Diameter |
Ball pitch (dm): 41 mm |
Effective Turns Number (circuit) |
2.5x2 |
Root Diameter |
[Screw shaft (dr)] 34.4 mm |
Torque Value (Ncm) |
[Dynamic friction] 74.5 |
Preload (n) |
2600 |
Basic load rating Coa (N) |
[Static rating] 137000 |
Basic load rating Ca (N) |
[Dynamic rating] 61200 |
