Ships within 19 days
View
View
View
View
| Model No | RNFCL2040A2 |

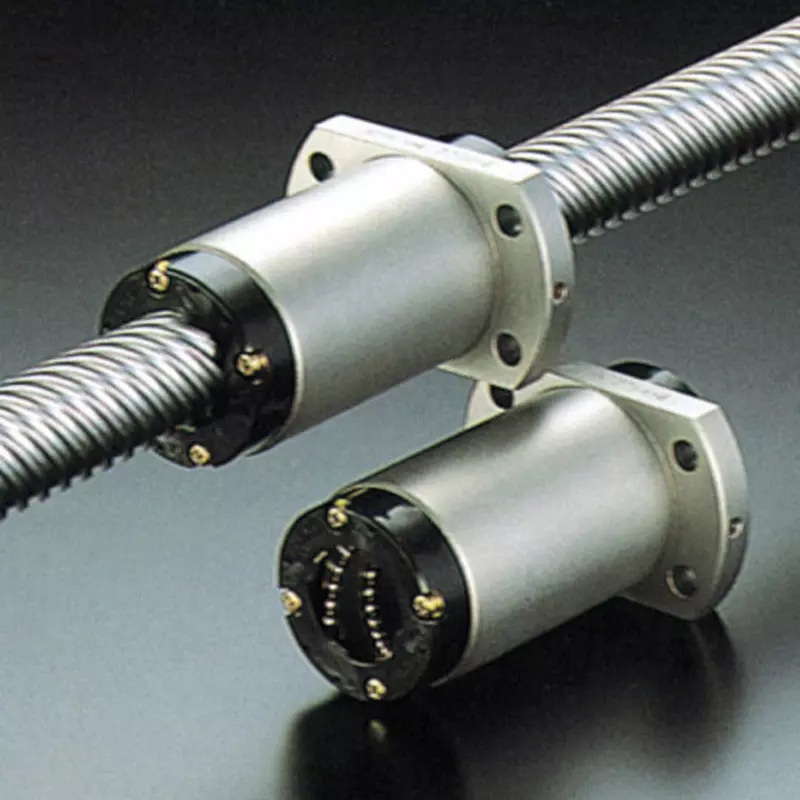

| Type of Product | Standard Ball Screw (Unfinished Shaft End) Conveyor Ball Screw R Series (End Cap Type Single Flange Nut) RNFCL |
| Seal | No seal |
| Country of Origin | Japan |
Model No |
RNFCL2040A2 |
Type of Product |
Standard Ball Screw (Unfinished Shaft End) Conveyor Ball Screw R Series (End Cap Type Single Flange Nut) RNFCL |
Seal |
No seal |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Type |
Super large lead |
Monotaro ID |
12466496 |
Import Country |
Direct Import from Japan |
Basic static load rating Coa (N) |
13600 |
Basic dynamic load rating Ca (N) |
6610 |
Lead |
40 mm |
Screw Shaft Outer Diameter (Φmm) |
(d) 20 |
Ball diameter (mm) |
(Dw) 3.175 |
Effective Number of Turns |
2 |
Pitch Circle Diameter |
Ball pitch (dm): 20.75 mm |
Effective Turns Number (circuit) |
4 |
Axial Direction |
[Gap] Maximum 0.1 |
Root Diameter |
[Screw shaft] 17.3 mm |
