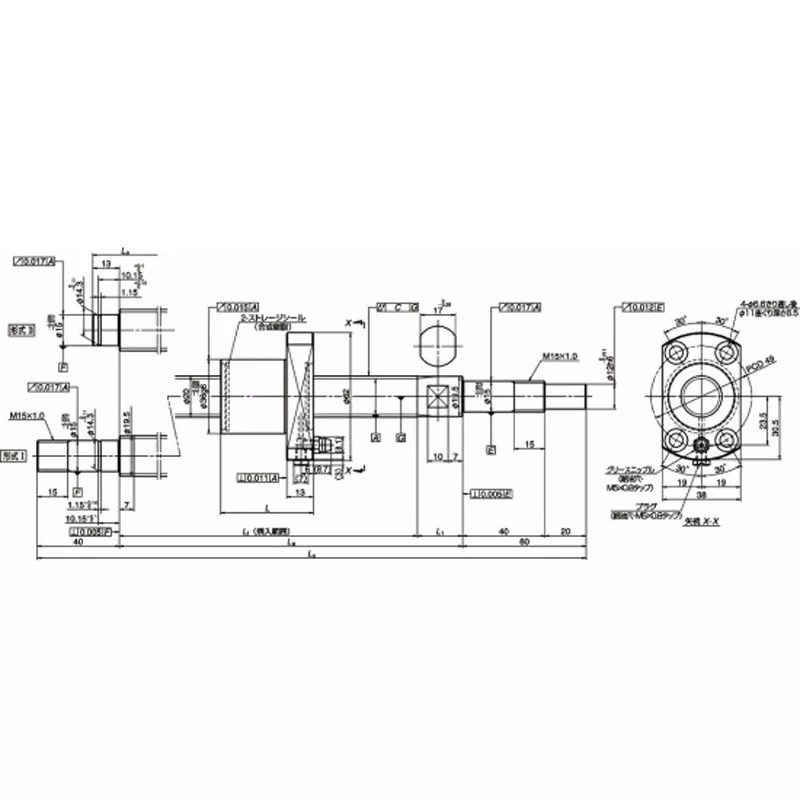

| Model No | PSS1510N1D0979 |

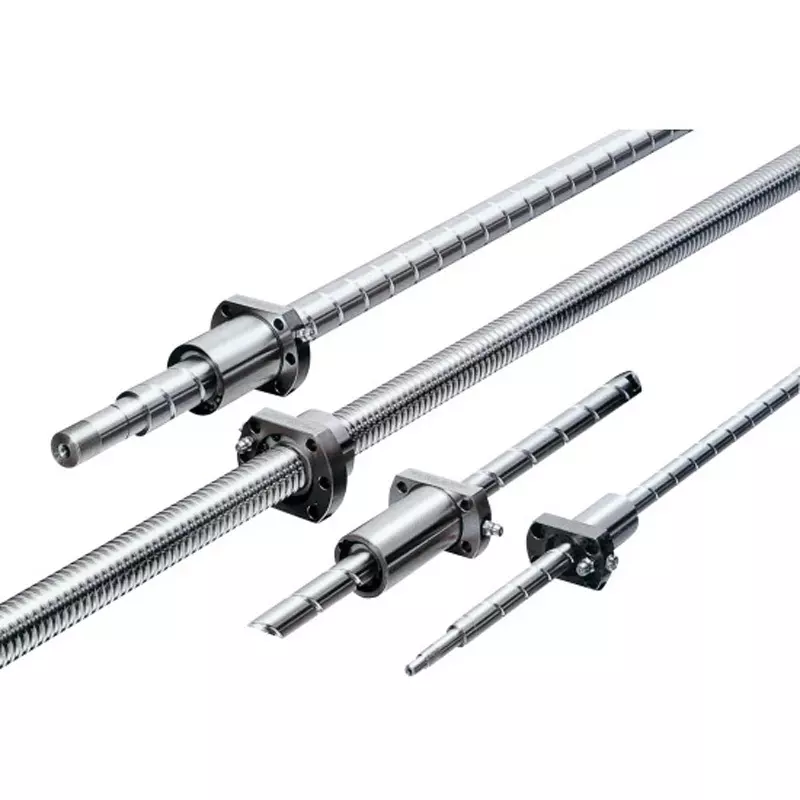

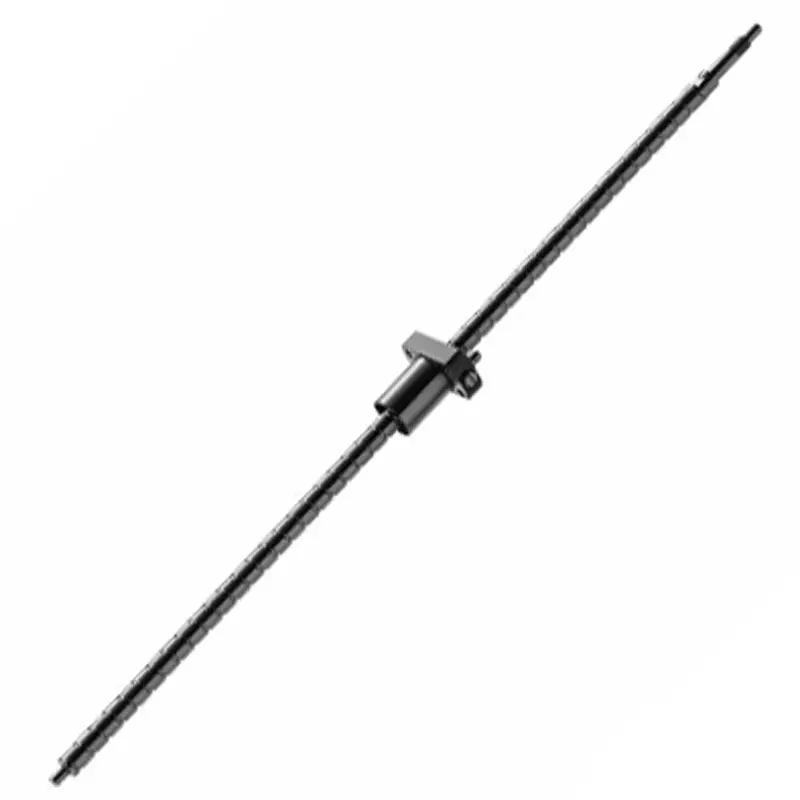

| Type of Product | Standard Ball Screw (Shaft End Finished) Compact FA Series (General Use) PSS |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | NSK Ltd. |
Model No |
PSS1510N1D0979 |
Type of Product |
Standard Ball Screw (Shaft End Finished) Compact FA Series (General Use) PSS |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Monotaro ID |
12472830 |
Import Country |
Direct Import from Japan |
Dimension L1 |
[Screw shaft] 15 mm |
Accuracy |
[Lead variation (vu)] 0.027 [Lead error (ep)] 0.04 |
Dimension L0 (mm) |
[Screw shaft] 979 |
Dimension LA (mm) |
[Screw shaft] 904 |
Stroke |
[Call] 800 [Maximum Lt-L] 846 |
Dimension Lt (mm) |
[Screw shaft] 889 |
Lead |
10 mm |
Nut Total Length (mm) |
43 |
Outer Diameter D (Φmm) |
[Screw] 15 |
