| Model No | RNFCL4080A6S |

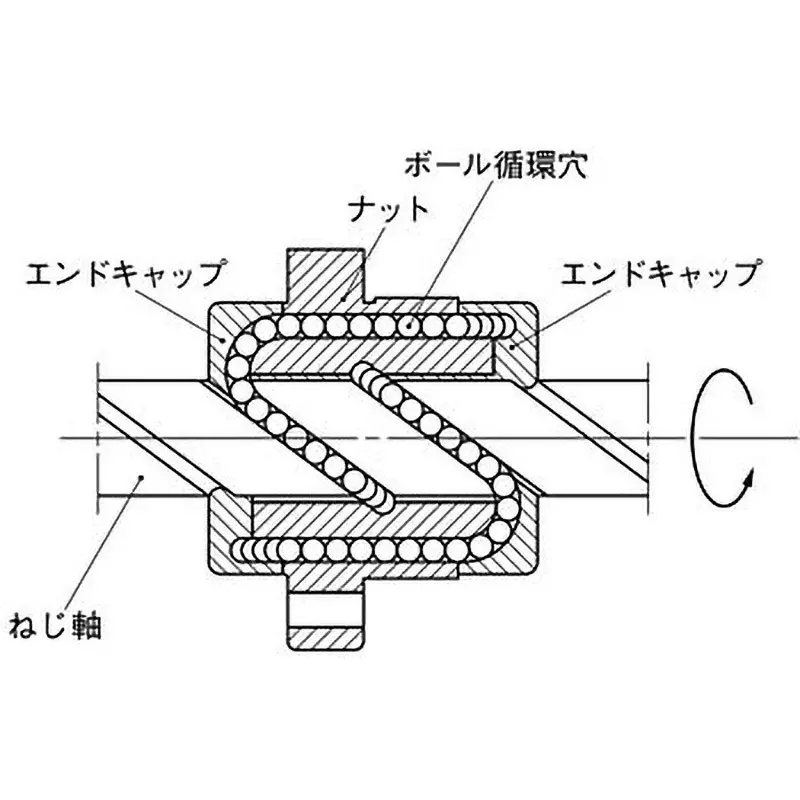

| Type of Product | RNFCL Type Transfer Ball Screw (End Cap Type Single Flange Nut) |
| Seal | With seal |
| Country of Origin | Japan |
Model No |
RNFCL4080A6S |
Type of Product |
RNFCL Type Transfer Ball Screw (End Cap Type Single Flange Nut) |
Seal |
With seal |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Type |
Super large lead |
Monotaro ID |
38402314 |
Import Country |
Direct Import from Japan |

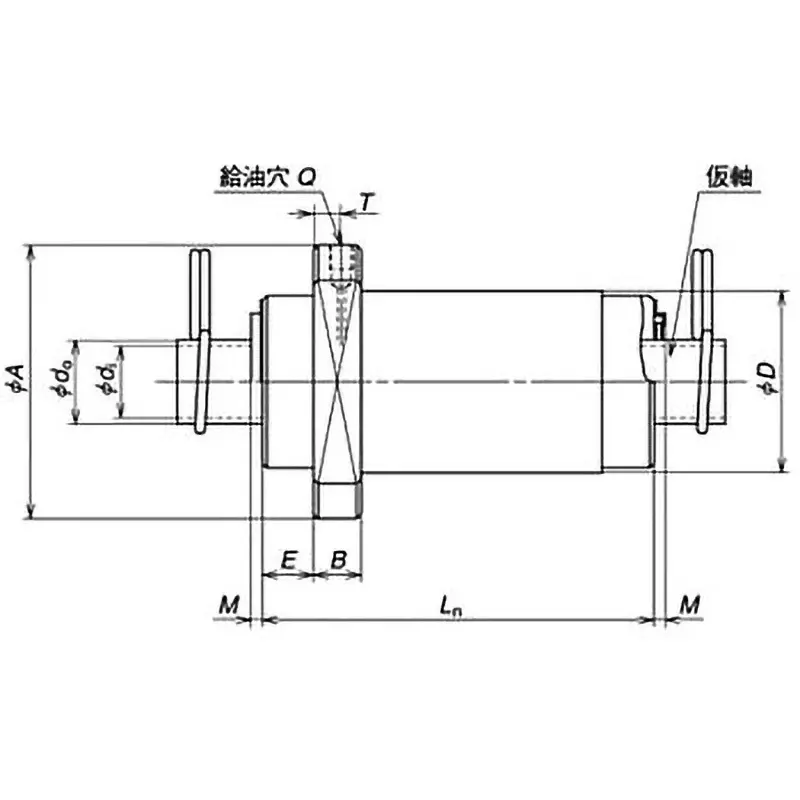

Dimension T |
10 mm |
Lead |
80 mm |
Ball diameter (mm) |
6.35 |
Dimensions H (mm) |
75 |
Dimensions D (mm) |
73 |
Dimensions A (mm) |
114 |
Dimensions E (mm) |
19 |
Dimensions B (mm) |
15 |
Dimension X (mm) |
11 |
Dimension W |
93 mm |
Shaft diameter d1 (Φmm) |
40 |
Effective Number of Turns |
6 |
Pitch Circle Diameter |
41.75 mm |
Root Diameter |
35 mm |
Dimension Q (mm) |
M6x1 |
Clearance |
(Axial maximum) 0.20 mm |
Mass (g) |
3.44 |
Dimensions M (mm) |
3.5 |
