Ships within 25 days
View
View
View
View
| Model No | RNFTL1404A3.5S |

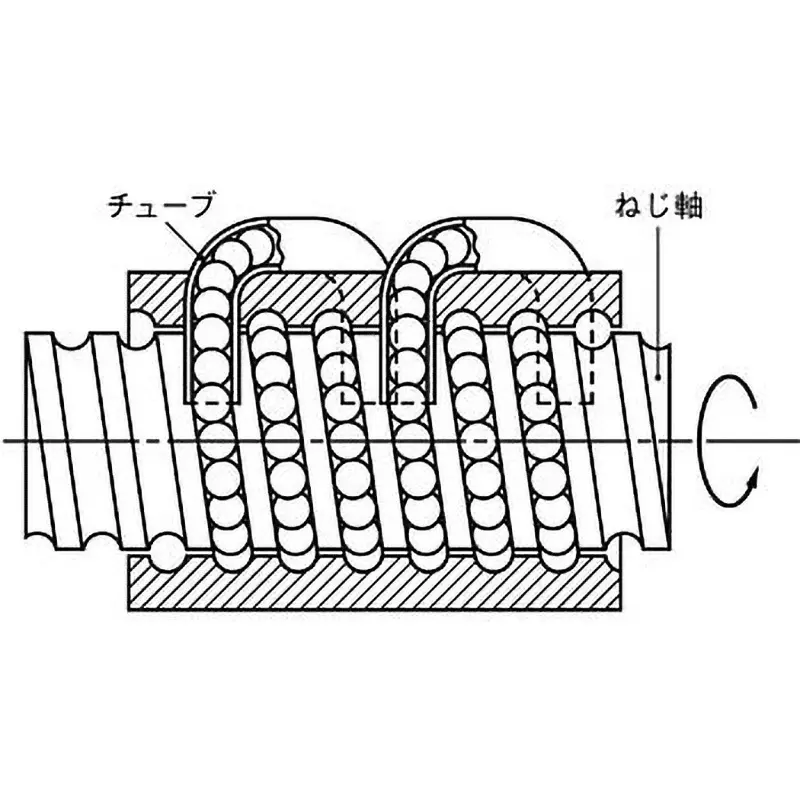

| Type of Product | RNFTL Type Rolled Ball Screw for Transfer Equipment (Single Flange Nut) |
| Seal | With seal |
| Country of Origin | Japan |
Model No |
RNFTL1404A3.5S |
Type of Product |
RNFTL Type Rolled Ball Screw for Transfer Equipment (Single Flange Nut) |
Seal |
With seal |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Type |
Small / medium lead |
Monotaro ID |
38402357 |
Import Country |
Direct Import from Japan |

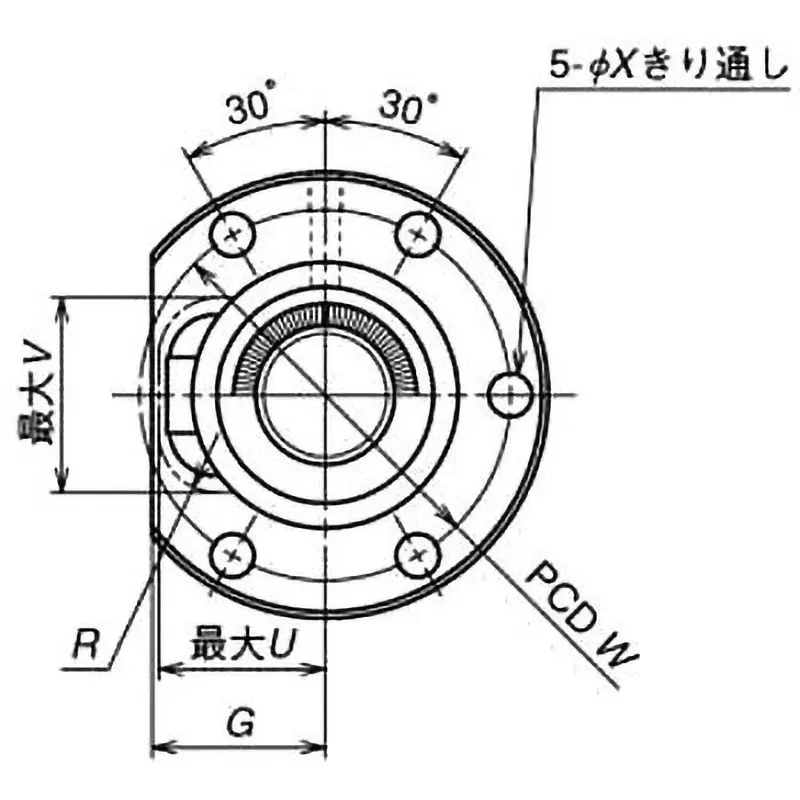

Dimension T |
5 mm |
Lead |
4 mm |
Ball diameter (mm) |
2.778 |
Dimensions D (mm) |
25 |
Dimensions A (mm) |
50 |
Dimensions B (mm) |
10 |
Dimension X (mm) |
4.5 |
Dimension W |
40 mm |
Dimension R |
7 mm |
Shaft diameter d1 (Φmm) |
14 |
Pitch Circle Diameter |
14.5 mm |
Root Diameter |
11.5 mm |
Dimension Q (mm) |
M6x1 |
Dimension V (mm) |
20 |
Clearance |
(Maximum in axial direction) 0.10 mm |
Mass (g) |
0.2 |
Dimension U (mm) |
19 |
Dimensions g (mm) |
19 |
