| Model No | W2503SS-1P-C5Z4 |

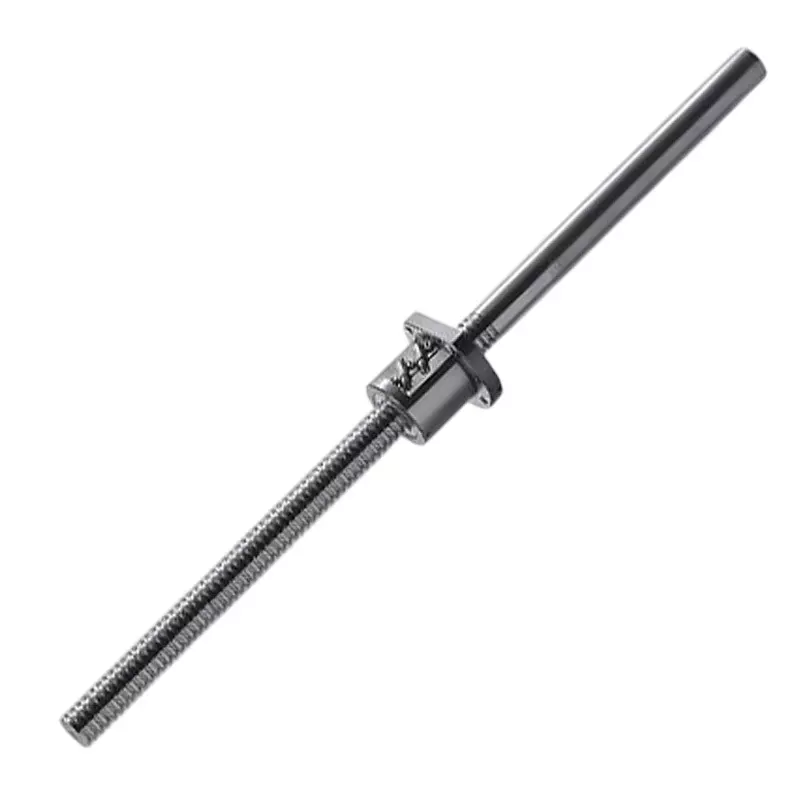

| Type of Product | Standard Ball Screw (Unmachined Shaft End) Machine Tool Ball Screw SS |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | NSK Ltd. |
Model No |
W2503SS-1P-C5Z4 |
Type of Product |
Standard Ball Screw (Unmachined Shaft End) Machine Tool Ball Screw SS |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Monotaro ID |
12458945 |
Import Country |
Direct Import from Japan |
Specifications |
[Diameter] 25 [Valley diameter (dr)] 22.8 |
Stroke |
[Maximum Lt-Ln] 252 |
Lead |
4 mm |
Ball diameter (mm) |
(Dw) 2.381 |
Shaft diameter d1 (Φmm) |
25 |
Pitch Circle Diameter |
Ball pitch (dm): 25.3 mm |
Effective Turns Number (circuit) |
2.5x2 |
Preload (n) |
290 |
Basic load rating Coa (N) |
[Static rating] 13600 |
Basic load rating Ca (N) |
[Dynamic rating] 7110 |
