| Model No | RNFTL3610A2.5S |
| Type of Product | RNFTL Type Rolled Ball Screw for Transfer Equipment (Single Flange Nut) |
| Seal | With seal |
| Country of Origin | Japan |
Model No |
RNFTL3610A2.5S |
Type of Product |
RNFTL Type Rolled Ball Screw for Transfer Equipment (Single Flange Nut) |
Seal |
With seal |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Type |
Small / medium lead |
Monotaro ID |
38402585 |
Import Country |
Direct Import from Japan |

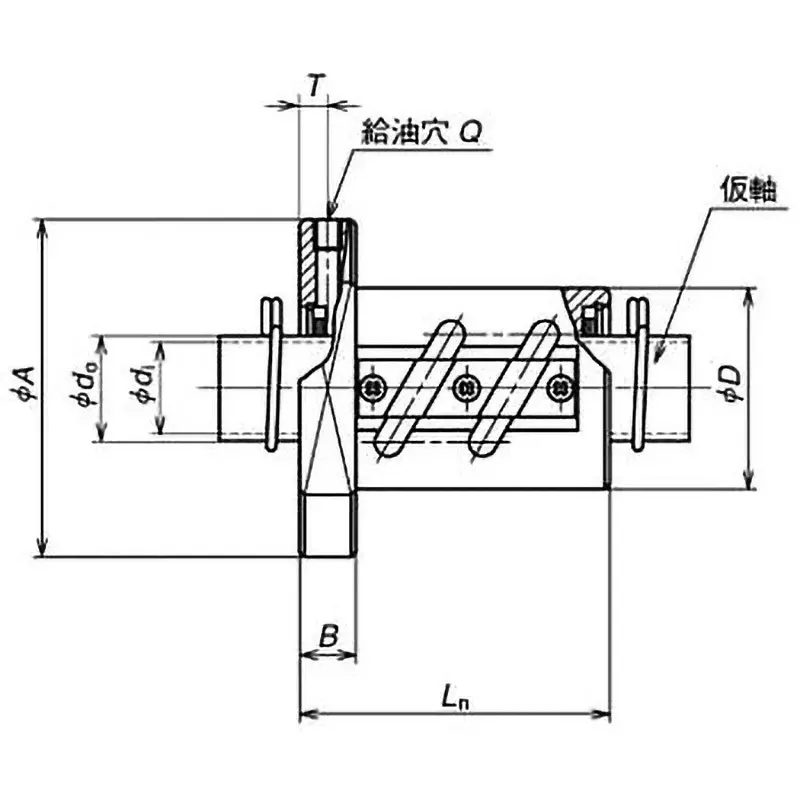

Dimension T |
9 mm |
Lead |
10 mm |
Ball diameter (mm) |
6.35 |
Dimensions D (mm) |
60 |
Dimensions A (mm) |
102 |
Dimensions B (mm) |
18 |
Dimension X (mm) |
11 |

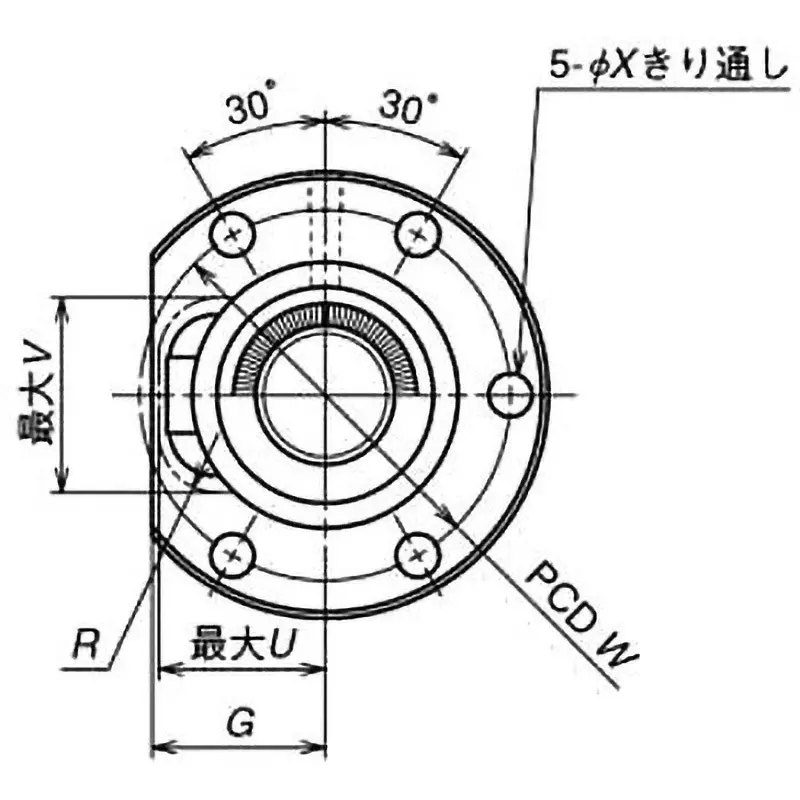

Dimension W |
80 mm |
Dimension R |
17 mm |
Shaft diameter d1 (Φmm) |
36 |
Pitch Circle Diameter |
37 mm |
Root Diameter |
30 mm |
Dimension Q (mm) |
M6x1 |
Dimension V (mm) |
46 |
Clearance |
(Axial maximum) 0.20 mm |
Mass (g) |
1.47 |
Dimension U (mm) |
42 |
Dimensions g (mm) |
42 |
