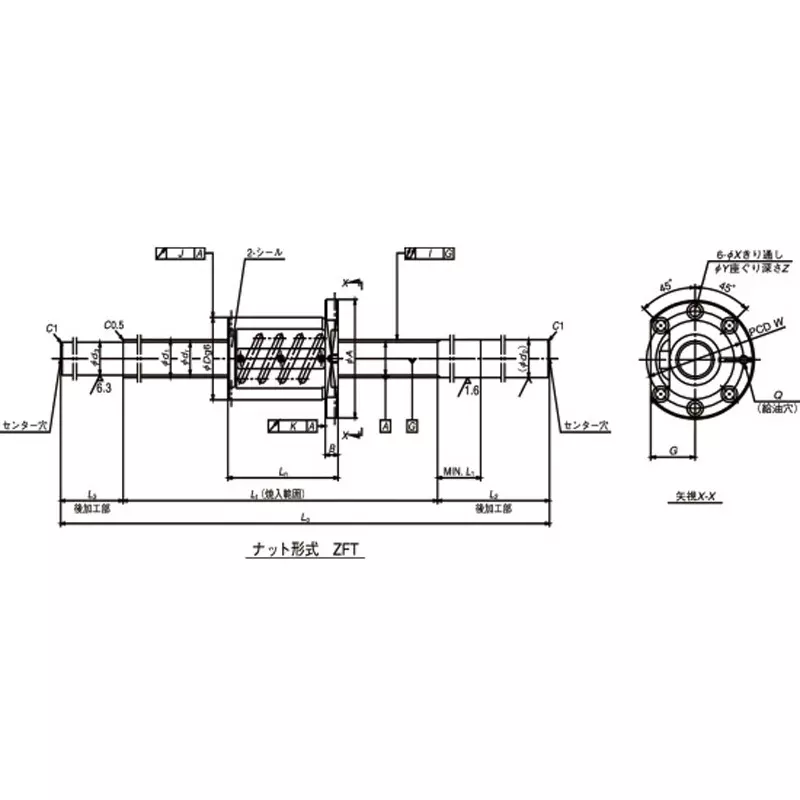

| Model No | W3206SS-6ZY-C5Z5 |

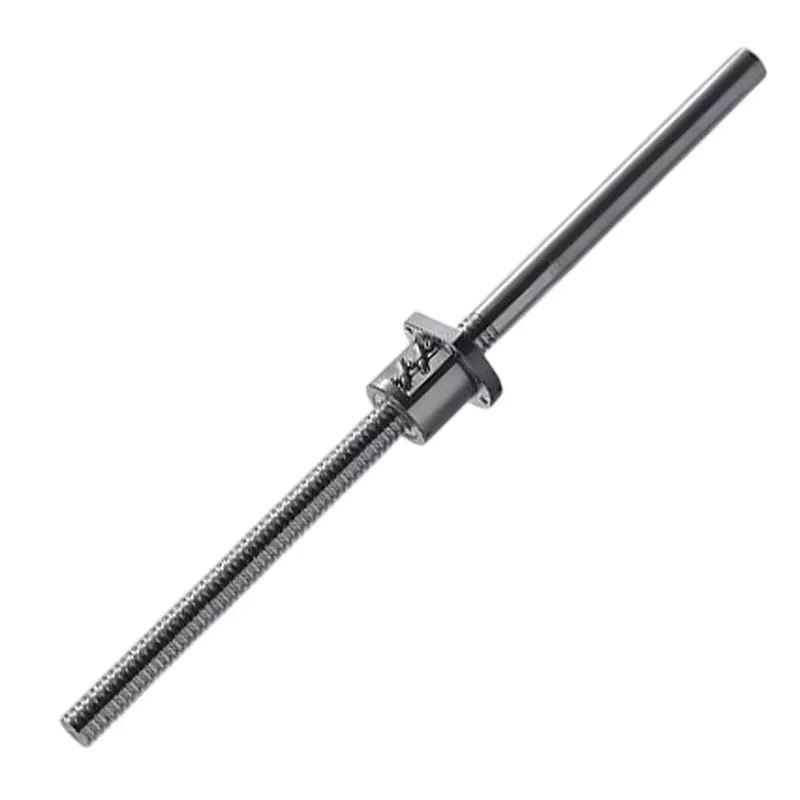

| Type of Product | Standard Ball Screw (Unfinished Shaft End) Machine Tool Ball Screw SS |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | NSK Ltd. |
Model No |
W3206SS-6ZY-C5Z5 |
Type of Product |
Standard Ball Screw (Unfinished Shaft End) Machine Tool Ball Screw SS |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Monotaro ID |
12461438 |
Import Country |
Direct Import from Japan |
Specifications |
[Diameter] 32 |
Stroke |
[Maximum Lt-Ln] 523 |
Lead |
5 mm |
Ball diameter (mm) |
(Dw) 3.175 |
Pitch Circle Diameter |
Ball pitch (dm): 32.75 mm |
Effective Turns Number (circuit) |
4 |
Root Diameter |
[Screw shaft (dr)] 29.4 mm |
Preload (n) |
1080 |
Basic load rating Coa (N) |
[Static rating] 40600 |
Basic load rating Ca (N) |
[Dynamic rating] 16800 |
Outer Diameter d1 (Φmm) |
[Axis] 32 |
