Ships within 25 days
View
View
View
View
| Model No | RNFCL2550A6S |

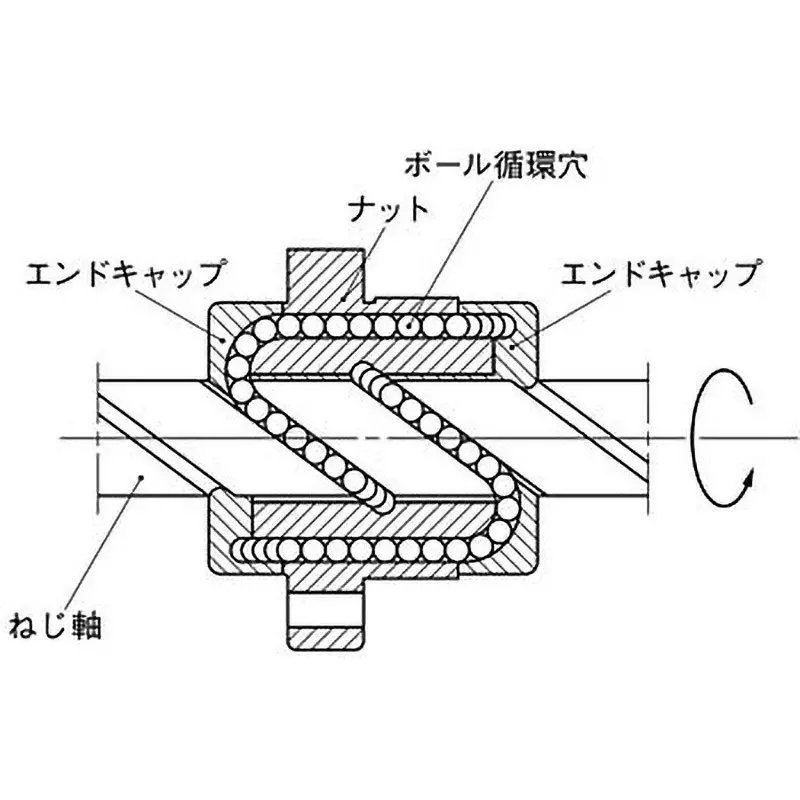

| Type of Product | RNFCL Type Transfer Ball Screw (End Cap Type Single Flange Nut) |
| Seal | With seal |
| Country of Origin | Japan |
Model No |
RNFCL2550A6S |
Type of Product |
RNFCL Type Transfer Ball Screw (End Cap Type Single Flange Nut) |
Seal |
With seal |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Type |
Super large lead |
Monotaro ID |
38402235 |
Import Country |
Direct Import from Japan |

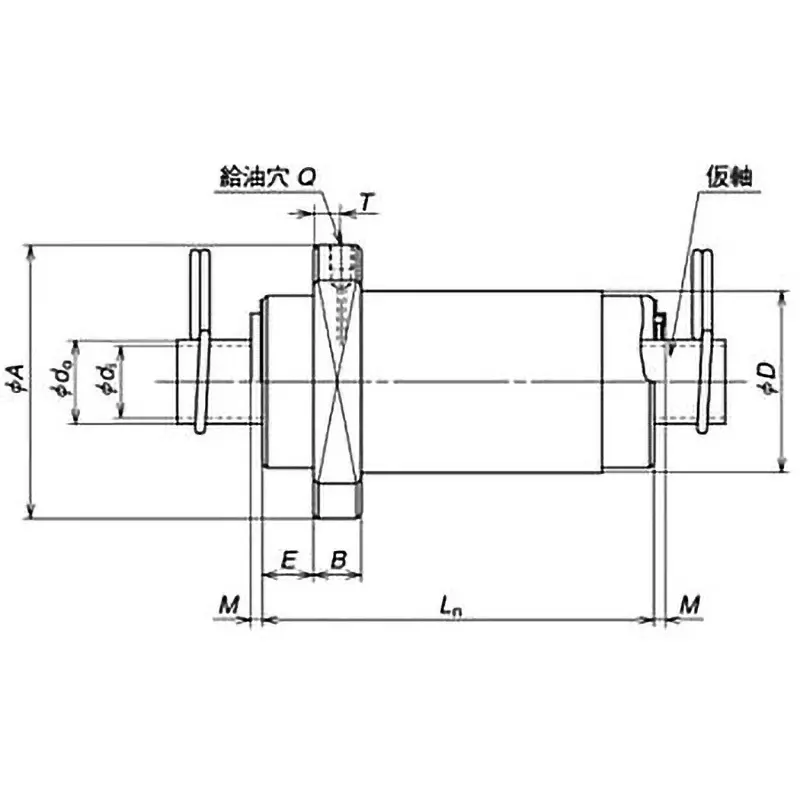

Dimension T |
7 mm |
Lead |
50 mm |
Ball diameter (mm) |
3.9689999999999999 |

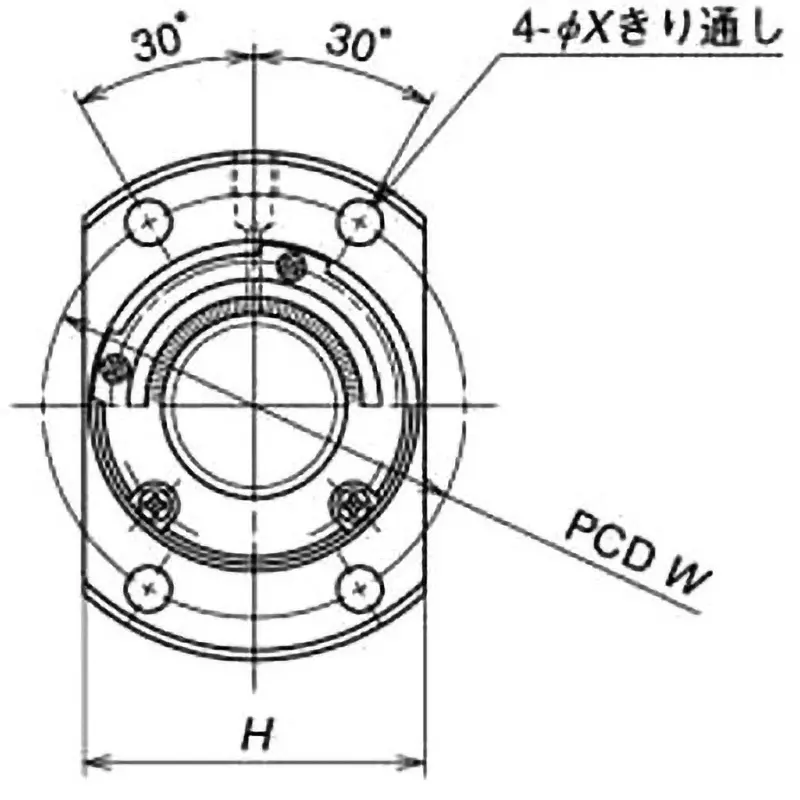

Dimensions H (mm) |
48 |
Dimensions D (mm) |
46 |
Dimensions A (mm) |
70 |
Dimensions E (mm) |
13 |
Dimensions B (mm) |
12 |
Dimension X (mm) |
6.6 |
Dimension W |
58 mm |
Shaft diameter d1 (Φmm) |
25 |
Effective Number of Turns |
6 |
Pitch Circle Diameter |
26 mm |
Root Diameter |
22 mm |
Dimension Q (mm) |
M6x1 |
Clearance |
(Maximum in axial direction) 0.12 mm |
Mass (g) |
0.91 |
Dimensions M (mm) |
3 |
