| Model No | HSS5010N1D2350 |

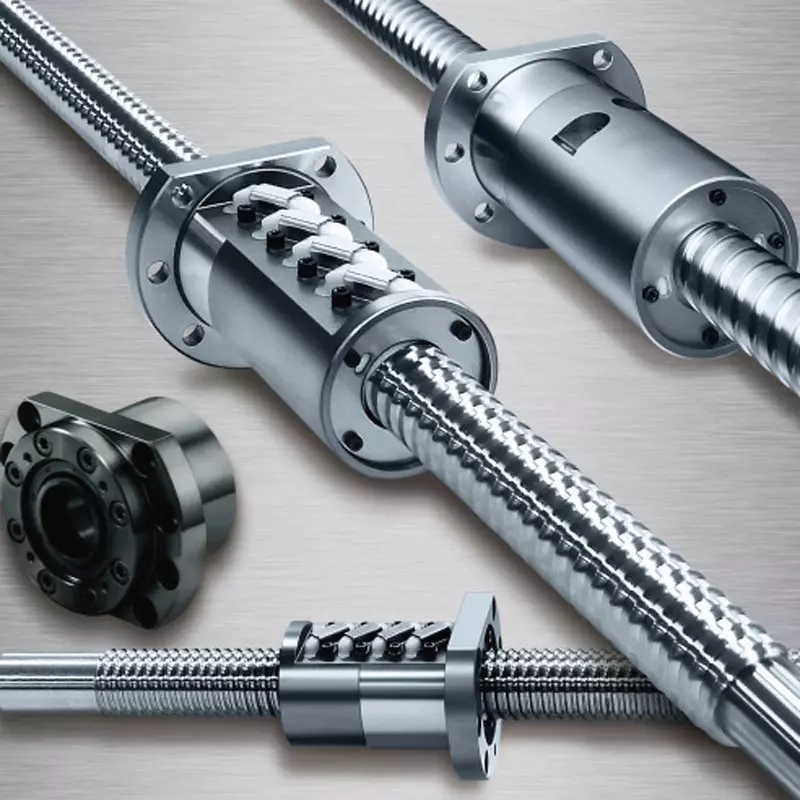

| Type of Product | Standard Ball Screw (Unfinished Shaft End) High Speed Ss Series HSS |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | NSK Ltd. |
Model No |
HSS5010N1D2350 |
Type of Product |
Standard Ball Screw (Unfinished Shaft End) High Speed Ss Series HSS |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Monotaro ID |
12458130 |
Import Country |
Direct Import from Japan |
Lead |
10 mm |
Ball diameter (mm) |
(Dw) 6.35 |
Outer Diameter D (Φmm) |
[Axis] 50 |
Pitch Circle Diameter |
Ball pitch (dm): 51 mm |
Effective Turns Number (circuit) |
2.5x2 |
Root Diameter |
[Screw shaft dr] 44.4 mm |
Torque Value (Ncm) |
[Dynamic friction] 92 |
Preload (n) |
2880 |
Diameter (Φmm) |
[Screw shaft] 50 |
Basic load rating Coa (N) |
[Static rating] 174000 |
Basic load rating Ca (N) |
[Dynamic rating] 68100 |
