Ships within 25 days
View
View
View
View
| Model No | PSS2020N1D1835 |

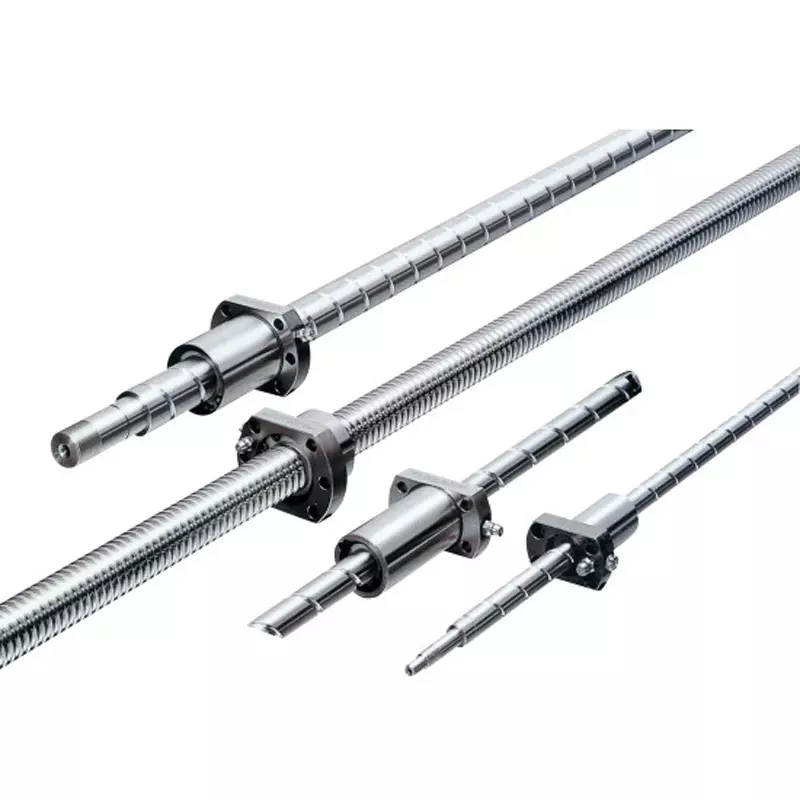

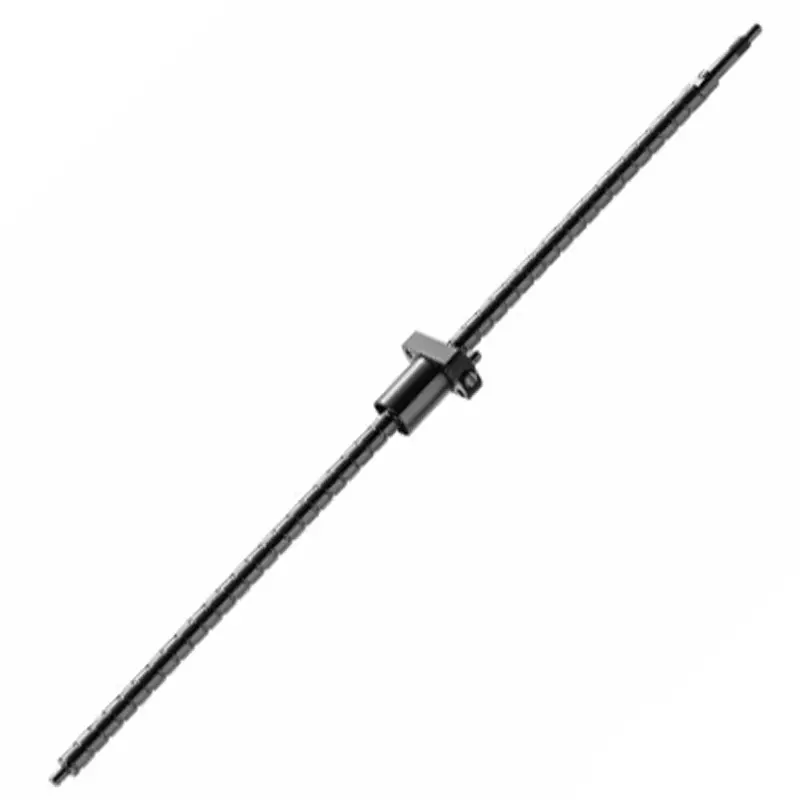

| Type of Product | Standard Ball Screw (Shaft End Finished) Compact FA Series (General Use) PSS |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | NSK Ltd. |
Model No |
PSS2020N1D1835 |
Type of Product |
Standard Ball Screw (Shaft End Finished) Compact FA Series (General Use) PSS |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Monotaro ID |
12470809 |
Import Country |
Direct Import from Japan |

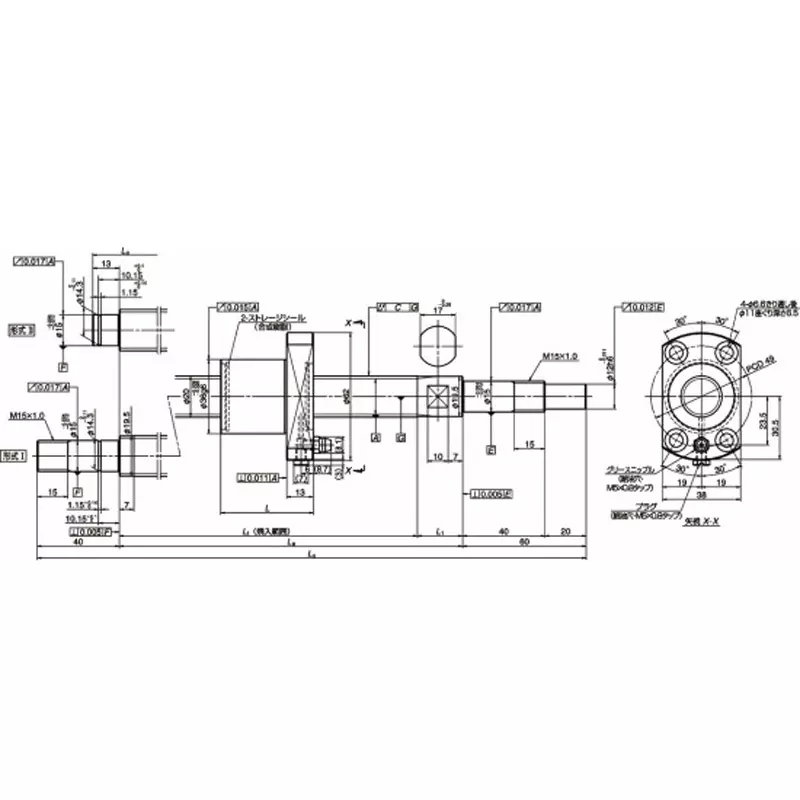

Dimension L1 |
[Screw shaft] 22 mm |
Accuracy |
[Lead variation (vu)] 0.04 [Lead error (ep)] 0.065 |
Dimension L0 (mm) |
[Screw shaft] 1835 |
Dimension LA (mm) |
[Screw shaft] 1735 |
Stroke |
[Call] 1600 [Maximum Lt-L] 1659 |
Dimension Lt (mm) |
[Screw shaft] 1713 |
Lead |
20 mm |
Nut Total Length (mm) |
54 |
Outer Diameter D (Φmm) |
[Screw] 20 |
