Ships within 25 days
View
View
View
View
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | MinebeaMitsumi Inc. |

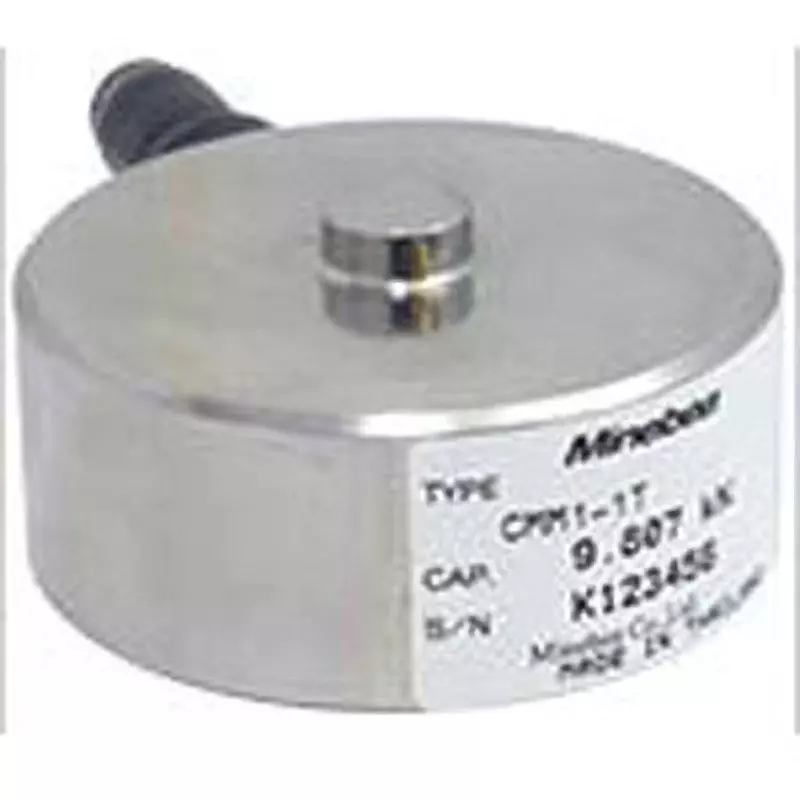

| Type of Product | Load Cell |
| Model No | CMM1J-500K |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
MinebeaMitsumi Inc. |
Type of Product |
Load Cell |
Model No |
CMM1J-500K |
Material |
(Strain-generating body) Stainless steel |
Monotaro ID |
72771818 |
Protection Class |
IP67 equivalent |
Import Country |
Direct Import from Japan |
Rated Capacity |
4.903kN(500kgf) |
Rated Output |
2mV/V±0.005mV/V |
Vibration Frequency |
7000 Hz |
Specifications |
Hysteresis: 0.1% RO, Zero balance: ±0.06 mV/V, Temperature effect of zero point: 0.05% RO/10, Temperature effect of output: 0.1% LOAD/10, |
Max. Displacement |
0.07 mm |
Applicable Voltage (V) |
18 |
Mass (Kg) |
About 0.34 |
Insulation Resistance (MOhm) |
2000 mohm or more (50 VDC) (between bridge and main unit) |
Repeatability |
0.05%R.O. |
Temperature Compensation |
-10 to 70℃ |
Service Life |
1,000,000 cycles at rated capacity |
Cable |
Optional accessory (model RC019-6M): Φ6.3 4-core shielded robot cable, 6m, with R04-P6F connector on the load cell end and Y-type crimp terminal on the indicator end. |
