| Weight Per box (kg) | 20 Kg |
| Size | 5 x 450 mm |
| Electrode Diameter | 5 mm |
| Suitable For | Heavy joints in C-Mn steels under restraint and subjected to dynamic loading, especially for low-temperature applications & joining ASTM SA414/414 M Gr/D, SA516/516 M Gr.55/60/65/70, and IS 2062 steels |
Weight Per box (kg) |
20 Kg |
Size |
5 x 450 mm |
Electrode Diameter |
5 mm |
Suitable For |
Heavy joints in C-Mn steels under restraint and subjected to dynamic loading, especially for low-temperature applications & joining ASTM SA414/414 M Gr/D, SA516/516 M Gr.55/60/65/70, and IS 2062 steels |
Electrode Length |
450 mm |

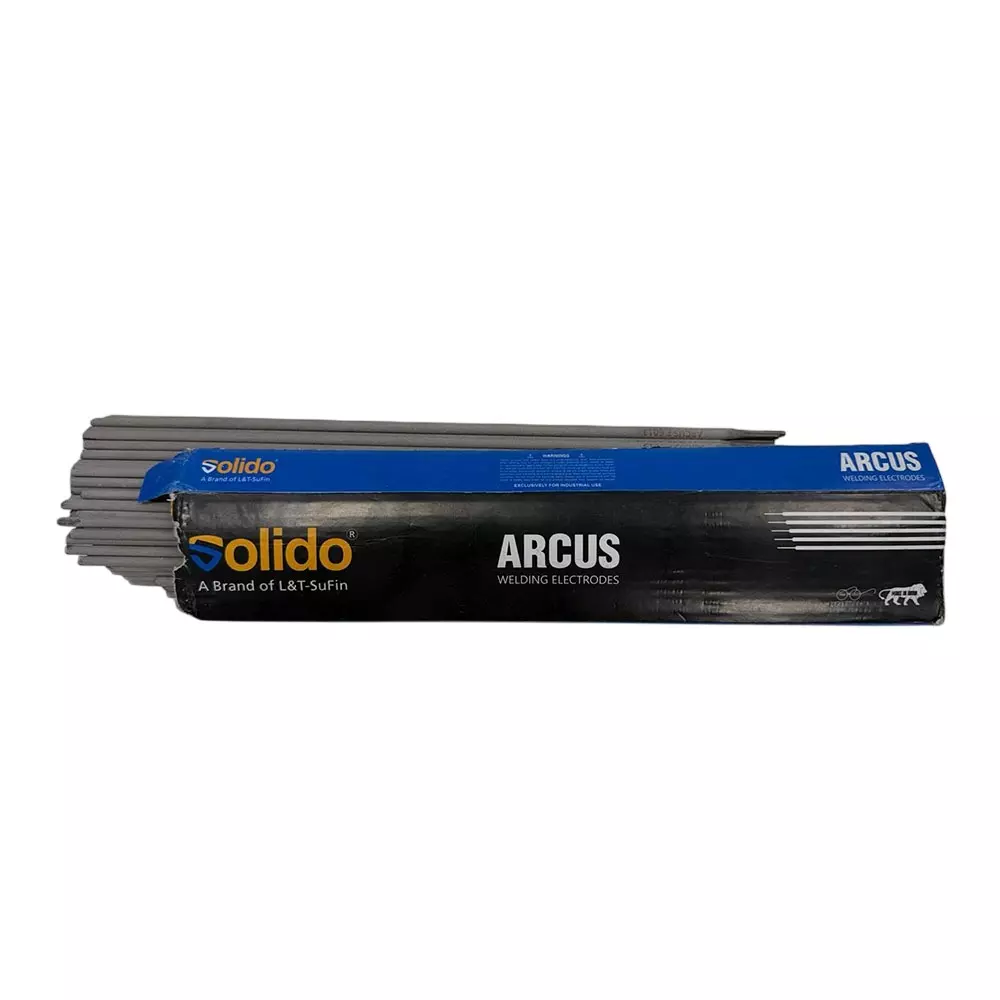

Type of Product |
Low Hydrogen Welding Electrodes |
Model No |
Arcus - 7018-1 |
Country of Origin |
China |
Classification |
AWS A5.1: E7018-1 IS 814: EB 5629H3JX |

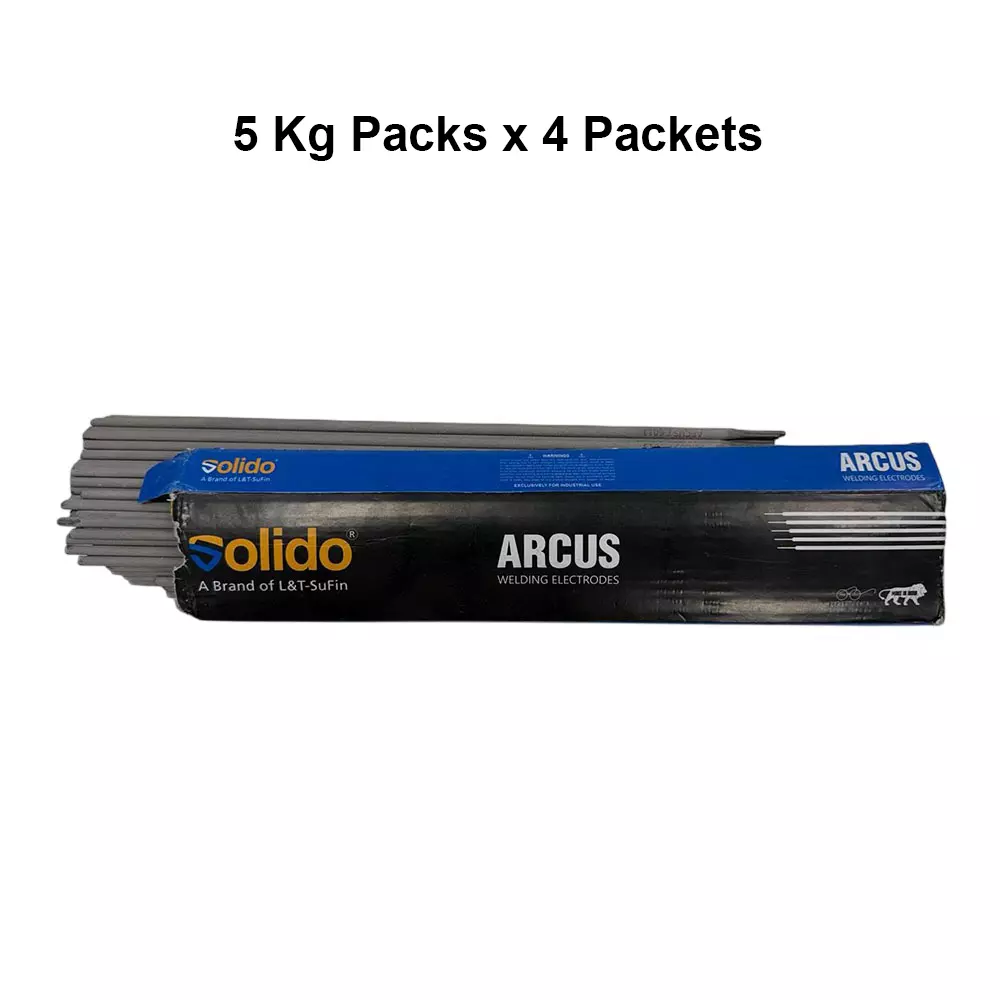

Package Contains |
5 Kg Packs x 4 Packets |
Name of Manufacturer/Packer/Importer |
RBS 3 ENTERPRISES |
Current Type |
AC/DC (+) |
Current |
180-230 A |
Chemical Composition |
C - 0.04–0.09%, Mn - 0.80–1.60%, Si - 0.25–0.45%, S - 0.015%, P - 0.015% |
Redrying Condition |
300°C for one hour before use |
