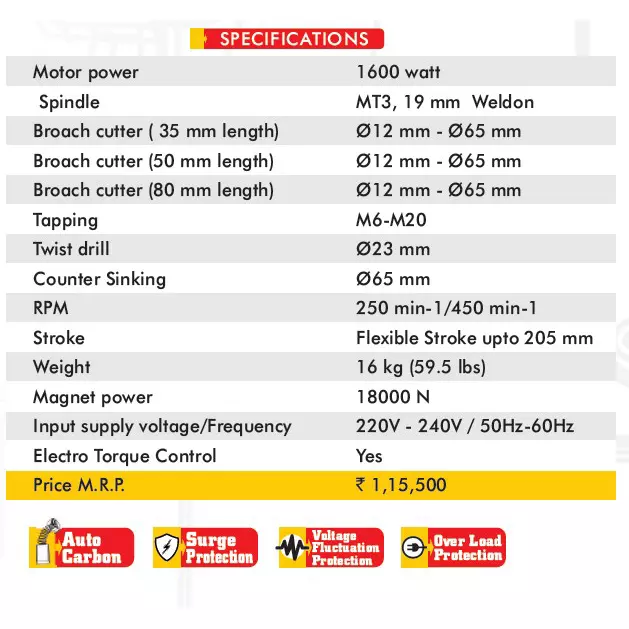

| Weight | 16 Kg |

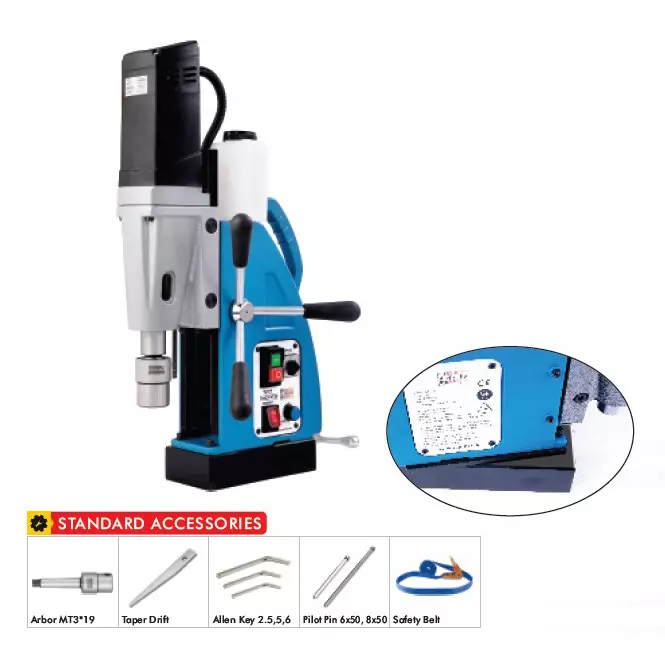

| Package Contains | 1 x Main Unit (Without Drill Bit), 1 x Arbor MT3x19, 1 x Taper Drift, 3 x Allen Keys (2.5, 5, 6), 2 x Pilot Pins (6x50, 8x50), 1 x Safety Belt |
| broach cutter | 35/50/80 mm Length: Ø12 mm - Ø65 mm |
| Stroke | Flexible Stroke Upto 205 mm |
Weight |
16 Kg |
Package Contains |
1 x Main Unit (Without Drill Bit), 1 x Arbor MT3x19, 1 x Taper Drift, 3 x Allen Keys (2.5, 5, 6), 2 x Pilot Pins (6x50, 8x50), 1 x Safety Belt |
broach cutter |
35/50/80 mm Length: Ø12 mm - Ø65 mm |
Stroke |
Flexible Stroke Upto 205 mm |
Tapping |
M6-M20 |
Frequency |
50-60 Hz |
Type of Product |
Magnetic Core Drilling Machine |
Model No |
SWC 65 WT SB |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Schifler Werkzeuge & Company Pvt. Ltd |
Twist Drill |
Ø23 mm |
Spindle |
MT3, 19 mm Weldon |
Counter Sink |
Ø65 mm |
Input Voltage |
220-240 V |
Magnetic Power |
18000 N |
Motor Power (w) |
1600 W |
Protection |
Surge Protection, Voltage Fluctuation Protection, Overload Protection, Auto Carbon |
Rpm |
250-450 RPM |
Controls Type |
Electro Torque Control |
Base Type |
Swivel Base |
