| Type of Product | Dial Type Torque Wrench |
| Model No | N50TOK-G |
| Square Drive (mm) | 9.53 |
| Part No | 64-8615-72 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Dial Type Torque Wrench |
Model No |
N50TOK-G |
Square Drive (mm) |
9.53 |
Part No |
64-8615-72 |
Application |
For inspection |
Type |
Dial type / head exchange type |
Load direction |
Left and right |
Head Shape |
Replaceable head |
Overall Length (mm) |
333 |
Minimum Scale (Nm) |
0.5 |
Torque Adjustment Range (Nm) |
5 to 50 |
Monotaro ID |
19266248 |
Accuracy (%) |
±3 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Mass (Kg) |
0.61 |
RoHS Directive |
Correspondence |
Name of Manufacturer/Packer/Importer |
Nakamura Manufacturing Co., Ltd. |

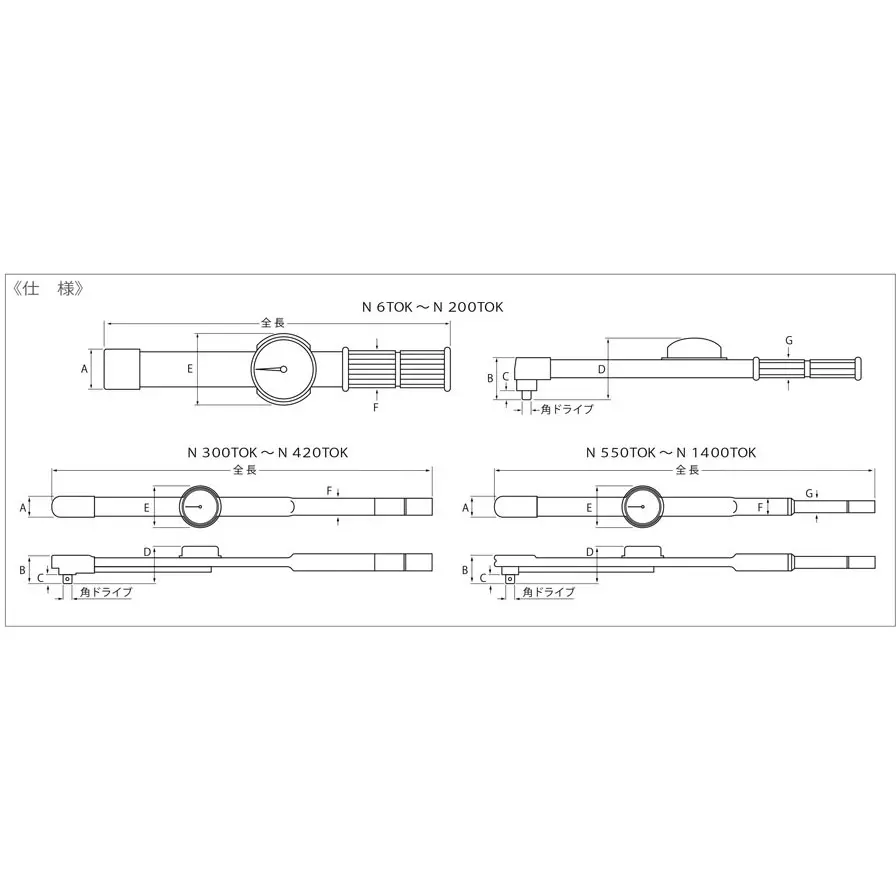

Dimension D (Φmm) |
60 |
Dimension B (Φmm) |
43 |
Dimension C (Φmm) |
11 |
Dimension A (Φmm) |
35 |
Dimension G |
21.5 mm |
Dimension F (Φmm) |
37 |
Dimension E (Φmm) |
91.5 |
