| Type of Product | Preset Type Torque Wrench |
| Square Drive (mm) | 12.7 mm |
| Application | For inspection / tightening |
| Type | Digital type |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Preset Type Torque Wrench |
Square Drive (mm) |
12.7 mm |
Application |
For inspection / tightening |
Type |
Digital type |
Mass |
550 g |
Included Components |
Calibration certificate (with traceability system diagram), instruction manual, resin case |
Load direction |
Right |
Head Shape |
Ratchet shape |
Minimum Scale (Nm) |
0.5 cNm |
Torque Adjustment Range (Nm) |
10 to 50 |
Monotaro ID |
36937214 |
Accuracy (%) |
±3 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Calibration Certificate |
Compliant |
Pack of |
Each of 1 Pcs |
Mass (Kg) |
0.55000000000000004 |
Name of Manufacturer/Packer/Importer |
TONE Co., Ltd. |
Trusco Part No. |
321-2653 |
Operation Force at Maximum Torque (N) |
227 |

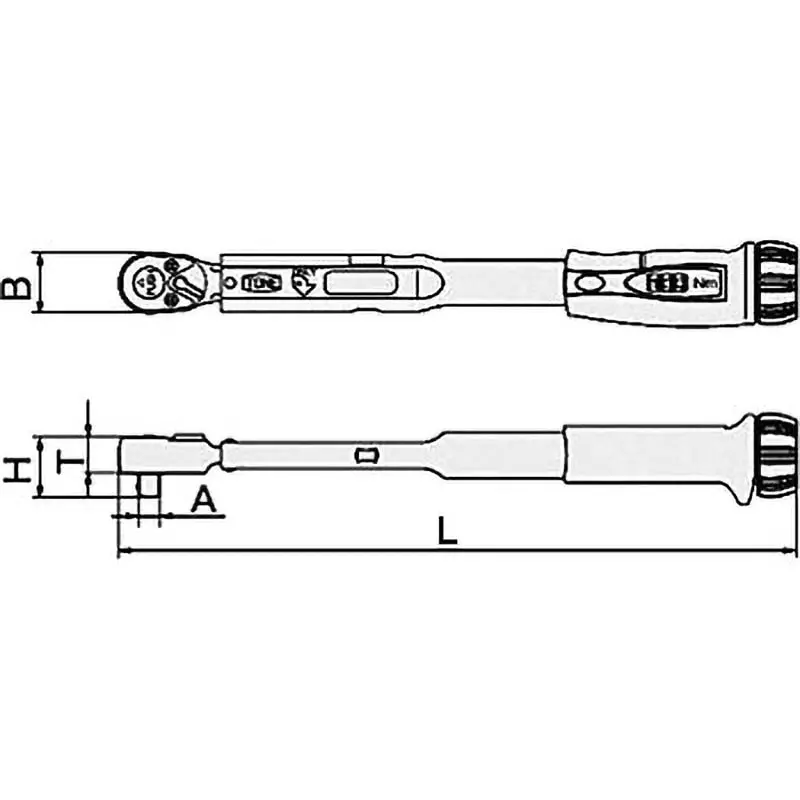

Overall Length L |
308 |
Product Code |
T4MN50H |
Dimension H (Φmm) |
30 |
Dimension B (Φmm) |
36 |
Dimension T |
14 |
Case Dimensions (mm) |
355x97x75 |
Applicable bolt diameter |
(Normal) M10, (High strength) M8 |
Drive Angle A (mm) |
12.7 |
