| Type of Product | Preset Type Torque Wrench |
| Square Drive (mm) | 9.5 mm |
| Application | For inspection / tightening |
| Type | Digital type |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Preset Type Torque Wrench |
Square Drive (mm) |
9.5 mm |
Application |
For inspection / tightening |
Type |
Digital type |
Mass |
300 g |
Included Components |
Calibration certificate (with traceability system diagram), instruction manual, resin case |
Load direction |
Right |
Head Shape |
Ratchet shape |
Minimum Scale (Nm) |
0.2 cNm |
Torque Adjustment Range (Nm) |
4 to 20 |
Monotaro ID |
36937162 |
Accuracy (%) |
±3 |
Country of Origin |
Japan |
Calibration Certificate |
Compliant |
Pack of |
Each of 1 Pcs |
Mass (Kg) |
0.3 |
Name of Manufacturer/Packer/Importer |
TONE Co., Ltd. |
Trusco Part No. |
321-2602 |
Operation Force at Maximum Torque (N) |
110 |

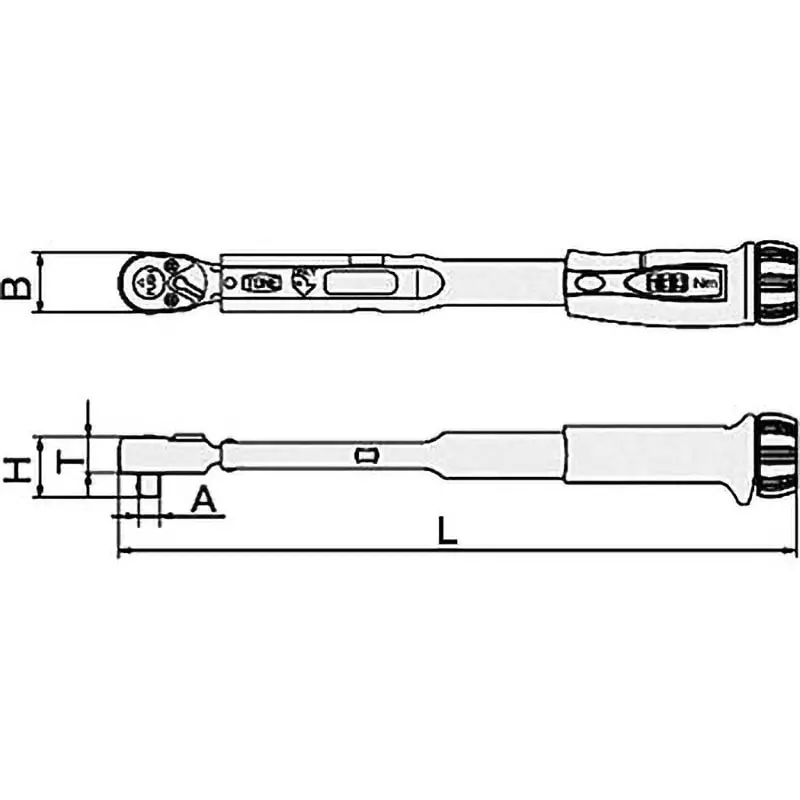

Overall Length L |
253 |
Product Code |
T3MN20H |
Dimension H (Φmm) |
21.4 |
Dimension B (Φmm) |
24 |
Dimension T |
10.4 |
Case Dimensions (mm) |
355x97x75 |
Applicable bolt diameter |
(Normal) M6-M8, (High strength) M5-6 |
Drive Angle A (mm) |
9.5 |
