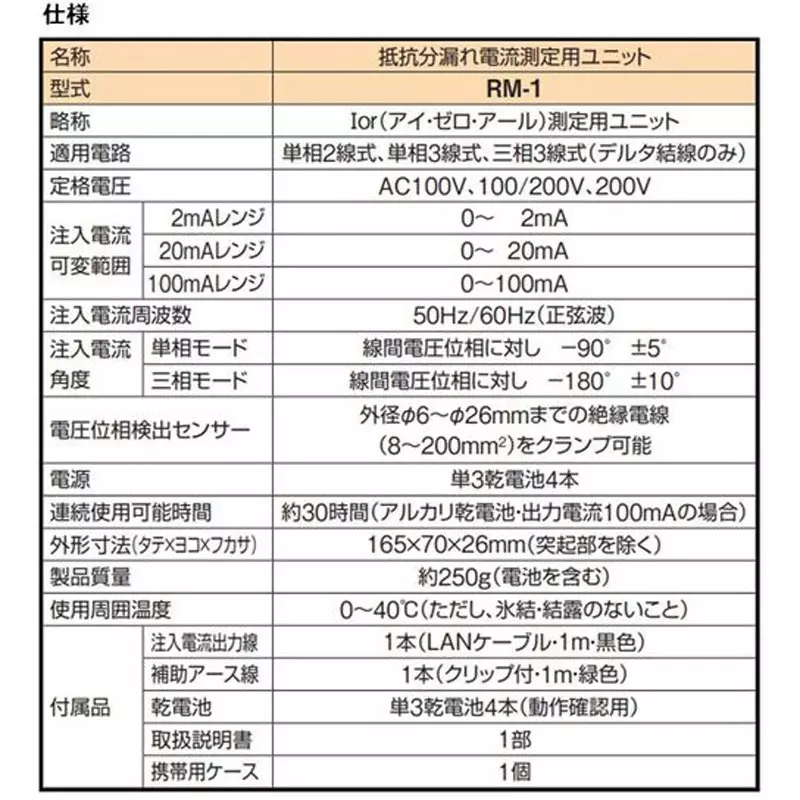

| Range | [Injection Current 2mA Range] 0-2mA, [Injection Current 20mA Range] 0-20mA, [Injection Current 100mA Range] 0-100mA |
| Type of Product | Measurement Unit |

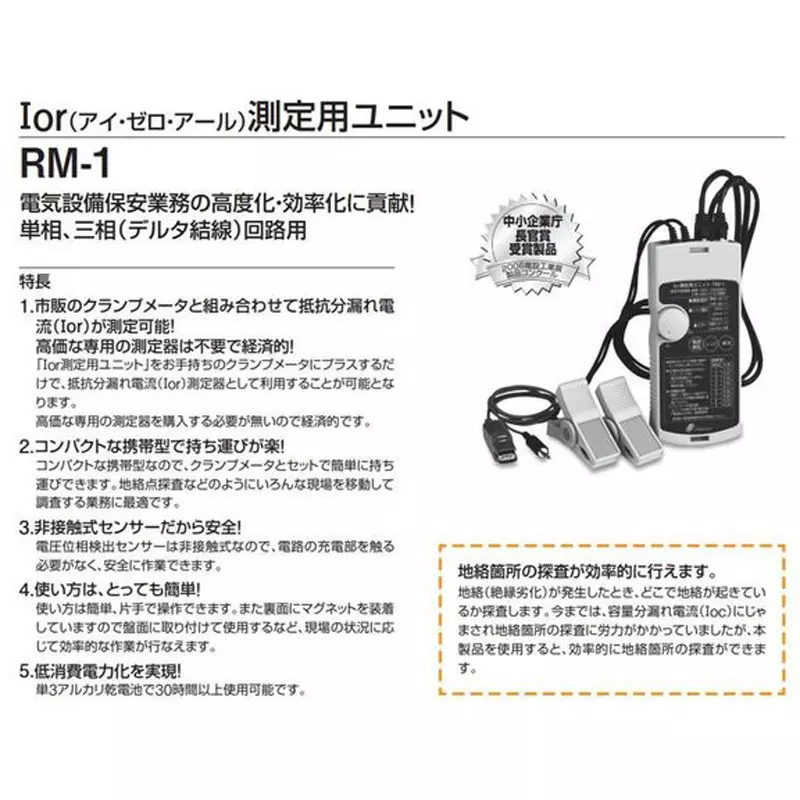

| Model No | RM1S |
| Country of Origin | Japan |
Range |
[Injection Current 2mA Range] 0-2mA, [Injection Current 20mA Range] 0-20mA, [Injection Current 100mA Range] 0-100mA |
Type of Product |
Measurement Unit |
Model No |
RM1S |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Tenpearl Industries Co., Ltd. |
Suitable For |
[Electrical Circuits] Single-phase 2-wire system, single-phase 3-wire system, three-phase 3-wire system (delta connection only) |
Type |
Alarm devices, measuring instruments |
Included Components |

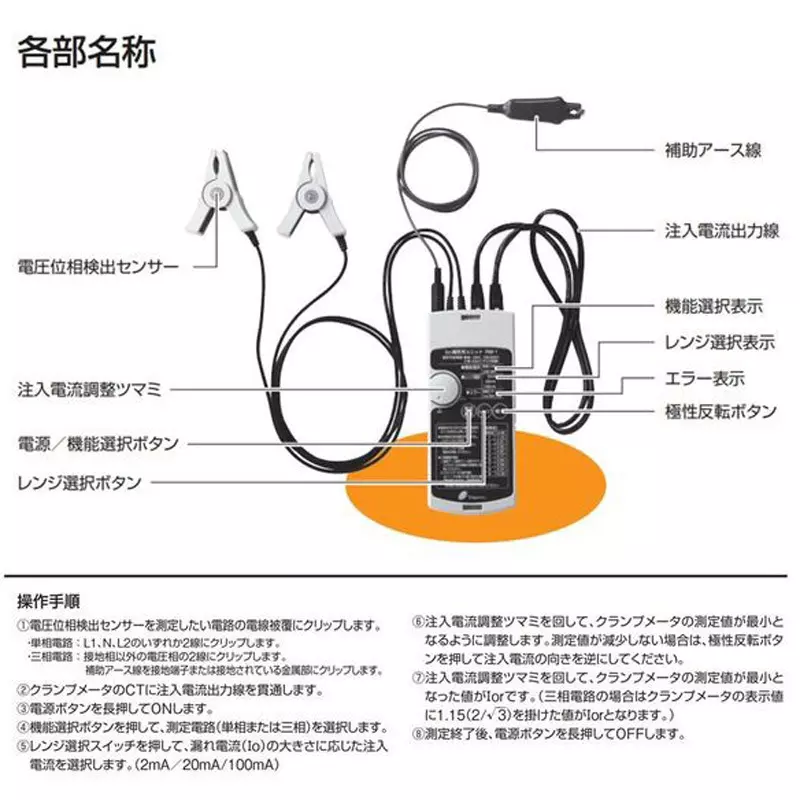

Includes: 1 injection current output wire (LAN cable, 1m, black), 1 auxiliary grounding rod (with clip, 1m, green), 4 AA batteries (for testing), 1 instruction manual, and 1 carrying case. |
Import Country |
Direct Import from Japan |
External Depth |
26 mm |
Rated Voltage |
AC100 V, 100 V/200 V, 200 V |
Operation Ambient Temperature (°C) |
0-40°C (but no freezing or condensation) |
Monotaro ID |
72998436 |
Frequency (Hz) |
[Injection current] 50/60 (sine wave) |
Power Supply |
4 AA batteries |
Continuous Use Time |
Approximately 30 hours (using alkaline batteries and an output current of 100mA) |
Mass (Kg) |
About 0.25 |
Operating Temperature Range |
0-40°C, 85% RH or less (non-condensing) |
Offset Angle |
[Injection current, single-phase mode] -90° ±5 relative to the line voltage phase, [Injection current, three-phase mode] -180° ±10 relative to the line voltage phase |
External dimensions (mm) |
70 |
Name |
Measuring instruments |
Sensor |
[Voltage Phase Detection Sensor] Can clamp insulated wires (8-200mm²) with an outer diameter of Φ6 to Φ26 mm |
