| Type of Product | Phase Monitor Relay |
| Phase | Phase Reversal |
| Part No | PMPU-B18 |
| Country of Origin | USA |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Phase Monitor Relay |
Phase |
Phase Reversal |
Part No |
PMPU-B18 |
Country of Origin |
USA |
Time Delay |
0.1 sec |
Under Voltage |
171 to 450 V AC |
Over Voltage |
Fixed 110% of Line Voltage Setting |
Input Voltage |
190 to 500 V AC |
Current Rating |
10 A |
Auto Restart |
Auto Manual |
Relay Mounting Style |
Socket |

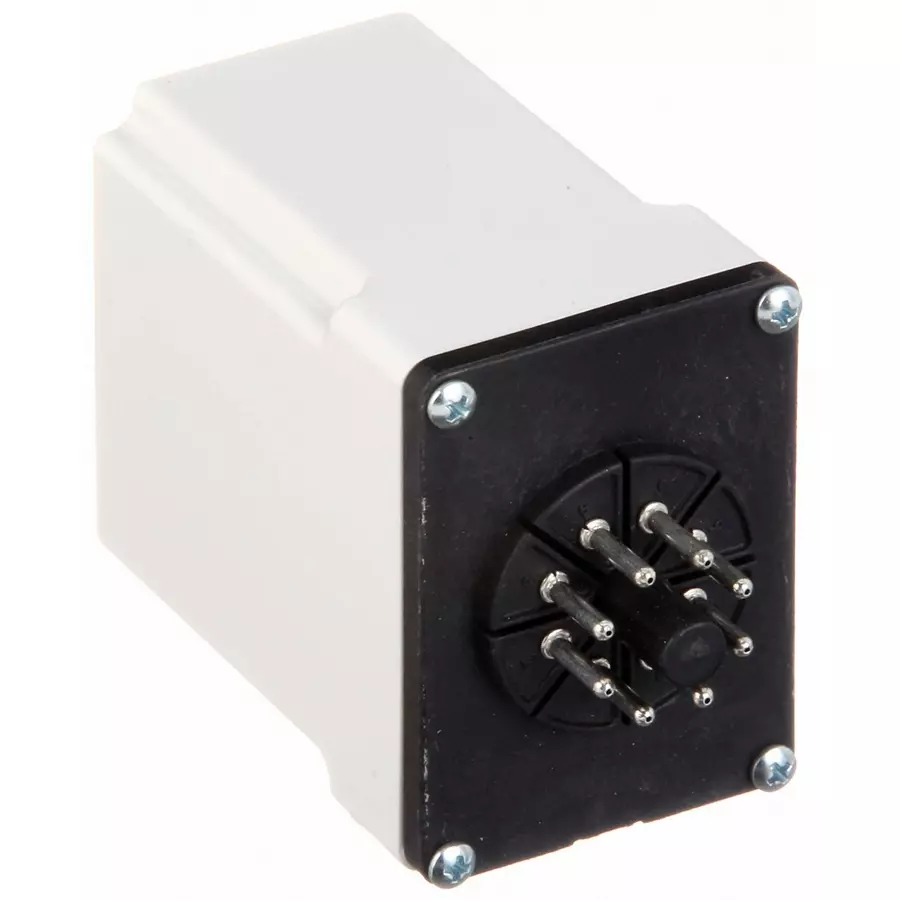

Number of Pin Terminals |
8 |
Delay Time |
1 to 300 sec |
Socket Code |
A |
Body Depth |
2.4 inch |
Body Width |
1.7 inch |
UNSPSC Code |
39121515 |
Phase Loss Sensitivity |
Yes |
Contact Form |
SPDT |
Body Height |
2.9 inch |
Monitors electrical parameters |
OvervoltagePhase LossPhase ReversalPhase UnbalanceUndervoltage |
Ac Contact Rating |
10 A @ 277V |
Dc Contact Rating |
7 A @ 30 V |
Electrical Connections |
Pin |
Phase Unbalance |
6% |
Item Code |
31EE08 |
Height (mm) |
73.66 mm |
