| Monotaro ID | 12624634 |
| Mass (g) | Body 260: (including batteries), turntable: 140 |

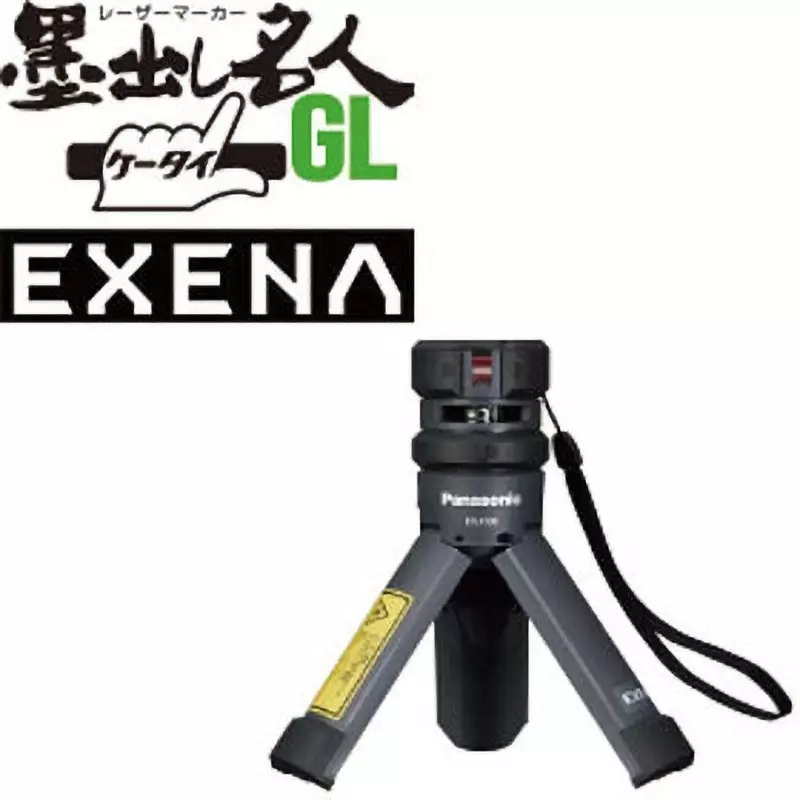

| Type of Product | Sumidashi-Meijin Wall Cross Type |
| Model No | BTL-4100 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Monotaro ID |
12624634 |
Mass (g) |
Body 260: (including batteries), turntable: 140 |
Type of Product |
Sumidashi-Meijin Wall Cross Type |
Model No |
BTL-4100 |
Accuracy |
±3/10 m mm |
Included Components |
Plastic case for BTL4100 BTLX444 |
Output (mW) |
1 or less |
Light Source |
Visible light semiconductor laser/LED (green) |
Power Supply |
3 AA batteries, rechargeable battery (sold separately) |
Wavelength |
520 nm |
Line Width |
3.0 or less/5m mm |

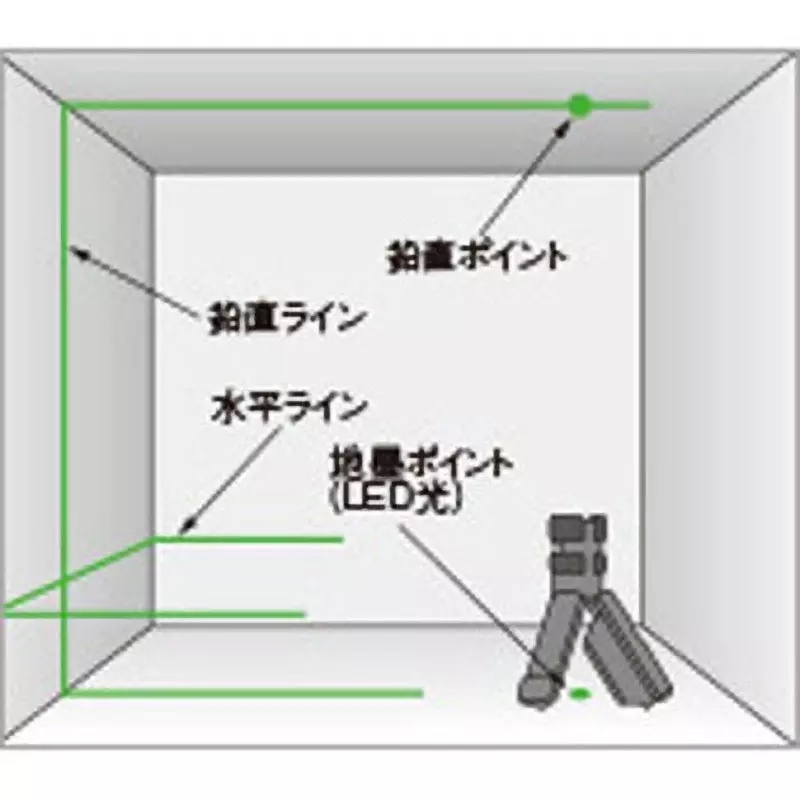

Irradiation Line |
Vertical and horizontal |
Output |
Class 2 JIS C6802: 2014 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Continuous Operating Time (hrs) |
[Alkaline battery] Normal mode: about 6 hours, power mode: about 2 hours (when using Panasonic RL6) [Rechargeable battery (nickel metal hydride battery)] normal mode: about 7 hours, power mode: about 4 hours (Panasonic BK -3MCC/4C 1900mAh) |
Import Country |
Direct Import from Japan |
Wide Angle |
Horizontal: 100° Vertical: 100° |
Time |
[Pulse duration] Normal mode: 2 ms / Power mode: CW, [Line stationary time] Approx. 5 seconds |
Frequency (Hz) |
250 (normal mode) |
Relative Humidity |
85% RH or less |
Diameter x Overall Length (Φmm x mm) |
50 x 168 (when folded) |
Operation Ambient Temperature (°C) |
-5 to +40 |
Format |
Gimbal mechanism |
