| Operating Temperature Range | -10 to 40 ℃ |
| Country of Origin | Japan |
| Display Type | LCD digital 3 digits |
| Power Supply | 2 AA alkaline batteries |
Operating Temperature Range |
-10 to 40 ℃ |
Country of Origin |
Japan |
Display Type |
LCD digital 3 digits |
Power Supply |
2 AA alkaline batteries |
Type of Product |
Oxygen Concentration Meter |
Cable Length (m) |
1 (curl code type) |
Measurement Range |
0 to 25 Vol% |
Model No |

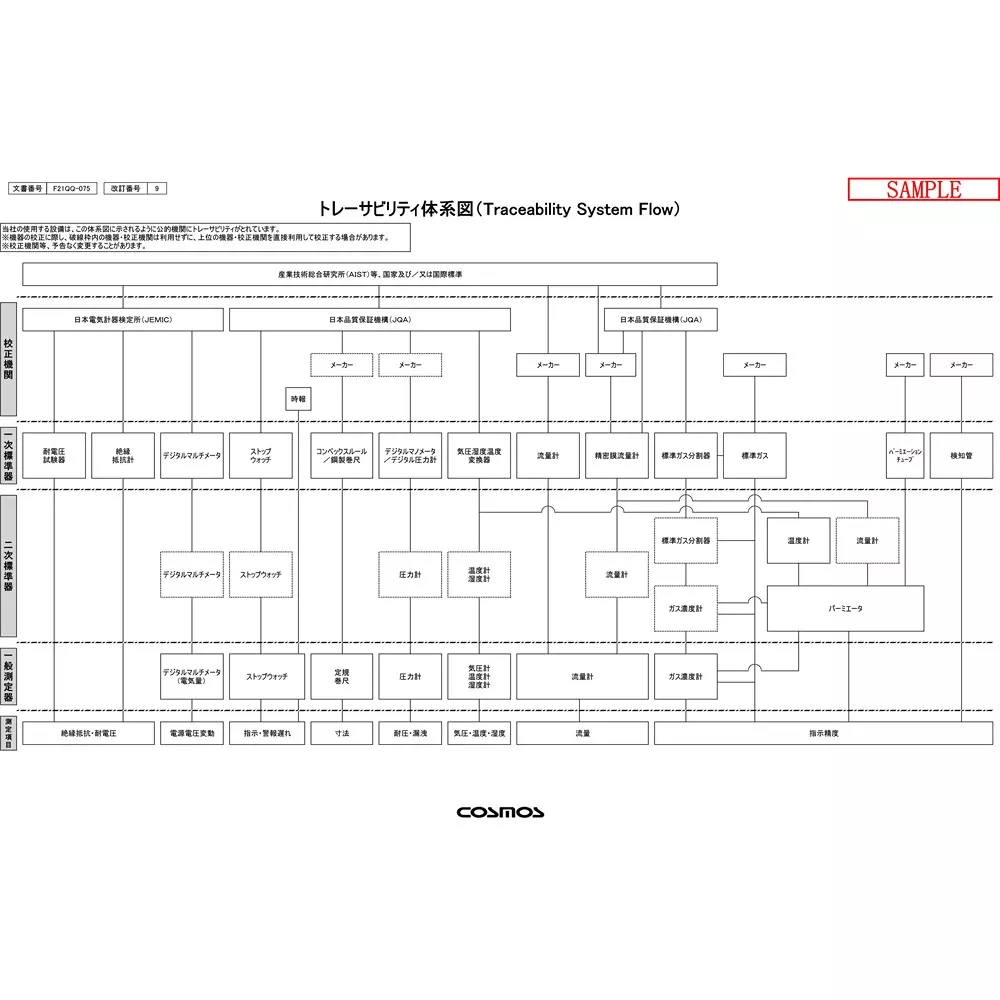

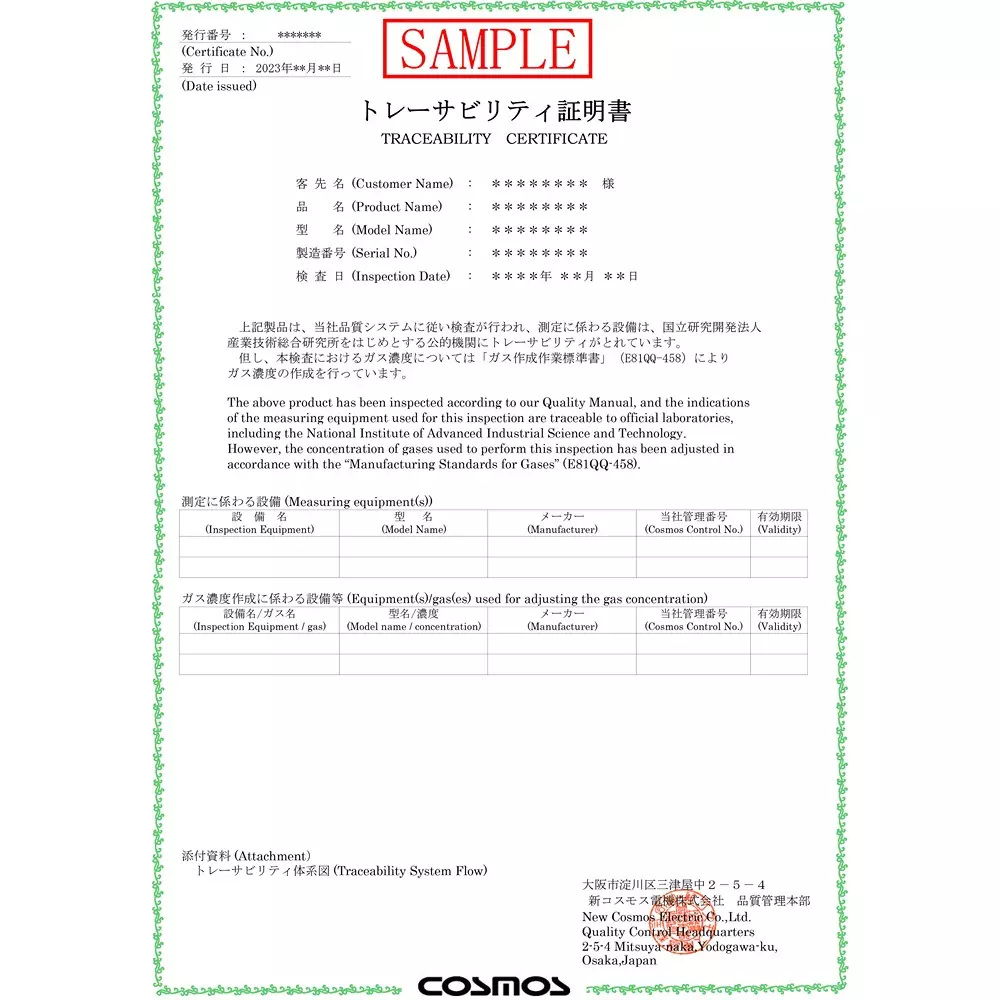

XO-326ⅡSB (with inspection report and traceability) |
Included Components |
Leather case, 2 AA alkaline batteries, filter element |
Monotaro ID |
20925715 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Shin-Cosmos Electric Co., Ltd. |
Mass (g) |
Approximately 265 (including leather case and batteries) |
Outer Dimensions, Width W x Height H x Depth D (mm) |
66x120x29 |
Indication Accuracy |
Within ± 0.5 vol% |
Detectable Gas |
Oxygen (O <sub>2</sub> ) |
Alarm |
(1st stage alarm) Long intermittent buzzer sound, LCD display blinking, alarm lamp blinking, vibration (Specification required) (2nd stage alarm) Short intermittent buzzer sound, LCD display blinking, Alarm lamp blinking, Vibration (Specification required) Air adjustment Impossibility, dead battery, device error: continuous sound, LCD display, flashing alarm lamp, vibration (specify required) |
Alarm Setting Value |
(1st stage) 19.5vol%, (2nd stage) 18.0vol% |
Principle |
Diaphragm galvanic cell type |
Response Time (seconds) |
Within 20 (90% response, ambient temperature 20 ± 2 ° C) |
Explosion-Proof Structure |
Exia IICT3 (intrinsically safe explosion-proof structure) * When a leather case is attached |
Operating Humidity Range |
30-85% RH or less (however, no condensation) |
Continuous Operating Time (hrs) |
Approximately 15,000 (20 ° C, no alarm, with backlight off) |
