Cosmos Data Collection Set IP67 equivalent Protection Class Buzzer ringing, red lamp blinking, vibration,, XA-4000ⅡL

Name: Cosmos Data Collection Set IP67 equivalent Protection Class Buzzer ringing, red lamp blinking, vibration,, XA-4000ⅡL
Brand: Cosmos
SKU: TES.MEA.946065877
Price: 51919 INR
Availability: InStock

Visit the Cosmos Store

EMI starts at ₹4613/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Country of Origin	Japan
Type of Product	Data Collection Set
Model No	XA-4000ⅡL

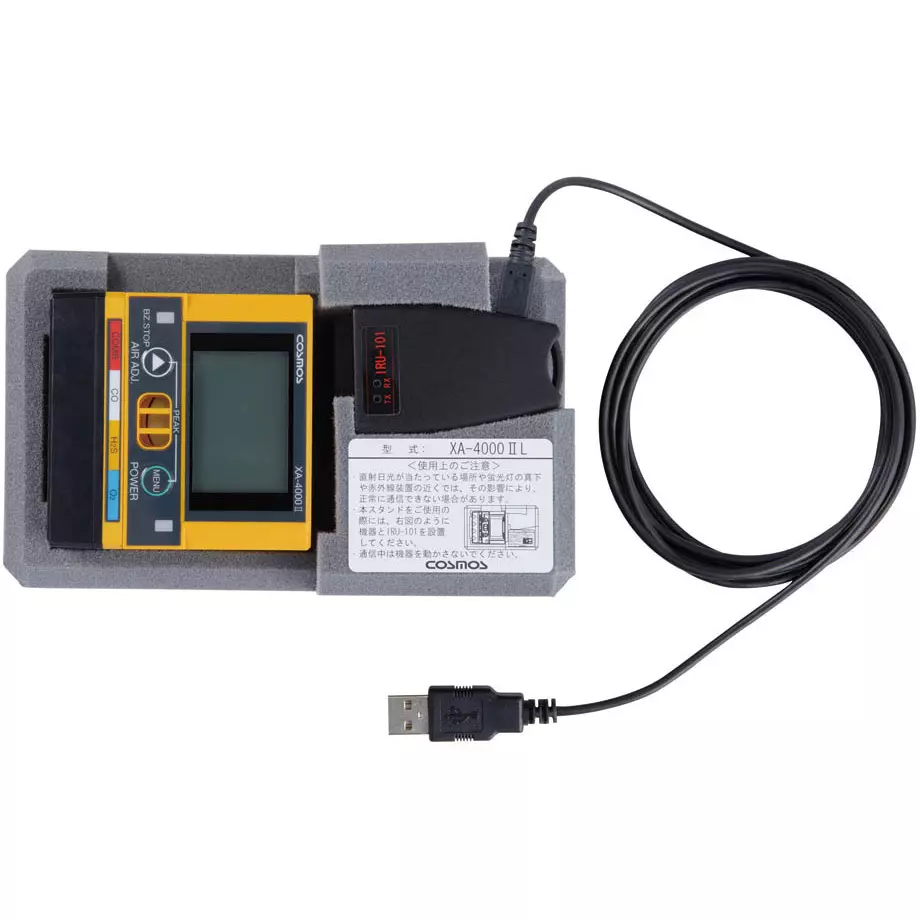

Included Components	Infrared adapter (IRU-101), USB cable (USB-A male to USB-mini-B), adapter stand, log data collection software CD (installation CD), XA-4000ⅡL instruction manual

More Cosmos Measuring Tool Accessories products More Measuring Tool Accessories products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Country of Origin	Japan
Type of Product	Data Collection Set
Model No	XA-4000ⅡL
Included Components	Infrared adapter (IRU-101), USB cable (USB-A male to USB-mini-B), adapter stand, log data collection software CD (installation CD), XA-4000ⅡL instruction manual
Monotaro ID	81534926
Protection Class	IP67 equivalent
Import Country	Direct Import from Japan
Name of Manufacturer/Packer/Importer	Shin-Cosmos Electric Co., Ltd.
Mass (g)	130 (excluding battery)
Detection Range	Flammable gases: 0–100% LEL, Oxygen: 0–25.0 vol%, Hydrogen sulfide: 0–30.0 ppm, Carbon monoxide: 0–300 ppm
Dimension (WxDxH)	70x72x26 mm (excluding protrusions)
Alarm	Buzzer ringing, red lamp blinking, vibration, LCD display (automatic recovery)
Alarm Setting Value	Flammable gas: (1st stage) 10% LEL (2nd stage) 30% LEL / Oxygen: (1st stage) 19.5 vol% (2nd stage) 18.0 vol%, Hydrogen sulfide: (1st stage) 10.0 ppm (2nd stage) 15.0 ppm / Carbon monoxide: (1st stage) 50 ppm (2nd stage) 150 ppm
Principle	Flammable gases: Catalytic combustion; Oxygen: Galvanic cell; Hydrogen sulfide and carbon monoxide: Potential-constant electrolysis.
Supported OS	Windows8.1, Windows10
Explosion-Proof Structure	Ex ia IIC T3 X (intrinsically safe explosion-proof structure)
Method	Gas extraction method: Diffusion type
Target Gas	Flammable gases (methane or isobutane), oxygen, hydrogen sulfide, carbon monoxide
Continuous Operating Time	Approximately 40 hours (with Long Life Mode ON) / Approximately 20 hours (with Long Life Mode OFF) / Approximately 1200 hours (for models without flammable gas detection), *at 25°C, no alarms, backlight off.
