Graphtec Multi-Channel Data Logger Voltage: 20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50 V, 100 V, 1-5 V/FS;, GL860

Name: Graphtec Multi-Channel Data Logger Voltage: 20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50 V, 100 V, 1-5 V/FS;, GL860
Brand: Graphtec
SKU: TES.MEA.146062065
Price: 188799 INR
Availability: InStock

Visit the Graphtec Store

EMI starts at ₹16775/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Country of Origin	Japan
Power Supply	Power source: AC adapter (AC 100-240V / 50-60Hz), DC input (DC 8.5-24V (option: B-514 required)), battery pack (DC 7.2V (2875mAh) up to two can be installed (*optional))
Display	7 inch TFT color LCD (WVGA: 800 x 480 dots)
Type of Product	Multi-Channel Data Logger

More Graphtec Measuring Tool Accessories products More Measuring Tool Accessories products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Country of Origin	Japan
Power Supply	Power source: AC adapter (AC 100-240V / 50-60Hz), DC input (DC 8.5-24V (option: B-514 required)), battery pack (DC 7.2V (2875mAh) up to two can be installed (*optional))
Display	7 inch TFT color LCD (WVGA: 800 x 480 dots)
Type of Product	Multi-Channel Data Logger
Function	Trigger/alarm function, calculation function, data saving function, data backup function, checksum function, recording function, scaling function, recording in progress function, Modbus compatible, communication function (USB, wired LAN, wireless LAN *Option B-568 required)
No. of Channels	20ch to 200ch
Measurement Range	Voltage: 20, 50, 100, 200, 500mV, 1, 2, 5, 10, 20, 50V, 100V, 1-5V/FS; Temperature: Thermocouple (K, J, E, T, R, S, B, N, C (old W: WRe5-26)); Resistance thermometer (Pt100, JPt100, Pt1000 (IEC751) (Temperature range: 100°C, 500°C, 2000°C); Humidity: 0 to 100% (requires dedicated humidity sensor B-530)
Model No	GL860
Monotaro ID	7702165
RoHS Directive	Correspondence
Dimension (mm)	When B-563 is installed (240 x 158 x 52.5 (protrusions not included)), when B-565 is installed (240 x 166 x 52.5 (protrusions not included)), when screwless terminal is installed (240 x 158 x 52.5 (protrusions not included))
Import Country	Direct Import from Japan
Memory	Main unit: (Built-in) Approximately 8GB, (Data storage format) GBD, CSV
Name of Manufacturer/Packer/Importer	Graphtec
Mass (g)	1010 when B-563 is installed, 1035 when B-565 is installed, 1010 when screwless terminal is installed
Operating Ambient Temperature	0 to 45℃ (0 to 40℃ when battery operated / 15 to 35 when charging)
Specifications	Input channels: 20 to 200 analog input channels by combining terminals selectable from four types
Calibration Certificate	General calibration
External Output	Alarm output (4ch)<br> Output format: Open collector output (5V pull-up resistor 10kΩ)
Display Items	Analog waveform, past data display during measurement, digital value, split display, alarm history
Sampling	5ms to 1h (5 to 50ms is voltage only, channel restrictions apply depending on sampling period)
Operating Humidity (％)	5 to 85RH
External Input	Trigger input (1ch) or external sampling input (1ch), logic input (4ch) or pulse input (4ch)<br> Input voltage range: 0 to +24V (single-wire grounded input)<br> Input signal: Non-voltage contact (a contact, b contact, NO, NC), open collector, voltage input

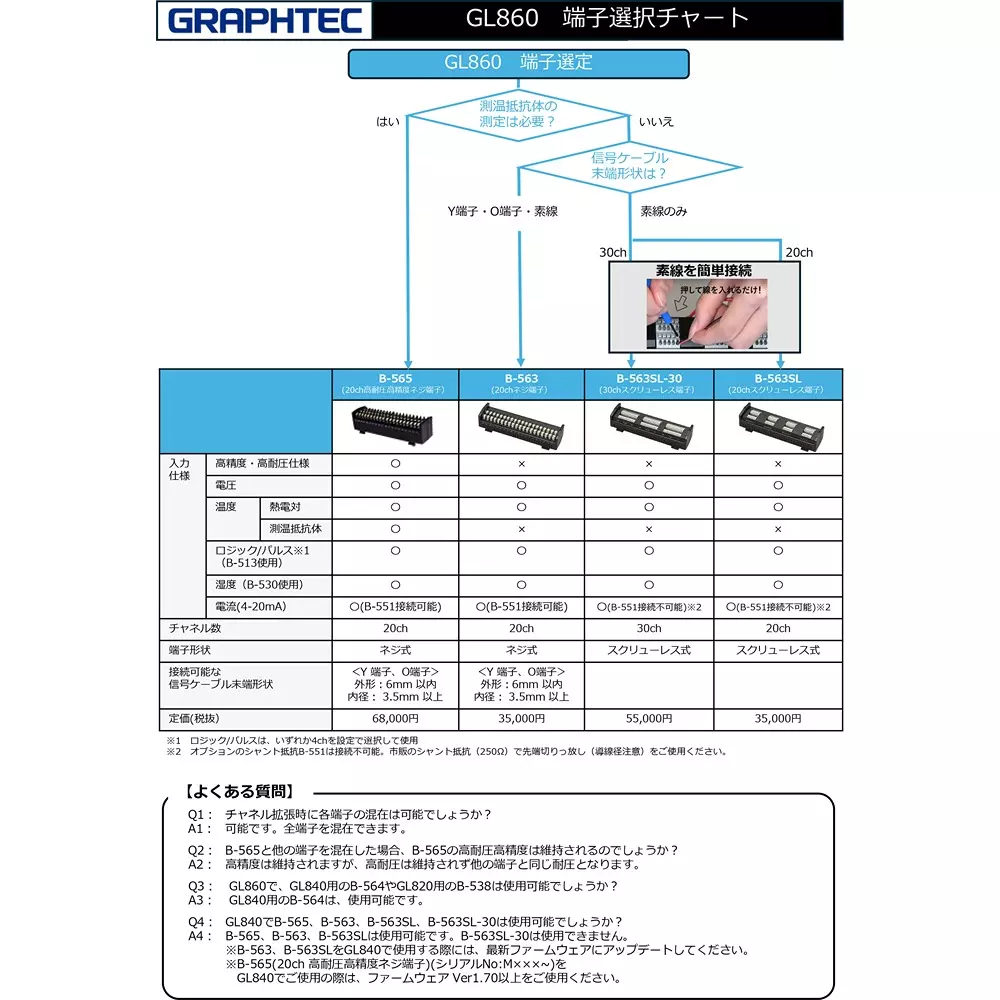

Analog Input	M3 screw terminal (B-563/B-565), screwless terminal (B-563SL/B-563SL-30)
Power Consumption (VA)	38VA or less (AC adapter used, LCD on, battery pack charging, AC100V)
