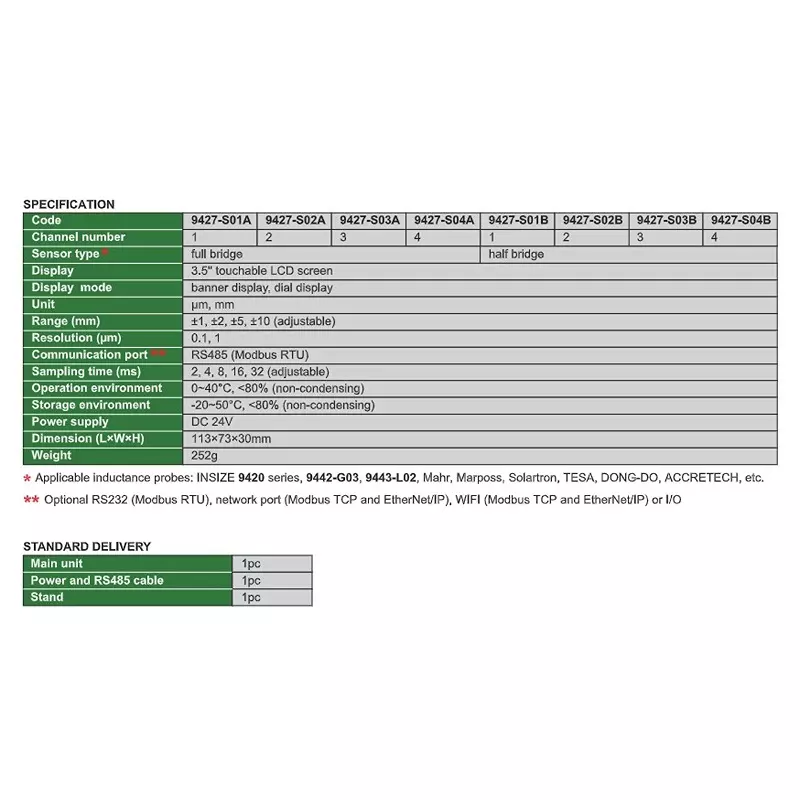

| Country of Origin | China |
| Display Type | 3.5 inch (88.9 mm) Touchable LCD Screen |
| Operating Humidity | <80% RH (Non-Condensing) |
| Power Supply | 24 V DC |
Country of Origin |
China |
Display Type |
3.5 inch (88.9 mm) Touchable LCD Screen |
Operating Humidity |
<80% RH (Non-Condensing) |
Power Supply |
24 V DC |
Operating Temperature |
0-40°C |
Storage Temperature |
-20°C to 50°C |

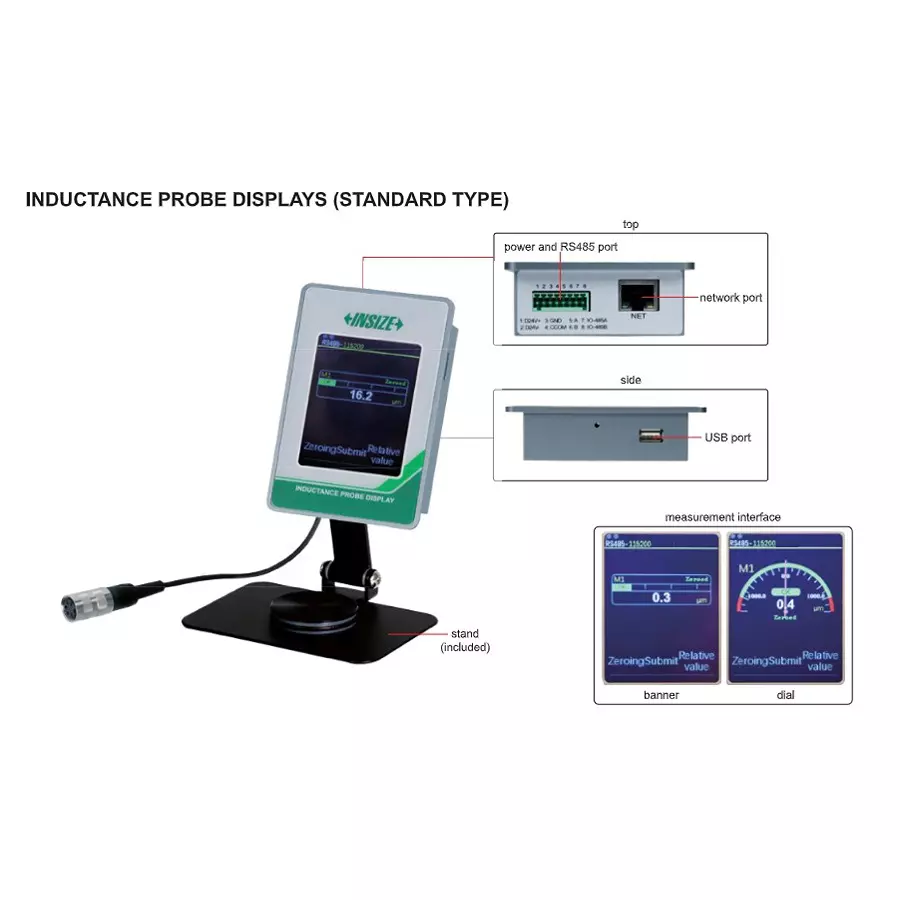

Type of Product |
Inductance Probe Display |
Weight |
252 g |
Range |
±1, ±2, ±5, ±10 mm (Adjustable) |
Resolution |
0.1, 1 µm |
Dimension |
113x73x30 mm |
Model No |
9427-S04B |
Type |
Standard |
Package Contains |
1 x Main Unit, 1 x Power & RS485 Cable, 1 x Stand |
Name of Manufacturer/Packer/Importer |
INSZIE |
Sensor Type |
Half Bridge |
Channel |
4 |
Units |
μm, mm |
Storage |
Up to 10 measurement programmes |
Display Mode |
Banner Display, Dial Display |
Communication Ports |
RS485 (Modbus RTU) |
Sampling time |
2, 4, 8, 16, 32 (Adjustable) |
In-built |
High Performance AD Chip |
