Ships within 19 days
View
View
View
View
| Country of Origin | Japan |
| Type of Product | Joint |
| Model No | FJ10-233 |
| Monotaro ID | 8160573 |
Country of Origin |
Japan |
Type of Product |
Joint |
Model No |
FJ10-233 |
Monotaro ID |
8160573 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Nagano Keiki Co., Ltd. |
Mass (g) |
About 100 |
Fluid Temperature |
-5 to 80℃ (however, without freezing) |
Maximum Operating Pressure (MPa) |
100 |
Wetted Material |
Made of stainless steel (SUS316) |

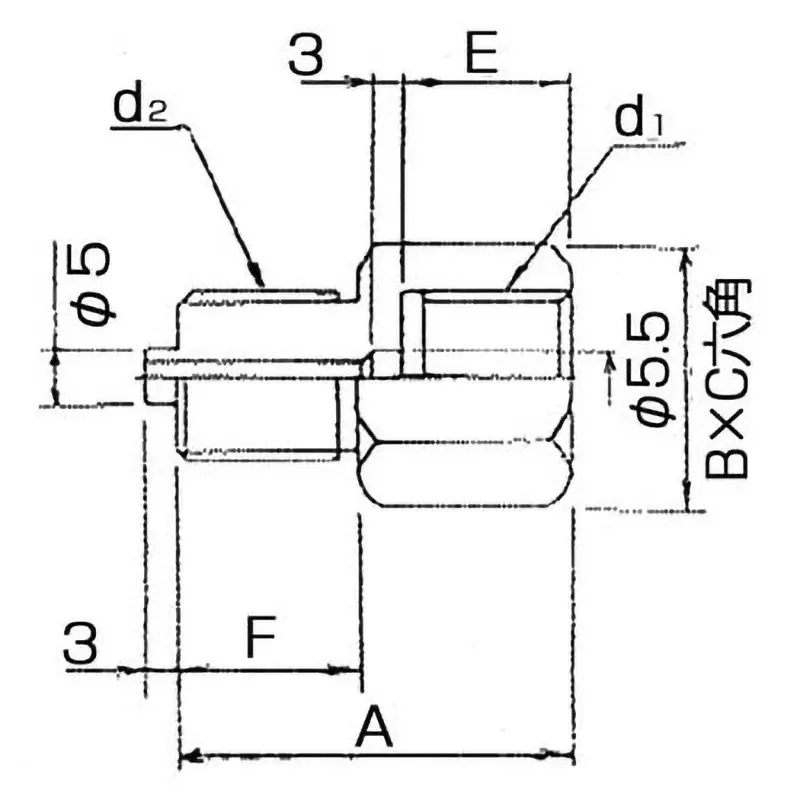

Dimension E |
14 mm |
Dimension F (Φmm) |
18 |
Dimension A (Φmm) |
36 |
Dimensions B X D X L(mm) |
19x21.9 |
Connecting Thread |
G1/4 (Female thread) |
Maximum Operating Pressure (MPa [kgf/cm²]) |
100[1000] |
Mounting Screw (D2) |
G3 / 8B (male screw) |
Withstand Pressure (MPa) |
150[1500] |
