| Country of Origin | Japan |
| Material | 5-10%: Thermochromic plastic / 90-95% Polypropylene / UL94V0 self-extinguishing rated flame retardant, non-halogen |
| Type of Product | Thermoclip |
| Rated Voltage | (kVAC/VDC)36/600 |
Country of Origin |
Japan |
Material |
5-10%: Thermochromic plastic / 90-95% Polypropylene / UL94V0 self-extinguishing rated flame retardant, non-halogen |

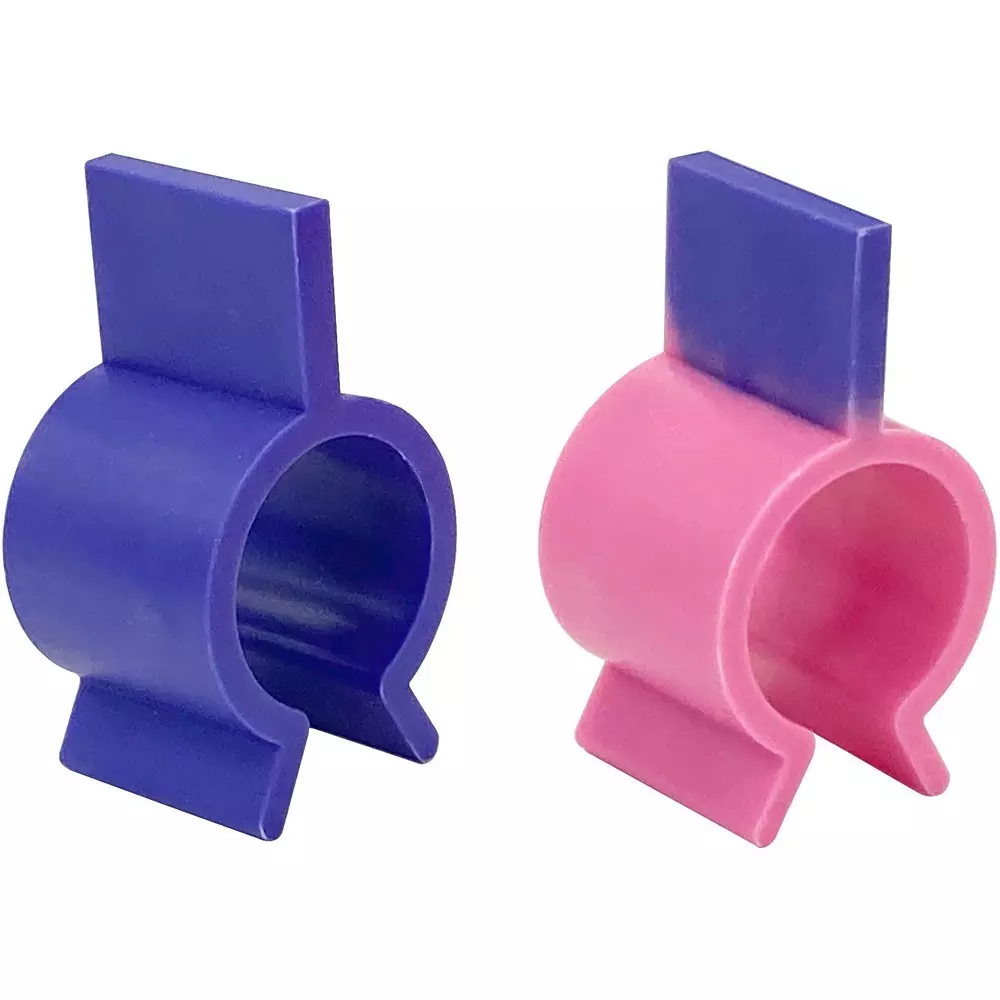

Type of Product |
Thermoclip |
Rated Voltage |
(kVAC/VDC)36/600 |
Dielectric Strength |
(Kv Per mm)44 |
Model No |
H3-25 |
Monotaro ID |
6347866 |
Response Speed |
5-20 seconds |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Nisshinbo Giken Kogyo Co., Ltd. |
Discoloration Temperature |
[Irreversible] 70℃ |
Temperature (℃) |
[Discoloration begins] 53 |
Storage Environment |
16 to 27℃(40 to 60%RH) |
Cable specifications |
4-2/0AWG |
Temperature error |
±1℃ |
Applicable Wire Diameter (Φmm) |
(including coating) 8.0-13.6 |
Recommended Timing to Replace |
5 years |
