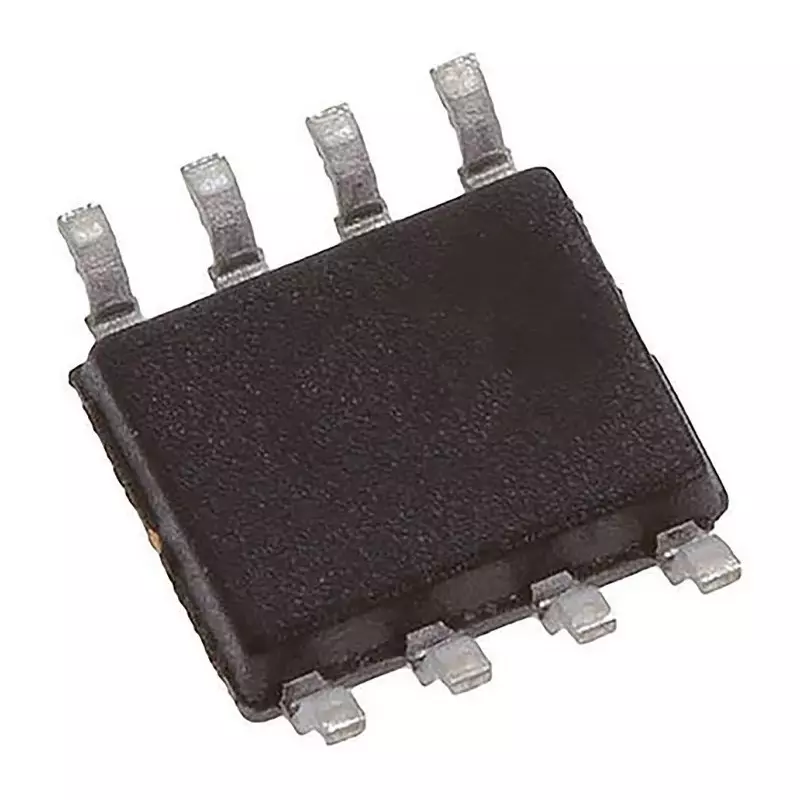

| Type of Product | FRAM Memory |
| Dimension | 4.97x3.98x1.48 mm |
| Width | 3.98 mm |
| Height | 1.48 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
FRAM Memory |
Dimension |
4.97x3.98x1.48 mm |
Width |
3.98 mm |
Height |
1.48 mm |
Maximum Operating Temperature |
+85°C |
Memory Size |
16kbit |
Country of Origin |
United Kingdom |
Name of Manufacturer/Packer/Importer |
Infineon |
Manufacturer Part Number |
FM24CL16B-G |
Product Code |
1254212 |
Organisation |
2Kx8 bit |
Data Bus Width |
8bit |
Maximum Operating Supply Voltage |
3.65 V |
Number of Bits per Word |
8bit |
Length |
4.97 mm |
Number of Words |
2K |
Maximum Random Access Time |
3000 ns |
Minimum Operating Supply Voltage |
2.7 V |
Package Type |
SOIC |
Mounting Type |
Surface Mount |
Minimum Operating Temperature |
-40°C |
Pin Count |
8 |
Interface Type |
Serial-2 Wire, Serial-I2C |
Automotive Standard |
AEC-Q100 |
