| Mass (g) | About 0.8 |
| Actuator Type | Pin Push Button |
| Contact Material | Double-sided sliding Au-plated contacts |
| Monotaro ID | 48335656 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Mass (g) |
About 0.8 |
Actuator Type |
Pin Push Button |
Contact Material |
Double-sided sliding Au-plated contacts |
Monotaro ID |
48335656 |
Operating Force (N) |
(Maximum) 1.5 |

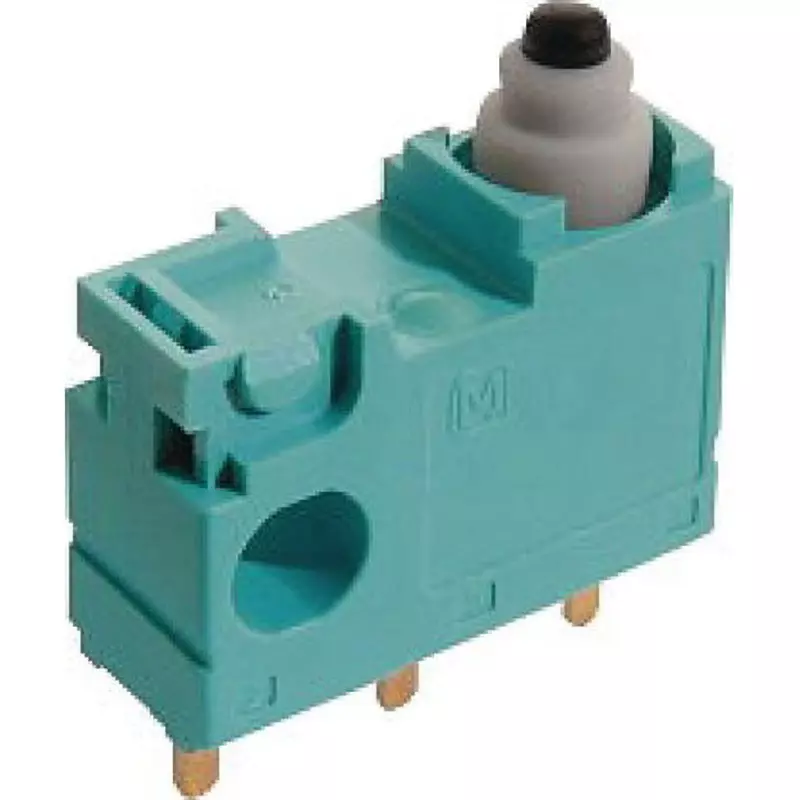

Type of Product |
Micro Switch |
Contact Type |
Switching Type |
Model No |
ASQ10710 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Protection Class |
IP67 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Over travel |
(Minimum) NC2.5 mm, NO2.2 mm |
Mounting |
Mounting hole size: 3 mm |
Contact Resistance (ohm) |
1000 Or Less (Dc 6 To 8V 0.1A Voltage Drop Method) |
Insulation Resistance (MOhm) |
over 100 |
Rated Resistance Load Current (A) |
DC5 V：0.001, DC30V：0.1 |
Operation Ambient Temperature (°C) |
-40-85 |
Terminal Shape |
Pc Board Right Angle Terminal |
Maximum switching frequency (times / minute) |
120 |
Rated Primary Current (A) |
0.001-0.1 |
Mounting Hole (mm) |
3 Standard |
Operating position OP (mm) |
From the center line of the mounting boss/hole: NC8.7±0.3, NO8.4±0.3, From the standoff: NC12.9±0.3, NO12.6±0.3 |
Mounting Screw Spacing (mm) |
M3：8.3 |
Electrical Life |
Over 500,000 times DC5V1mA (resistive load) |
