| Type of Product | 526 Series Small Bore Cylinder Gauge |
| Model No | CG-10A |
| Series | 526 |
| Country of Origin | Japan |
Type of Product |
526 Series Small Bore Cylinder Gauge |
Model No |
CG-10A |
Series |
526 |
Country of Origin |
Japan |
Monotaro ID |
1997152 |
RoHS Directive |
Correspondence |
Repeatability (μm) |
2 |
Wide Range Accuracy (μm) |
4 |
Included Components |
Spanner (No.102148) |
Probe |
6 |
Trusco Part No. |
108-7568 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Measuring_Range |
7 to 10 mm |
Specifications |
, Set ring: Not included ■Recommended dial gauges, digital indicators, No.2046AB (graduation 0.01 mm, measurement range 10 mm), No.2972AB (less than one turn, graduation 0.01 mm, measurement range 1 mm), No.2109AB-10 (graduation 0.001 mm, measurement range 1 mm, No.2900AB-10 (less than one turn, graduation 0.001 mm, measurement range 0.08 mm), No.543-310B, ID-C112GXB ABS digital indicator for cylinder gauges (minimum display amount 0.001 mm) *Indicators with rubber bellows, such as waterproof types, cannot be used. |
Product Code |
526-101 |
Adaptive Accessories |
, Dial gauge, Protective cover: No.21DZA000 |

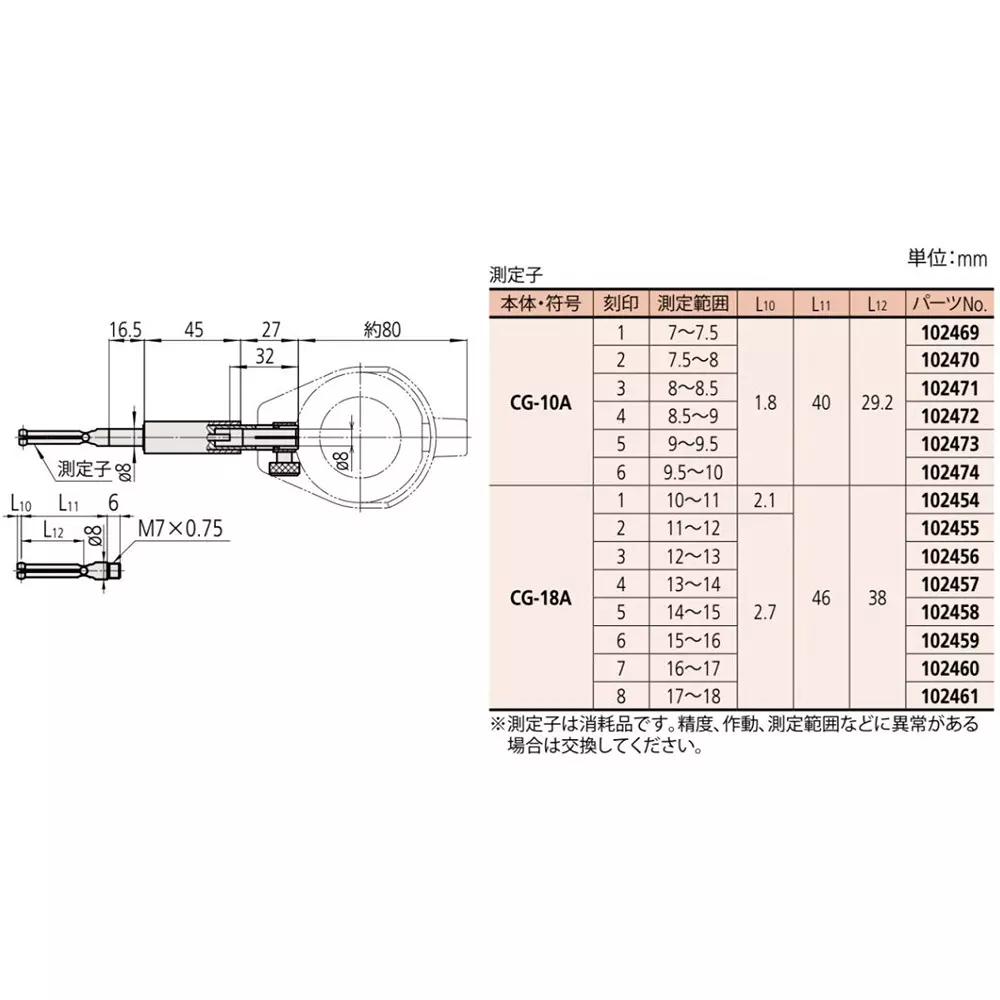

Dimension L11 |
40 mm |
Dimension L10 |
1.8 mm |
Dimension L12 |
29.2 mm |
