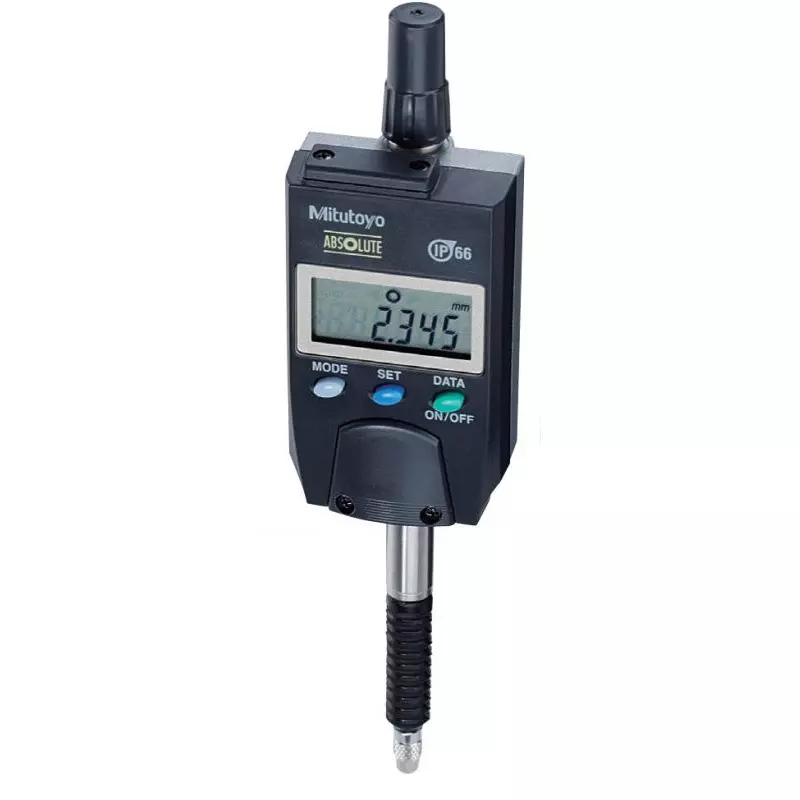

| Type of Product | ABS Digimatic Indicator |
| Model No | ID-N112 |
| Series | 543 |
| Country of Origin | Japan |
Type of Product |
ABS Digimatic Indicator |
Model No |
ID-N112 |
Series |
543 |
Country of Origin |
Japan |
Monotaro ID |
36931133 |
Measuring Force (N) |
2.5 or less |
Minimum Reading (mm) |
0.001/0.01 mm (Switchable) |
Type |
Slim shape |
Position Detection Method |
Capacitive Absolute Encoder |
Function |
Zero set function (INC measurement system origin setting), preset function (ABS measurement system origin setting), direction switching function, tolerance judgment function, display inversion function (0°, 180°), minimum display switching function, data output function (when connection cable is connected), display value hold function (when connection cable is not connected), low battery voltage warning display, error warning display |
Power Supply |
1 Button-Type Silver Oxide Battery SR44 (No. 938882) [1 Monitor Battery Included As Standard] |
Protection Class |
IP66 |
Data Output |
Digimatic |
Trusco Part No. |
311-1733 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Measuring_Range |
12.7 mm |
Specifications |
With measurement data output terminal |
Mass (g) |
130 |
Maximum Response Speed |
Unlimited (not applicable to copying measurement) |
Battery Life (hours) |
Approx. 7000 (continuous use) |
Back Plate Specification |
With ear metal |
Outer Frame Diameter (mm) |
66 |
Mounting diameter (Φmm) |
(Shaft diameter) 8 |
